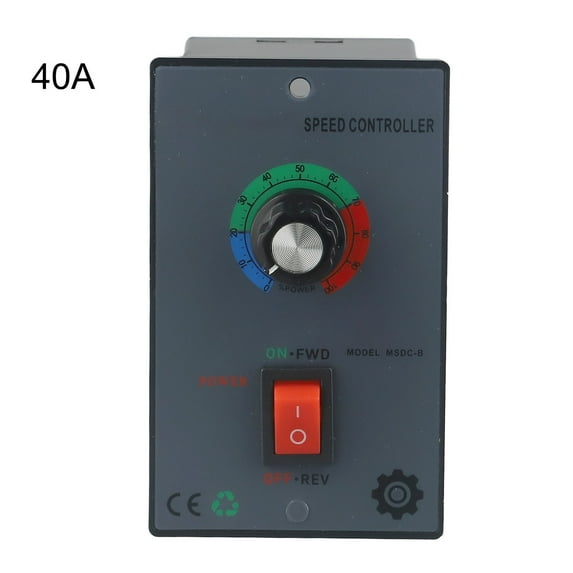

RANMEI Msdc-B Brushed Dc Motor Speed Controller 10A-40A For 775 795 Dc Gear Motor

Feature:
MSDC-B DC speed regulator is divided into 10A, 20A, 30A, and 40A (Note: the maximum input voltage and output voltage of 30A and 40A are DC36V).
The product uses pulse width control frequency to achieve the speed of DC brushed motor.
Note that when inputting power, the positive and negative power must be connected correctly, otherwise the speed regulator will burn out. "+" represents the positive pole, and "-" represents the negative pole. The DC power supply range of 10A/20A DC speed regulator is: DC12-60V, and the DC power supply range of 30A/40A DC speed regulator is: DC12-36V.
DC brushed motors are not divided into positive and negative, and the forward and reverse rotation of the motor can be achieved by switching two lines.
Applicable matching motors: 550 775795 895 and DC brushed motors connected with two lines, DC reduction motors.

Specification:
Product Name: Brushed DC Motor Speed Controller
Model: MSDC-B
Color:as show
Material: Plastic
Current: 10A, 20A, 30A, 40A
Working voltage: DC12V-60 (10A/20A), DC12V-36 (30A/40A)
Power frequency: 15KHz
Output power: 60-200 (10A), 60-400 (20A), 60-500 (30A), 60-700 (40A)
Size：The actual product shall prevail

Package content:
1*Brushed DC Motor Speed Controller


Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
