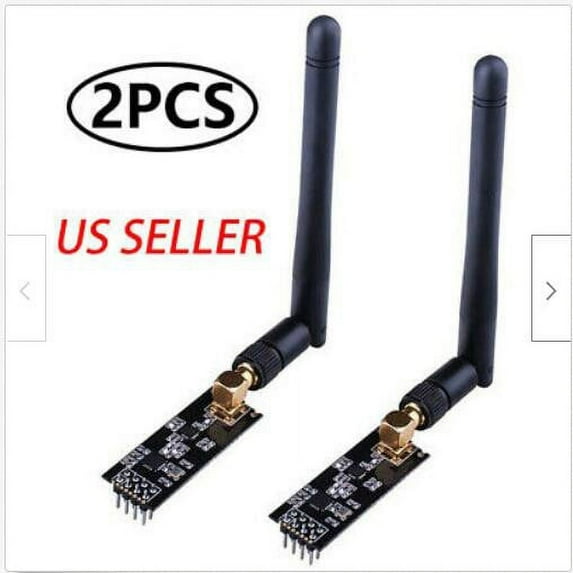

Sufanic Nrf24L01+ Pa Lna Sma Antenna 2.4Ghz Wireless Transceiver For Arduino Compatible

Features:

brand new and high quality
Made of high-quality materials, durable
NRF24L01 is a 2.4GHz ISM band transceiver. The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator and enhanced ShockBurst protocol engine
The host microcontroller can communicate and configure the nRF24L01+ through the 4-pin serial peripheral interface (SPI). The configuration registers can be accessed through an SPI connection.
Configurable parameters include frequency channel (125 optional channels), output power and data rate (data rate: 250kbps, 1Mbps and 2Mbps)
The module has a 5V withstand voltage input and can connect the SPI pin directly to the For Arduino
Internal filtering can meet RF regulatory standards. The radio of this module uses Gaussian Frequency Shift Keying (GFSK) modulation and fast automatic gain control (AGC)


Product parameters:

Color: as shown
Type: NRF24l01 +
Frequency: 2.4GHz~2.5GHz
Working voltage: 3V-3.6V (3.3V recommended)
Current: 115mA
Multi-frequency: 125 frequency
Support up to six channels of data reception
Wiring information:
VIN is connected to the positive input
OUT is connected to the positive output
GND is connected to the negative input/output


Package Included:

2 *NRF24L01 + PA + LNA wireless transceiver module
2 *SMA antenna

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
