Yokua Plasma-Cutter Electrode Nozzle Tips for CUT-40 LGK-40 Cutting Torch Consumables

Features:
Made of high-quality materials for durability. The nozzle and electrode are made of red-copper, which is resistant to high-temperature and wear and is durable.
The swirl-rings and shield-cups are made of ceramic-material, which is heat-resistant, corrosion-resistant and highly-rigid.
The nozzle has smooth incision, narrow-slit, small thermal deformation and easy slag cleaning.
The pilot-electrode on the plasma-cutter is to assist arc-ignition. The shield-cup is used to protect the plasma-torch.
Easy and flexible operation, easy replacement of old or damaged-parts, ensuring-optimum cutting quality and reliability.

Specifications:
Material:Red-Copper, Ceramics
Electrode: 39mm x 8mmx3.5mm/1.54 "x 0.31" x 0.14 "(length x maximum diameter x minimum diameter)
Nozzle: 15.7mm x 11.6mm x 7.5mm/0.62 "x 0.46" x 0.30 "(length x maximum diameter x minimum diameter).
Cup guard: 29.7mm x 22.7mm x 17.3mm/1.17 "x 0.89" x 0.68 (length x maximum diameter x minimum diameter).
Vortex-ring: 7mm x 5mm/0.28 "x 0.2" (length x height).
Suitable for plasma-cutting machines such as CUT-40, LGK-40 and PT-31.

Note:
①.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
②.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Thanks for your understandings.

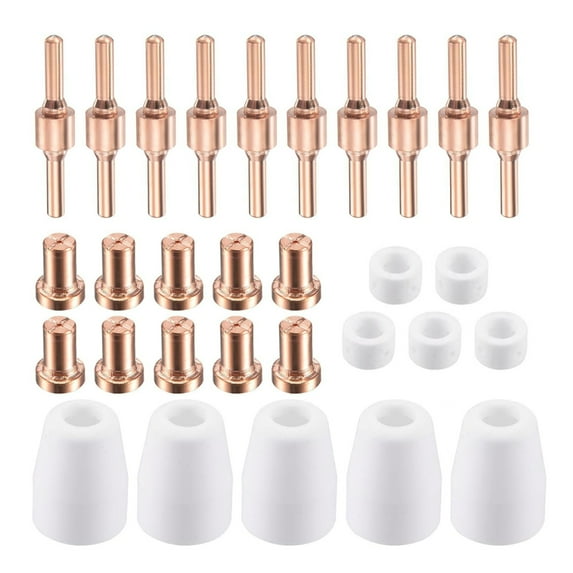

Package includes:
10pcs Electrodes
10pcs Nozzles
5pcs Shield-Cup
5pcs Vortex-Rings
