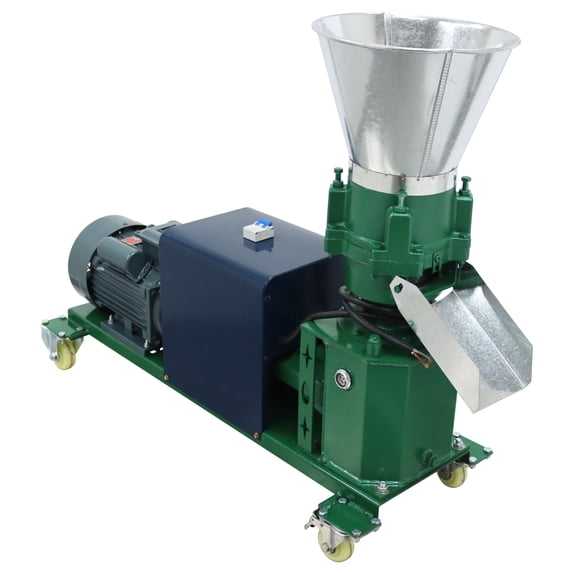

Animal Feed Pellet Machine Making Feeds Pelletizer 4 Roller Feed Granulator 2MM 220V
(No ratings yet)
Key item features
- Small feed granulator, also known as small household feed granulator, is based on the principle of circular motion.
- The template and pressure roller are made of high-quality chrome-manganese titanium and are specially treated.
- This product model is a new energy-saving product. In the past, the feed was usually processed into powder and then fed, which had some defects such as inconvenient feeding, poor palatability, picky eating of livestock, and low utilization rate.
- With the advent and popularization of new small pellet feed machinery, powder feed can be easily processed into pellet feed.
- Its structure is simple, the floor area is small, the noise is low, and it has many advantages after processing into pellet feed.
Specs
- BrandTechtongda
- Electrical phaseSingle Phase
- Dimensions39.20 x 14.56 x 33.80 in
- Volts220 V
- Weight206.8 lb
- Watts4.5 kW
More seller options (1)
Starting from $1,244.54
About this item
Product details
Product overview:
Feed granulator is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms, individual farmers, small and medium-sized farms and large, medium and small feed processing plants.
This machine can be used alone, and customers who need it can also match it with a straw cutter for better results.
Parameter:
Pressure plate: 2MM
Output/h: Maximum output 200KG (ideal state)
Power: 4.5KW
Voltage: 220V Single-phase electricity
Product body material: Cast iron
Standard pressure roller: Four-head press roller
Product size: 39.2*14.56*33.8in (99.5*37*86cm)
Attention
1. Do not touch the running parts during operation. Do not put the hands into the machine.
2. Before using the machine, it is necessary to adjust the screw of the pressure roller to the appropriate position. The pressure roller and the pressure plate should be closely combined, and the four adjusting screws should be on the same horizontal plane.
3. Please refuel the fuel tank before using the machine. The machine should not idle for more than 2 minutes.
4. Double-check the belt and the screws before operation.
5. Clean up the rest after use to prevent damage to the machine.
6. If the pressure roller cannot rotate normally, please tighten the screws that control the pressure roller first, and then try to power it on. If it still does not work, you can appropriately loosen the screws next to the pressure roller and then tighten them slightly again (without special tightening).
Note:
We suggest that high-power machines should be directly connected to the main power supply, as the voltage reaching the machine is stable. If the voltage is unstable and the current exceeds the rated current of the motor, it is easy to burn out the starting capacitor.
It is recommended to directly connect to the power supply as much as possible. If the machine is not connected to the power supply, different situations may occur, and the wires are not durable. The wires will gradually burn out over time.
Our machine is not equipped with a plug. If you do not know how to operate the wiring video, you can contact our customer service and we will provide you with the wiring video. (If there are occasional situations with plugs, it is also recommended that you remove the plugs when wiring)
Usage and specification:
1: It applies to chicken industry.
2: Corn particles can be put into the machine directly. The feed processed by the machine is smooth and has moderate hardness. The temperature change during the process is slight so the nutrition can be kept very well.
3: The actual diameter of the holes can be divided into: Φ2, Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12.
4: The microorganism and parasite can be killed in the process of extrusion.
Item Number(239257):
Techtongda Chicken Feed Pellet Mill Machine 2mm Plate 220V
Feed granulator is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms, individual farmers, small and medium-sized farms and large, medium and small feed processing plants.
This machine can be used alone, and customers who need it can also match it with a straw cutter for better results.
Parameter:
Pressure plate: 2MM
Output/h: Maximum output 200KG (ideal state)
Power: 4.5KW
Voltage: 220V Single-phase electricity
Product body material: Cast iron
Standard pressure roller: Four-head press roller
Product size: 39.2*14.56*33.8in (99.5*37*86cm)
Attention
1. Do not touch the running parts during operation. Do not put the hands into the machine.
2. Before using the machine, it is necessary to adjust the screw of the pressure roller to the appropriate position. The pressure roller and the pressure plate should be closely combined, and the four adjusting screws should be on the same horizontal plane.
3. Please refuel the fuel tank before using the machine. The machine should not idle for more than 2 minutes.
4. Double-check the belt and the screws before operation.
5. Clean up the rest after use to prevent damage to the machine.
6. If the pressure roller cannot rotate normally, please tighten the screws that control the pressure roller first, and then try to power it on. If it still does not work, you can appropriately loosen the screws next to the pressure roller and then tighten them slightly again (without special tightening).
Note:
We suggest that high-power machines should be directly connected to the main power supply, as the voltage reaching the machine is stable. If the voltage is unstable and the current exceeds the rated current of the motor, it is easy to burn out the starting capacitor.
It is recommended to directly connect to the power supply as much as possible. If the machine is not connected to the power supply, different situations may occur, and the wires are not durable. The wires will gradually burn out over time.
Our machine is not equipped with a plug. If you do not know how to operate the wiring video, you can contact our customer service and we will provide you with the wiring video. (If there are occasional situations with plugs, it is also recommended that you remove the plugs when wiring)
Usage and specification:
1: It applies to chicken industry.
2: Corn particles can be put into the machine directly. The feed processed by the machine is smooth and has moderate hardness. The temperature change during the process is slight so the nutrition can be kept very well.
3: The actual diameter of the holes can be divided into: Φ2, Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12.
4: The microorganism and parasite can be killed in the process of extrusion.
Item Number(239257):
Techtongda Chicken Feed Pellet Mill Machine 2mm Plate 220V
- Small feed granulator, also known as small household feed granulator, is based on the principle of circular motion.
- The template and pressure roller are made of high-quality chrome-manganese titanium and are specially treated.
- This product model is a new energy-saving product. In the past, the feed was usually processed into powder and then fed, which had some defects such as inconvenient feeding, poor palatability, picky eating of livestock, and low utilization rate.
- With the advent and popularization of new small pellet feed machinery, powder feed can be easily processed into pellet feed.
- Its structure is simple, the floor area is small, the noise is low, and it has many advantages after processing into pellet feed.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
Techtongda
Electrical phase
Single Phase
Dimensions
39.20 x 14.56 x 33.80 in
Volts
220 V
Warranty
Warranty information
It is refundable within one month after delivery and accessories are provided free of charge. 6 months' warranty for the machine, not for the consumables.We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. We do not bear the return freight for returns other than product quality.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
