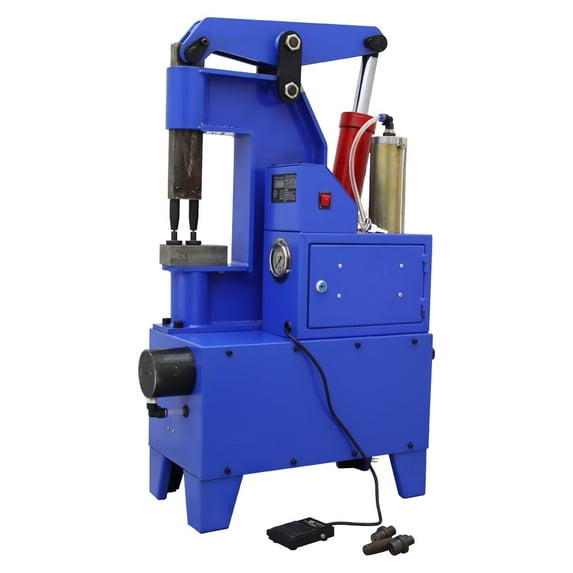

Electric Riveting Machine Pneumatic Brake Shoe Lining Riveting Machine Double-head 220V

Description:
This machine is mainly used for riveting truck brake shoe rivet. When the friction material above the brake shoe needs to be replaced with new friction material, the rivets can be riveted directly with this machine.
This machine has two riveting heads and can rivet two rivets at one time. Two riveting heads can be disassembled at will, can meet different needs, very convenient.
This machine is suitable for all types of truck brake shoes, rivet diameter range from 6-10mm.
Suitable for truck brake shoe diameter 320-430mm,430-560mm.
Not limited to truck brands.

Parameters:
Power supply: 220V
Working stroke: 5.9inch (150 mm)
Pressure: 5mpa- 10mpa
Motor power: 1.5kw
Minimum machining rivet diameter: 0.23inch (6mm)
Maximum machining rivet diameter: 0.39inch (10 mm)
Weight: 183lbs (83kg)
The machine comes with 3 punches and 4 rivet heads.

Note: This machine has no plug and needs to be connected to the air switch for use by the customer.

Item included(239654):
Techtongda Double Head Electric riveting machine 220V
