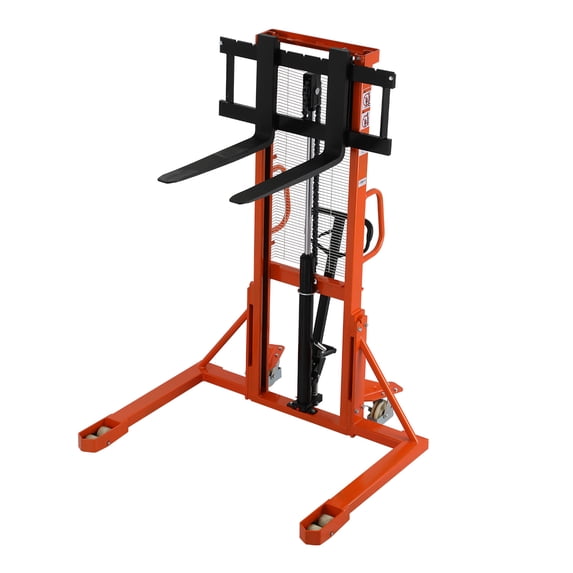

Tory Carrier 1PC 2200lbs Hydraulic Manual Hand Straddle Stacker Walkie Forklifts 63" Lift

Tory Carrier hand lift stacker with all steel structure provides added durability and support during transport. It can lift loads up to a maximum weight of 2200lbs as high as 63". These manual lift straddle stackers have a foot pedal and hand controlled lifting function that operators use to activate the stackers' lifting mechanism without extreme body movements. The manual straddle stacker is suitable for workshop, supermarket, warehouse.

Manual lift pallet stackers have their outrigger legs positioned directly underneath their forks. The single fork size is 31.5"x3.9"x1.2". The hand lift stacker with adjustable forks and straddle legs is great for handling various sized pallets. The adjustable fork width range from 7.9" to 37.4''.

Service Weight: 2200lbs
Overall Width: 58.1"
Overall Length: 53.1"
Load Center: 19.7"
Recommended Aisle Width: 81.6"
Turning radius: 48.6"

Inner legs width: 49.2"
Single Fork Size: 31.5"x3.9"x1.2"
Adjustable Fork Width: 7.9"-37.4"
Fork Lowered Height: 2.8"

Max. Lifting Height:63"
Mast Lowered Height:81.5"
Mast Extended Height: 82.9"
Note Before Shipping:

The product is so large that we ship it via logistics company. To ensure the shipment timely and properly, before shipping, we need to know:

1. Address Type (commercial? Or residential?)
2. Delivery Status ( Self unload / Need forklift or lift gate/ With loading dock)
3. If the phone number is correct? (Yes or no?)

Your time and help is great support for us.

Please Note:
Do not sign for any broken or damaged item. Instead, contact the logistics company and we will file a claim against the logistics company.
