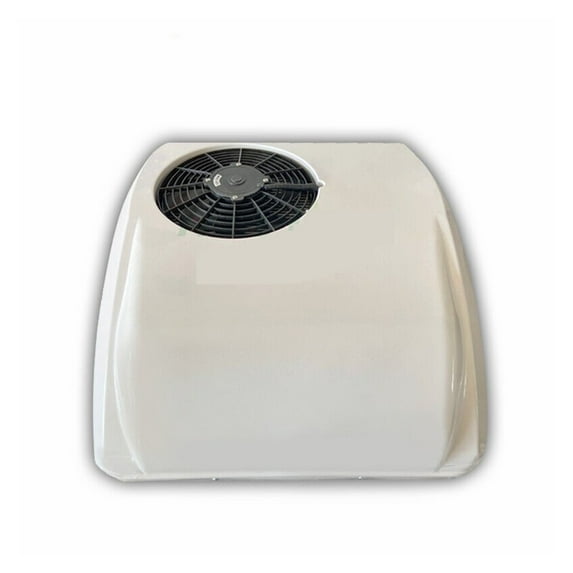

RV Roof Air Conditioner 48V Heat And Cool Electric Car Rooftop Parking Ac For Truck Camper Van Caravans Motor Home ,Low Energy Consumption

About this item

Cooling & Heating IntegratedTo solve the problem that the only cooling air conditioner can't satisfy using in winter, We release this air conditioner Hot & Cooling Integrated.

ParametersCooling Air volume is about 2300 W ; Heat Air Volume is 1000W; Power Consumption 960W, Rated Current 30-70A; Host Size: 666 *720 * 160 mm, Refrigerant R134A

NoteWindow size: minimum 300mm * 170mm, maximum 590 * 490mm ,Please check the size before shop it.

ApplicableNew energy electric air conditioning is suitable for truck , caravan , cranespassenger , excavator , motor home , RV , agricultural machine , etc

Specification:

Voltage:12V

Cooling Air volume:about 2300 W ;

Heat Air Volume:1000W;

Power Consumption:960W;

Rated Current:30-70A;

Host Size: 666 *720 * 160 mm

Refrigerant: R134A

Window size: minimum 300mm * 170mm, maximum 590 * 490mm

Environmental requirements:conditions of ambient temperature -15-48

System pressure protection switch:

2.5MPa to close , 2.45MPa to restore (for reference)

0.1 8MPa to close , 0.23MPa to restore (for reference)

Applicable:

New energy electric air conditioning is suitable for truck , caravan , cranespassenger , excavator , motor home , RV , agricultural machine , etc

Note:

1. When using an electric air conditioner when driving, the battery should be fully charged first, and the generator must be above 75A.

Vehicles with less than 75A must pay attention to the battery storage on the dashboard when driving. Stop using the electric air conditioner as soon as the indication of low battery power appears.

When the generator is running and the voltage is high, the compressor controller will mistakenly think that the battery is fully charged, but in fact the battery has no electricity. When parking, the compressor controller will automatically control, will not cause battery feed. In addition, when the generator is less than 55A, there will be undervoltage, and the air conditioner will be turned on when it stops. (This is because the power in the battery has been used up, and when the engine speed is low, the point cannot keep up, resulting in undervoltage).

2. In order to maximize the performance of the electric air conditioner, it is recommended to install a set of power batteries of 200A or above and a generator of about 70A, which can be used for about 5 hours when it is very hot during the day and used for more than 10 hours at night. Electric air conditioner doesn't have any effect either!

3. The external unit of the electric air conditioner should be installed to avoid the exhaust pipe of the engine, so as not to cause the high temperature of the external unit. The distance between the back panel of the electric air conditioner and the cab should not be less than 10 cm to ensure that the condenser fan has sufficient airintake.

Package List:

1 Set Heating&Cooling AC
