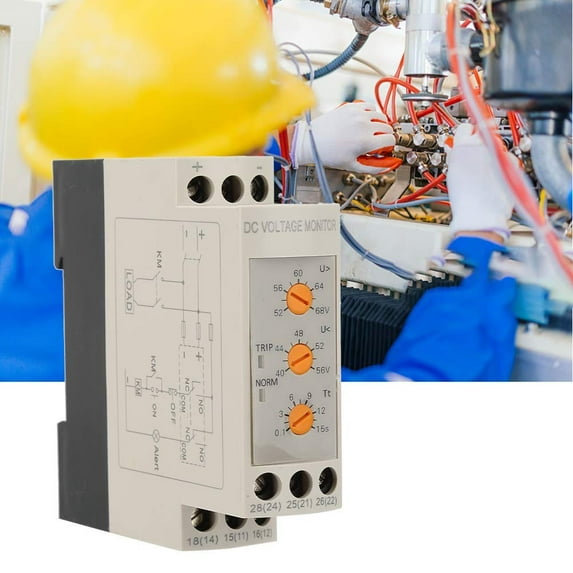

1pc Overvoltage Undervoltage Protector DC12/24/36/48V DVRD Surge/undervoltage Protection Relay Voltage Protection Power Tools

Features:
* Brand new and high quality
* Made of high quality materials, sturdy and
* Standard modular structure, guide rail installation
* Real-time monitoring of DC overvoltage and undervoltage faults
* No additional auxiliary power required
* Overvoltage and undervoltage values can be set
* For time can be adjusted
* 2 sets of normally open and normally closed contacts
* 2 indicator lights show different working status
* Typical applications: DC motors, batteries, UPS power supplies, DC switch cabinets, DC distribution panels, industrial control s

Specification:
Protection function: overvoltage, undervoltage
Type (optional): DVRD-12, DVRD-24, DVRD-36, DVRD-48
Rated voltage: DC12V 24V 36V 48V
Monitoring circuit: DC circuit
Protection function: overvoltage, undervoltage
Overvoltage adjustment range: 13-17V
Undervoltage adjustment range: 10-14V
delay range: 0.1-15s
Display mode: normal, , 2 LED lights indicate working status
Contact form: 2 sets of normally open and normally closed contacts
Contact capacity: 6A 250VAC (resistance)
Installation : 35mm guide rail
Overall dimensions: 79*23*79mm/3.1*0.9*3.1 inches

Package Included:
1 x overvoltage and undervoltage protector

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
