Universal Automotive Auto Electric Air Conditioning Compressor 12V 24V For Car Van Street Rod Hot Classic A/C Conditioner ,Low Energy Consumption

Universal Automotive Auto Electric Air Conditioning Compressor 12V 24V for Car Van Street Rod Hot Classic A/C Conditioner

Description:

This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want. It runs by battery(Generator). Even you got your engine stalled, you still can use this air conditioner. Low noise, energy-saving, environmental protection is the best choice for you.

Pay attention:

1. PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.

2. Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt.

3. Blower temperature couldn't be adjusted ! If you want to adjust temperature, you need to add one digital control panel.

Generator (battery) request:

12V compressor require generator ampere over 100a;

24V compressor require generator ampere over 70A.

About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.

Compressor data:

Compressor style: Semi-closed Horizontal Scroll Compressor

Material: Aluminum alloy

Voltage: DC 12V / 24V

Working voltage range: 10.5VDC-15VDC / 19.5VDC-32VDC

Current: 45A+-2 / 35A+-2

Displacement: 21cm³/r

Cooling capacity: 1.688KW / 2.465KW

(5731BTU / 8410BTU)

Speed range: 1000 - 2300rpm / 1000 - 3000rpm

Rated power: 550W / 850w

Rated speed: 1800rpm / 3000rpm

Oil: POE / 130ml - 150ml (Oil has already in compressor )

Gas/Refrigerant: R134a

Condensing temperature range: 26.7-68

Evaporating temperature range: -10-12.5

Refrigerant leakage rate: <14g per year

Suction pipe inner size: Ø18.3mm

Discharge pipe inner size: Ø15.5mm

COP W/W: 3.07 / 2.9

Led blinking:

Blinking 1 times, pause 1 second: Standby mode.

Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.

Fast blinking 3 times, pause 1 second: Locked rotor protection.

Fast blinking 4 times, pause 1 second: Undervoltage protection.

Fast blinking 6 times, pause 1 second: Electric fan fault.

Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.

Fast blinking 8 times, pause 1 second: Compressor over heated protection.

Fast blinking 9 times, pause 1 second: Pressure switch protection.

Brushless controller unit:

Brushless direct current controller

1. Over / Under voltage protection:

DC 12V -- ( 21V / 10.5V )

DC 24V -- ( 42V / 20.5V )

2. Max power: 600W / 1200W

3. Working temperature: Under 50

Outside unit:

Power : 120w

Outside Unit Dimension (Inch): 18.1 x 9 x 14inch

Whole unit :

Cooling capacity: 1680/2500w (5724/8532Btu/h)

R134a gas (Freon): R134a

R134a gas (Freon) needed: 600g-1200g

Cooling performance:

Remark: Speed tolerance ±1%. Actual test cooling capacity data not less than 90% of data in the table. Actual test power rate not exceed 110% of data in the table.

Dimension:

Compressor body not to be tilted (the angle between the main axis of the compressor and the horizon should not be greater than 5 °)

Battery / Evaporator / Radiator Fan Negative

To relay negative, Pin No.85

To relay Pin No.86

To battery / relay positive

To pressure switch

To compressor temperature sensor

To evaporator signal

Evaporator

Evaporator with three positions air switch and temperature switch.

1.5 Ton O-ring expansion valve, Size #6 and #10

Strong PP case

Electric fan

120W strong airflow (pulling air) radiator fan

Radiator protector net for stone attacked.

Radiator with #6 and #8 male O-ring fittings.

Electric compressor

Four thick rubber leg for shockproof

Four extended cable. From 2 to 12 square millimeter. Safety and qualified

Dryer/Hose

Dryer with glass. Size #6 to #6

Hose with three layer protection. No leaking and strong.

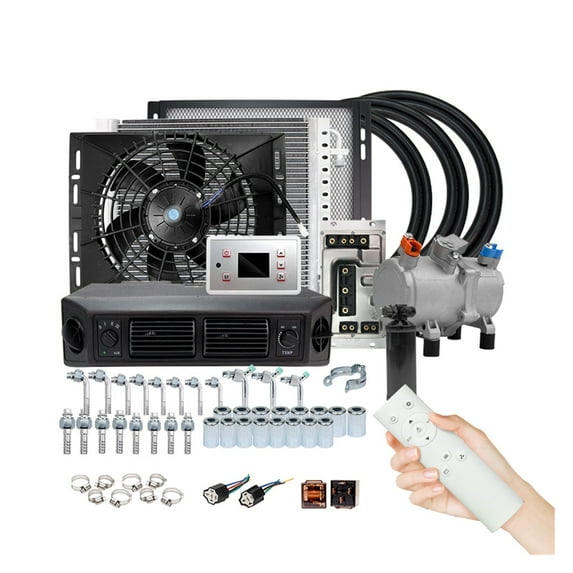

Product List

1 x Evaporator with mounting bracket

1 x Radiator fan / Radiator/ Radiator protector

1 x Electric compressor

Airandtemperaturecontrolpanel

2 meters x Electric compressor motor cable / 2 meters x Power cable /

2 meters x Electric compressor temperature sensor cable / dryer cable /2 meters x Radiator fan cable

Electric compressor control board

Remotecontrol

5 meters x #6 hose 3 meters x #8 hose 5 meters x #10 hose

1 x dryer with clamp

2 x ralay

2 x relay socket

8 x hose clips.

4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting

1 x #6 #8 #10 fitting with service port

4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting

8 x #6 steel crimp ferrule / 4 x #8 steel crimp ferrule / 4 x #10 steel crimp ferrule

2x Electric compressor fittings
