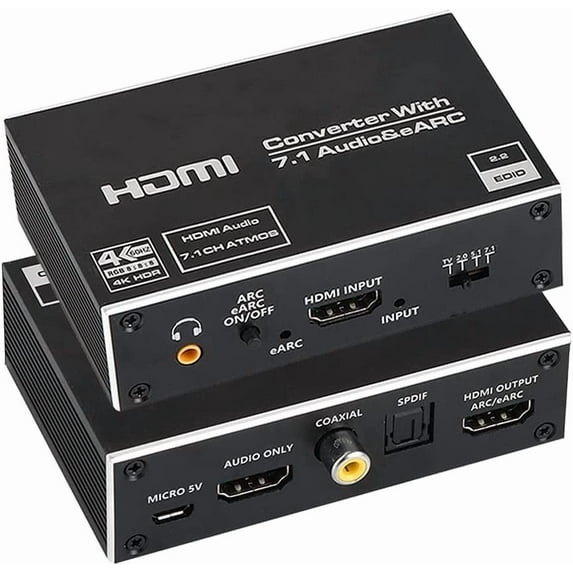

4K HDMI Audio Extractor Splitter,AUBEAMTO HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio Support ARC and eARC Function

Hero image 0 of 4K HDMI Audio Extractor Splitter,AUBEAMTO HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio Support ARC and eARC Function, 0 of 7

AUBEAMTO

4K HDMI Audio Extractor Splitter,AUBEAMTO HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio Support ARC and eARC Function

Name: 4K HDMI Audio Extractor Splitter,AUBEAMTO HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio Support ARC and eARC Function
Brand: AUBEAMTO
SKU: 15784772079
Price: 39.59 USD
Availability: InStock
Rating: 2 (4 reviews)

|4 ratings

Key item features

Versatile Audio Extraction: Extracts audio from HDMI 2.0 sources, outputting via 3.5mm Audio Jack, Toslink SPDIF, Coaxial, or HDMI Audio Port.
Advanced Audio Support: Supports a wide range of HDMI audio formats including PCM 2.0, Dolby Digital, DTS, and immersive formats like Dolby Atmos and DTS:X.
ARC/eARC Functionality: Enables audio extraction from TV's ARC/eARC port to soundbars or amplifiers via Optical, Coaxial, or HDMI Audio Port.
High Resolution Input: Handles up to 4K@60Hz RGB 8:8:8 input with support for various color spaces and deep color options.
Broad Device Compatibility: Compatible with HDMI 2.0b and HDCP 2.2/2.3, connecting to devices like PS3/PS4, Xbox, Blu-ray players, and outputting to HDTVs, projectors, and home theaters.

Generated by AI

Specs

Inputs/Outputs
1 HDMI input, 1 HDMI output, 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
In/Out type
HDMI
Input/output direction
Output
Brand
AUBEAMTO
Input/output quantity
1
Height
2 in

Current price is Now $39.59

You save $4.40

was $43.99

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

2-Year Plan - $4.00

3-Year Plan - $6.00

How do you want your item?

I want delivery savings with

Try 30 days for just $1! Choose a plan at checkout.

How do you want your item?

Ships to

Arrives by Tue, May 26

Order within 7 hr 21 min

Sold by AUBEAMTO

Fulfilled by Walmart

3 stars out of 5, based on 10 seller reviews(3.0)

Report an issue with this seller

Free 30-day returns

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

4K HDMI Audio Extractor 4K HDMI 2.0 Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with audio Extract Function. The Audio can be output by 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR(High Dynamic Range ) pass-through and eARC/ARC Function. Specification Power Supply: DC 5v/ 1000mA. HDMI Audio Only Port:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X. Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1. Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1. 3.5mm Audio Jack:Analog stereo 2.0ch. Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).

4K HDMI Audio Extractor: 4K HDMI 2.0 Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with audio Extract Function. The Audio can be output by 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR(High Dynamic Range ) pass-through and eARC/ARC Function.
Supported HDMI Audio Extract formats: HDMI Audio Formats: PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X. Support Blue-ray 24/50/60fs/HD-DVD/XVYCC. SPDIF/Coaxial Formats: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1.When USED HDMI Output eARC/ARC Function: TV eARC/ARC audio output port should Connect to TV with ARC/eARC function.
Support ARC and eARC Function: Extract the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC or eARC) Port to this Audio converter HDMI Output(ARC/eARC)Port with HDMI Cable, then connect Optical cable or HDMI Cable or Coaxial to Amplifier or SoundBar. (Please Note: eARC and ARC function is only available from the Optical SPDIF, Coaxial and HDMI Audio Port.) And When you select eARC function, Please make sure that your TV has power on eARC function and HDMI CEC function is also on. (Please Note: that our HDMI Audio Extractor do not support CEC remote volume control and Power on/ off Functoion)
High HDMI Input Resolution: Support Up to 4K@60Hz RGB 8:8:8. Color Space: RGB 8:8:8, Ycbcr 4:4:4/ 4:2:2/ 4:2:0. Color Deep: 8-bit, 10 bit, 12 bit(1080p@60HZ); 8-bit (4kx2k@60Hz RGB 8: 8: 8/YUV 4: 4: 4) 8-bit, 10-bit, 12-bit(4Kx2K@60HZ Ycbcr 4:2:2/4:2:0).
Compatibility: HDCP support 2.2/2.3, compatible with HDMI 2.0b. HDMI Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. HDMI Video Output support: Projectors, HDTVs, Screen, Monitor, etc with ARC/eARC Port. HDMI Audio Output support: Home theater. SPDIF / Caoxial Output support: Speaker. 3.5mm L/R Output support: headphone. Power Port: DC/5V.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Inputs/Outputs

1 HDMI input, 1 HDMI output, 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port

In/Out type

HDMI

Input/output direction

Output

Accessories

1 x 18Gbps HDMI eARC Extractor; 1 x Power Adapter; 1 x User Manual

Warranty

Warranty information

AUBEAMTO offer a one-year warranty and lifetime service.
