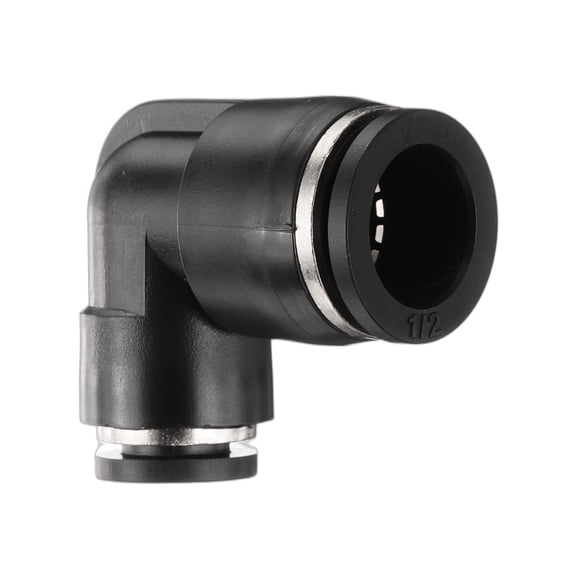

Uxcell Push to Connect Fitting 1/2" 5/16" Tube OD 90 Degree Quick Connector Push to Connect Adapter Zinc Alloy Air Line Hose Fittings for Industry Air System PV1/2-5/16, Black

1. 90 Degree Push to Connect Fitting are 1/2 inch and 5/16 inch Tube OD; Outside diameter: 19mm/0.75 inch and 14mm/0.55 inch, Long side length: 36mm/1.42 inch, Short side length: 32mm/1.26 inch, Model: PV1/2-5/16;  Working temperature range: -40~60℃, working pressure range: 0-1MPa, ultimate pressure:1.6Mpa
2. Zinc alloy and PBT material, Zinc alloys have good oxidation and corrosion resistance and are suitable for use in humid environments. For a variety of industrial applications, with excellent mechanical properties and stability.
3. Push to Connect Fitting features a compact design that prevents detachment, ensuring the quick connection of air hoses. It has strong pressure resistance, is suitable for high-pressure environments, and has excellent sealing performance to effectively prevent leaks.
4. Suitable for gas pipe connection to ensure firm connection, strong pressure resistance, and long service life. Widely used in pneumatic tools, factory equipment and mechanical equipment, suitable for various industrial environments, improves work efficiency, and ensures safety and reliability.
17. After cutting off the tubing, insert one end into the socket of the joint (must be inserted into the bottom) to achieve a firm connection and sealing effect. After installation, you just need to rotate the joint body to adjust the direction of the pipe.
