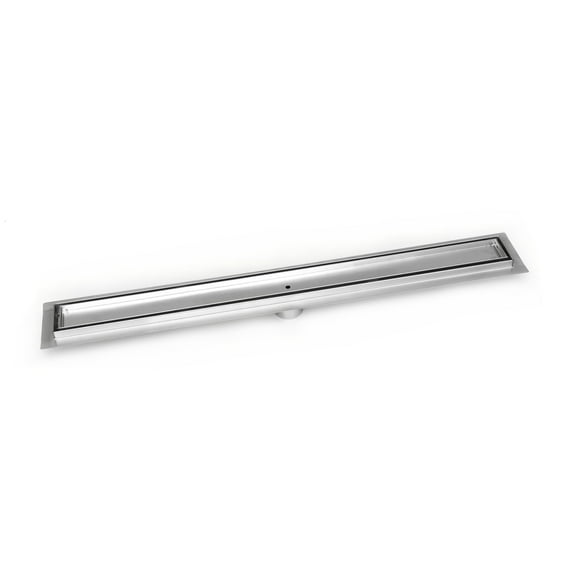

Complete Drain Installation Kit: 16" Linear Drain, 2 Inch ABS Shower Drain Base Flange, Hair Trap, by SereneDrains

Drain Includes: 100% stainless steel channel body & grate, ABS shower drain base with rubber gasket, hair trap, puller key, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction.

By default we ship the ABS drain flange. Consult your contractor/plumber if construction code in your state requires ABS or PVC drain flange (PVC also available).

6 Unique Designs Available: Wind Design, Wave Design, Square Design, Broken Lane Design, Tile Insert Design, Linear Wedge Design.

Perfect for: Wheelchair access & barrier-free showers (walk in floor plans).
Applications: Shower & bath, kitchen, pools, balconies, hotels, gym, spa etc.

Features:

• Stainless steel brushed nickel finish.
• Superior quality laser cut electropolish finish.
• Bodies are fully welded and leak tested prior to dispatch.
• 2 Inch diameter central vertical outlet, designed to be installed into any 2" shower drain flange.
• Compatible with tiles up to 10mm depth (14mm lip).
• Pre-Slope channel. Channel width: 2 3/4" (70 mm).
• Drains are sized to match standard 1/2", 1", 2, and 4" tile without cutting.
• Drain grade is 16 gauge 304 stainless steel (The Wedge design grade is 6 gauge 304 stainless steel).
• Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).


Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

Drains Dimensions:
Net Size 15" 3/4" x 2 3/4" 400mm | Overall Size 17" 1/4" x 4 3/8" | Intake sq. in: 12.38
Net Size 23" 1/2" x 2 3/4" 600mm | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96
Net Size 30" x 2 3/4" 762mm | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62
Net Size 35" 3/8" x 2 3/4" 900mm | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03.
Net Size 39" 3/8" x 2 3/4" 1000mm | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12
Net Size 47 1/4" x 2 3/4" 1200mm | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68
Net Size 59.05" x 2 3/4" 1500mm | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67

In stock ready to ship from the USA. Free Shipping
