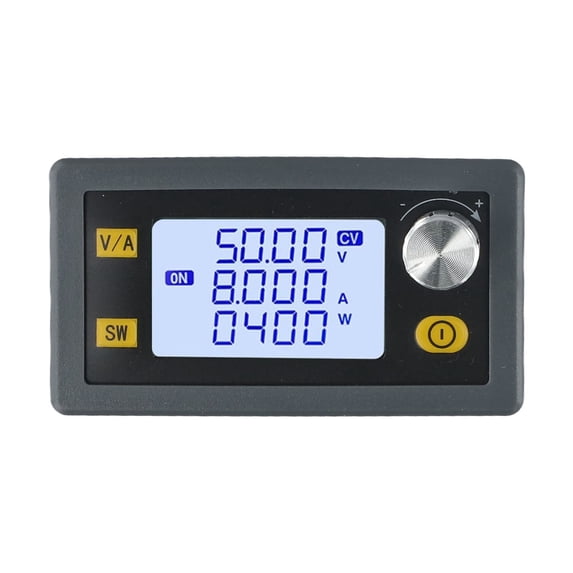

Cnc Dc Step Down Regulated Power Supply 400W 50V8A Cc Cv Adjustable Module
Key item features
- 【Adjustable DC Regulated Power Supply】This CNC step-down power supply features constant voltage and constant current function, with an input voltage range of 0-55.00V and an output voltage range of 0.0-50.00V. It also has an adjustable output current range of 0-8.100A, providing a total output power of 400W.
- 【Intelligent Temperature-Controlled Fan】Featuring an intelligent temperature-controlled fan, this power supply is designed with a thickened heat sink and two-way ventilation, providing effective heat dissipation. The fan automatically starts when the temperature exceeds 50 degrees or the current exceeds 1A, stable and reliable performance.
- 【Multiple Protections】To for ensure safety and durability, this power supply is equipped with multiple hardware and software protections. Hardware protections include input anti-reverse connection and output short-circuit protection, while software protections include under-voltage, over-voltage, over-current, over-temperature, and over-power protection.
- 【Clear LCD Display】Equipped with a large-screen LCD display, this power supply allows for easy monitoring of various status information. The clear and intuitive display ensures a smooth and user-friendly operation experience.
- 【 Material】With a frosted panel and an aluminum alloy knob cap, this power supply is made of excellent materials, providing a good feel and enhancing durability.
Specs
- FeaturesIDC connectors
- BrandBeisidaer
- Dimensions3.90 x 3.12 x 2.34 Inches
- Weight124 g
Free 30-day returns
How do you want your item?
About this item
Product details
Feature:
*CNC DC step-down power supply, constant voltage constant current, input voltage: .0-55.00V; output voltage: 0.0-50.00V; output current: 0-8.100A; output power: 400W
*Large-screen display: Full-view LCD large-screen display, each status is clear at a glance, easy to operate, smooth experience
*Intelligent temperature-controlled fan, automatic start and stop: thickened heat sink, two-way ventilation, better heat dissipation effect! When the temperature is greater than 50 degrees or the current is greater than 1A, the fan starts automatically
*Multiple protections: hardware protection: input anti-reverse connection, output short-circuit protection; software protection: input under-voltage protection, over-voltage protection, over-current protection, over-temperature protection, over-power protection
*Excellent material selection: 1-piece frosted panel, high-quality aluminum alloy knob cap with good feel
Specification:
Part name: CNC DC step-down power supply
Model: XY5008E
Material: plastic+metal
Color: As shown in the picture
Input voltage: 6.0-55V
Output voltage: 0.0-50V
Output current: 0.000-8.100A
Voltage accuracy: ±0.4%+1 word
Output power: 0-400W
Current accuracy: ±0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
Input anti-reverse connection: Yes
Output short circuit protection: Yes
Input undervoltage protection: (4.8-55V adjustable, default 4.8V)
Output overvoltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-8.2A, default 8.2A)
Output over-power protection: (0-410W, default 410W)
Over-temperature protection: Yes, default 100℃
Timeout protection: (0-100H adjustable, off by default)
Over capacity protection: (0-9999AH adjustable, off by default)
Super energy protection: (0-9999WH adjustable, off by default)
Product Size: 79*43*25mm
Product Weight: 106g
Package Contents:
1*CNC DC step-down power supply
Notes:
Product color and size are subject to the actual product.
- 【Adjustable DC Regulated Power Supply】This CNC step-down power supply features constant voltage and constant current function, with an input voltage range of 0-55.00V and an output voltage range of 0.0-50.00V. It also has an adjustable output current range of 0-8.100A, providing a total output power of 400W.
- 【Intelligent Temperature-Controlled Fan】Featuring an intelligent temperature-controlled fan, this power supply is designed with a thickened heat sink and two-way ventilation, providing effective heat dissipation. The fan automatically starts when the temperature exceeds 50 degrees or the current exceeds 1A, stable and reliable performance.
- 【Multiple Protections】To for ensure safety and durability, this power supply is equipped with multiple hardware and software protections. Hardware protections include input anti-reverse connection and output short-circuit protection, while software protections include under-voltage, over-voltage, over-current, over-temperature, and over-power protection.
- 【Clear LCD Display】Equipped with a large-screen LCD display, this power supply allows for easy monitoring of various status information. The clear and intuitive display ensures a smooth and user-friendly operation experience.
- 【 Material】With a frosted panel and an aluminum alloy knob cap, this power supply is made of excellent materials, providing a good feel and enhancing durability.
