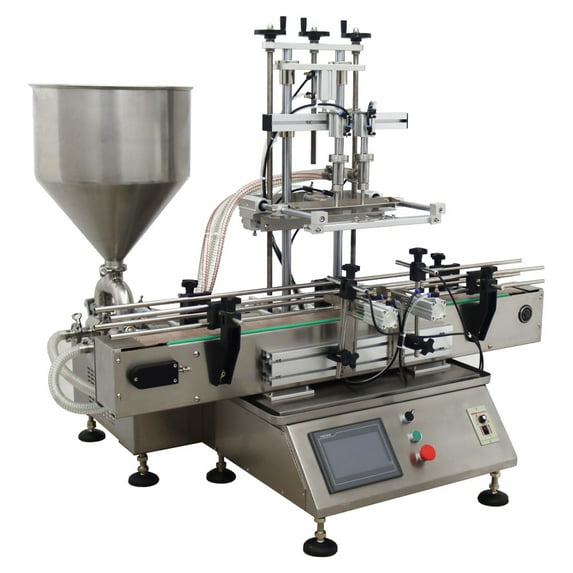

Desktop Fully Automatic Double Head Paste Filling Machine Paste Syrup Honey Jam Sauces Filling Packing Machine with Conveyor Belt 110V 100-1000ml

Description:
This machine can be used to fill semi fluid, paste, viscous body, sauce and various materials containing small particles, such as honey, syrup, jam, peanut butter, sesame paste, tomato paste, Doubanjiang, shrimp paste, Apple sauce, Salad dressing, Caviar and other various paste and liquid materials.

Product Parameter:
Voltage: 110V/60Hz
Material: The surface is stainless steel
Production speed: 5~60bot/min
Bottle height: 10~28cm
Bottle diameter: within 10cm
Applicable pressure (Mpa): ≥0.4

Note:
Note that the air pressure should reach 0.6MPa to work normally. Please ensure the air pressure of the air pump when working.
We only sell machines, do not match air compressors, customers need to buy their own.

Product safety precautions:
1.If overflow occurs at the injection nozzle, press the safety emergency stop switch to ensure the cleanliness of the workshop.
2. When disassembling and washing this machine, do not directly rinse the body with water.
3. The air circuit of this machine must not be plugged or unplugged arbitrarily.
4.When improper operation causes the cylinder to eject and cannot be returned, please press the reset button to reset it.

Precautions for product use:
1.The body of this machine is made of stainless steel, please do not use sharp or hard tools to scratch its surface.
2. The cylinder has been lubricated before leaving the factory. Please do not open the cylinder or add any lubricating oil.
3. Before cleaning the piston filling machine, remove the Surplus product in the charging cylinder and tee, and then fill the water tank with soft cleaning liquid. Our company recommends using warm water. If necessary, soap water, alcohol, or other cleaning liquids can be used.
4.Cleaning requirements:
When cleaning, it is important to ensure that the piston sealing ring is properly installed. Turn on the machine and let it cycle filling until it is clean. This cleaning is relatively simple and can be used in situations with low requirements. In high demand situations, all components that come into contact with the material should be thoroughly cleaned, including the material cylinder, piston, piston sealing ring, three-way valve, filling head, feed pipe, discharge pipe, etc. When cleaning all sealing rings, it should include the sealing rings of the piston and the flat sealing rings of the valve, and replace the broken and damaged sealing rings.

Item Included:
2pcs Nonstick Cooling Racks(249015)
