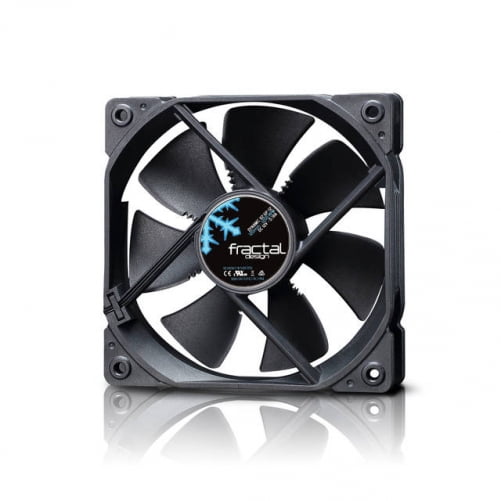

Fractal Design Case Fan Cooling Black (FD-FAN-DYN-X2-GP12-BK)

Specifications

• Mfr Part Number: FD-FAN-DYN-X2-GP12-BK
• Features:
  • High grade LLS bearing with class leading 100,000 hours MTBF
  • Equipped with a counter-pull magnet that reduces the axial tension on the bearing
  • Fan geometry optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios
  • Aerodynamically shaped stator struts including the wire strut. Helps reduce noise and unwanted turbulence
  • Stator struts sit on a wide angle to the trailing edge of the blades which result in a lower noise level and smoother noise profile
  • Strategically placed notches near the fan hub on the trailing edge of the blades further reducing the humming noise produced when the blades pass the stator struts
  • A "trip wire" on the rear side of the blades near the leading edge. The trip wire introduces a larger turbulent boundary layer at an earlier stage, this delays the layer separation and improves both airflow and noise characteristics.
  • The customized design of the Dynamic Series fans contributes to a beautiful, cool build
• Rotational Speed: 1200 RPM
• Acoustical Noise: 19.4 dB (A)
• Maximum Air Flow: 52.3 CFM
• Maximum Pressure: 0.88 mm H2O
• Actual Input Power: 1.32 W
• Maximum Rated Input Current: 0.18 A
• Nominal Input Voltage: 12 V
• Minimum Startup Voltage: 4 V
• Screw Hole Pattern: 105 x 105 mm
• Connector: 3-pin fan header
• Bearing: LLS
• Number of Blades: 7
• MTBF: 100,000 hours
• Cable Length: 500 mm
• Cable Type: Black Ribbon Cable
• Color: Black blades, Black frame
• Dimensions: 120.0 x 120.0????x 25.0????mm
• Weight:????119.0 g
• Package Contents: Dynamic X2 Series fan; Screw pack with 4 metal fan screws
