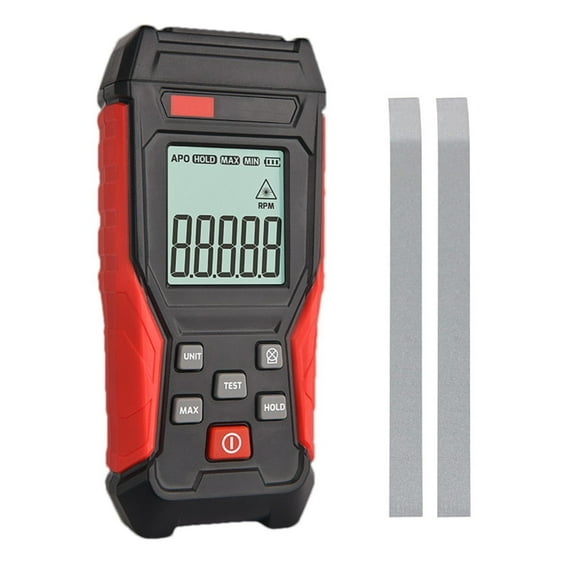

TA500A Digital Tachometer Non-Contact RPM Tach Photo Sensor 3~100000 RPM Gauge

Features：
Non-contact Tachometer: Measure RPM with photoelectric Precision, Suitable for Large and Small Engines
High Precision: for Instant Readings with ±(0.05% + 1 RPM) Accuracy, Fast Sampling Time
Multi-function LED Backlight: Easy Reading in Dark, Store Latest, Minimum, and Maximum Readings
Wide Application: Measure Speed of Motors, Fans, Pumps, Turbines, Gears, and More
Complete Tool Kit: Includes Tachometer, Batteries, Reflective Markers, Box, and User Manual

Specification:
Part Name: Digital Tachometer
Color: Black/Red
Material: Plastic
Model: TA500A
Measuring way: non-contact
Measuring range: 3-100000RPM
Accuracy: ±(0.05%FS+1RPM)
Resolution: RPM: <10000: 0.1, RPM: ≥10000: 1
Speed display: six-digit display, maximum 99999
Effective measurement distance: 50mm~500mm
Sampling time: 0.8 seconds (above 60 rpm)
Automatic shutdown: 15 minutes (can be turned off manually)
Usage environment: -10~50℃, maximum 80% relative humidity, indoor altitude <2000m
Storage environment: -10~50℃, maximum 70% relative humidity (remove the battery)
Power supply: 2×1.5V AAA (R03/LR03) (not included)
Size: 130x59x29mm
Display size: 34 x 31mm
Weight: about 110g (without battery)

Package Content:
1*Digital Tachometer
1*Instruction Manual


Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
