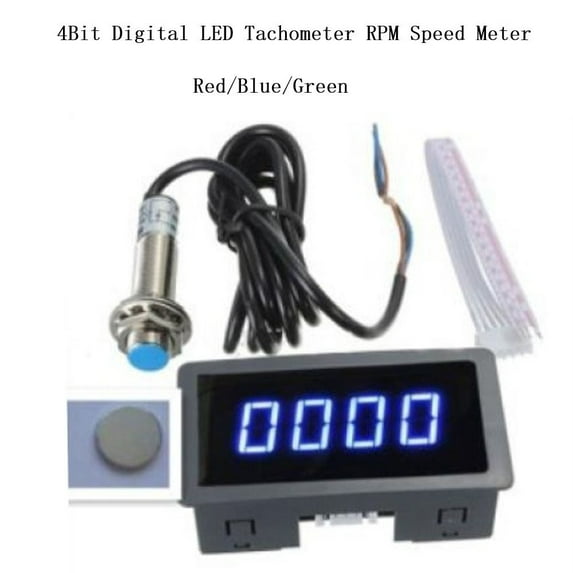

4bit Digital Led Tachometer Rpm Speed Meter+Hall Proximity Switch Sensor Dc8-24v

Features:



-Brand new and high quality

- Made of high quality materials, durable

-Standard size for easy installation.

-It has good stability and high measurement accuracy.

-Strong anti-interference ability.


Specifications:


-Power requirement: DC8-24V（V）

-Measuring range: 5-9999 RPM

-Zeroing: Automatic

-Display refresh rate: 3 times/second

-Measurement indication: rotational speed ＜ 5000, ± 2; Rotation speed>5000, ± 3

-Display: Blue and green 0.56 "LED

-Response frequency: 100HZ

-Tachometer size: 72x36x20mm

-Panel cut size: 68x33mm

-Sensor size: 12x55mm

-Proximity output current: 200mA

-Sensor wiring: brown power supply+; Blue Power -; Black signal

-Operating temperature: 0 to 50 ° C.

-Model: red LED tachometer+Hall switch, green LED tachometer+Hall switch, blue LED tachometer+Hall switch (optional)



package includes:


1 * LED tachometer tachometer (optional)

1 *Hall proximity switch sensor

1 * line


Notes:

1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.
