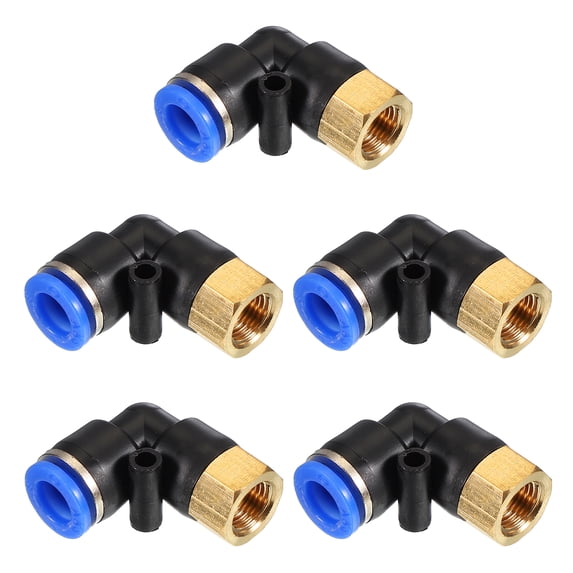

Uxcell 1/8" Push to Connect Fitting 5 Pack PT Female Thread 90 Degree Connect 8mm Tubing Elbow Adapter

The push to connect air fitting is suitable for automotive, pneumatic, and air brake systems, and is mainly used to repair air hose leaks in cars or trucks, including air-bag spring line repair or other nylon PU air tubes.

Specification
Color: Blue
Material: Plastic&Copper
Thread Size: 1/8 Inch PT
Pipe Interface Size: 8 mm / 0.31 Inch
Total Size: 27 x 24 mm / 1.06 x 0.94 Inch(LxW)
Applicable: Pipe PU/ PA/ PE/ PVC
Working Temperature: -5-60°C / 23~140°F
Working Pressure: 0-10kgf/cm² / 0~142psi
Packing List: 5 Pack x Push to Connect Fittings

Advantage
The elbow and straight combination air fittings are made of quality plastic and copper, with corrosion resistance, high-pressure resistance, and good sealing performance.
The connection part can be rotated 360 degrees, and you can adjust the direction by simply rotating the joint body even after installation.

Instruction
Easy to install. Insert the tube directly into the air tube bottom for connection. Push the button and pull out to remove the tube.

NOTE
When installing our pneumatic tube fitting, please ensure the size and cross of the air tubes are smooth and flat without gaps or unevenness to avoid air leakage.
