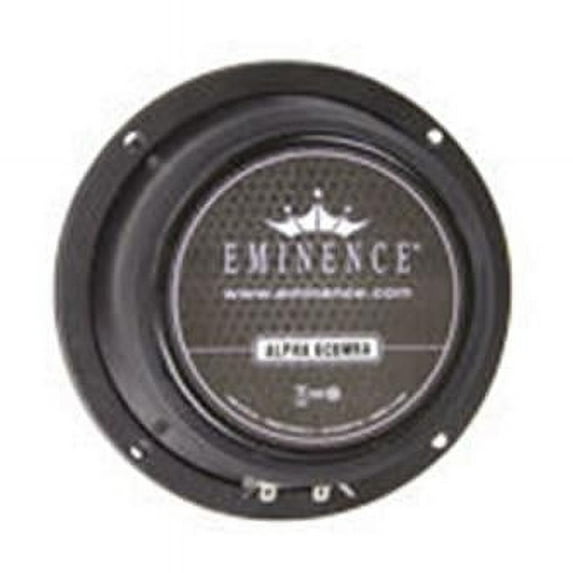

EMINENCE SPEAKER LLC 6.5 in. 100W Chassis Midrange Loud

Name: EMINENCE SPEAKER LLC 6.5 in. 100W Chassis Midrange Loud
Brand: Eminence Speaker
SKU: 1361002461
Price: 102.97 USD
Availability: InStock

(No ratings yet)

Key item features

Specs

Size
153.92 mm
Car speaker size class
6.5"
Car speaker type
Midrange
Rms power rating
100 W
Peak audio power handling
200 W
Loudspeaker sensitivity
97.8dB

Current price is $102.97

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $18.00

2-Year Plan - $13.00

How do you want your item?

Ships to

Arrives by Thu, May 21

Sold and shipped by UnbeatableSale

4.161043807187037 stars out of 5, based on 39127 seller reviews(4.2)

Report an issue with this seller

Free 30-day returns

More seller options (1)

Starting from $92.99

About this item

Product details

Recommended for pro audio, car audio, and bass guitar midrange applications. Sealed basket affords this speaker enclosure independence.

Nominal Basket Diameter: 6.5", 165.1mm.

Nominal Impedance: 8 ohms.

Watts: 100W.

Music Program: 200W.

Resonance: 406.98Hz.

Usable Frequency Range: 400Hz - 5kHz.

Sensitivity: 97.8dB.

Gap Height: 0.25", 6.35mm.

Voice Coil Diameter: 1.5", 38.1mm.

Resonant Frequency (fs): 406.98Hz.

DC Resistance (Re): 5.26.

Coil Inductance (Le): 0.38mH.

Mechanical Q (Qms): 6.04.

Electromagnetic Q (Qes): 1.74.

Total Q (Qts): 1.35.

Compliance Equivalent Volume (Vas): 0.45 liters / 0.02 cu.ft.

Peak Diaphragm Displacement Volume (Vd): 19.01cc.

Mechanical Compliance of Suspension (Cms): 0.02mm/N.

BL Product (BL): 7.86 T-M.

Diaphragm Mass Inc. Airload (MMs): 8 grams.

Efficiency Bandwidth Product (EBP): 233.6.

Maximum Linear Excursion (Xmax): 1.5mm.

Surface Area of Cone (Sd): 126.7 cm2.

Maximum Mechanical Limit (Xlim): 3mm.

Recommended Enclosure Volume.

Sealed - liters / - cu.ft.

Vented - liters / - cu.ft.

Driver Volume Displaced: 23.4 cu.in. / 0.4 liters.

Overall Diameter: 6.59", 167.39mm.

Baffle Hole Diameter: 5.69", 144.53mm.

Front Sealing Gasket Fitted as standard.

Rear Sealing Gasket Fitted as standard.

Mounting Holes Diameter: 0.23", 5.84mm.

Mounting Holes B.C.D. 6.06", 153.92mm.

Depth: 2.2", 55.88mm.

Coil Construction Copper voice coil.

Coil Former Polyimide former.

Magnet Composition Ferrite magnet.

Core Details Non-vented core.

Basket Materials Pressed steel basket.

Cone Composition Paper Cone.

Cone Edge Composition Cloth cone edge.

Dust Cap Composition Solid composition paper dust cap.- SKU: ZX99TBALL8719
