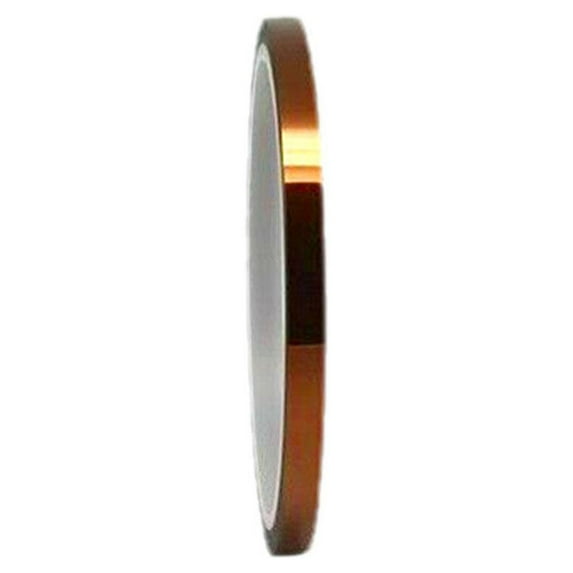

Heat Resistant Tape Kapton BGA High Temperature Thermal Polyimid3 G0U3

Product name: High-temperature tape for battery insulation
Product size: Width 6/10/15/20/25/30mm/0.236/0.394/0.591/0.787/0.984/1.18in
Length 1299.21in
Color: Amber
Thickness: 0.05mm/0.00197in
Elongation: 50%
Tensile force: ≥42N/25mm
Peeling force: ≥26N/25mm
Initial adhesion: 24#
Adhesion: 48H
Product performance
Gold finger tape is made of polyimide film as the substrate coated with high temperature resistant silica gel, the color is brown (amber), gold finger tape has good viscosity, good adhesion, high temperature resistance, solvent resistance, no tin penetration, no residual glue, the product has excellent electrical properties:
Short-term temperature resistance 150℃, long-term temperature resistance 180℃;
High insulation, high temperature, low temperature, acid and alkali resistance, low electrolysis, good mechanical properties, friction resistance, tear resistance;
Special adhesive treatment, strong adhesion, tear off the covered face leaves no residue.
Main use
Mainly customed in: 3D printing painting, painting, sealing, footwear, packaging and fixing, building decoration and other industries;
Widely customed in the electronics industry transformers, motors, coils, capacitors and frequency conversion power supply and other high temperature insulation winding;
It is suitable for shielding and protecting gold finger in printed circuit board (PCB), SMT tin furnace and wave soldering process;
Electrical insulation protection and lithium battery positive and negative electrode fixation;
Suitable for welding protection;
Mobile phone lithium battery manufacturing strapping.

Precautions:
1. As we all know , the different computers display colors differently, the color of the actual item may vary slightly from the following images.
2. If you feel difficult to choose the size, you can feel free to contact mewe will give you some suggestion, but it is for you reference only.

Shipment includes:
1 pcs High-temperature tape for battery insulation
