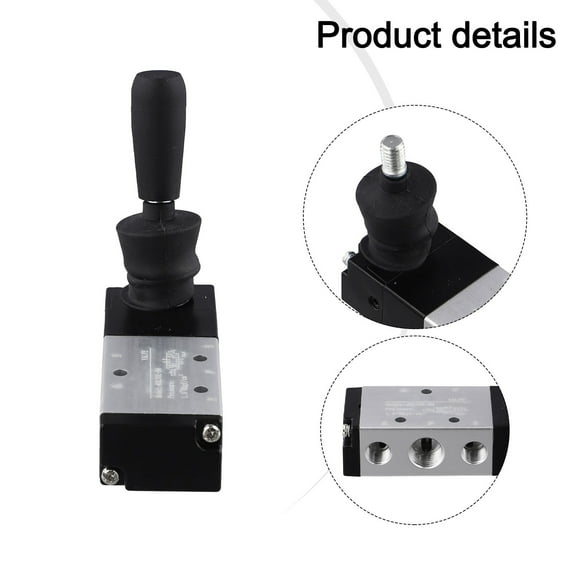

4H230C-08 Pneumatic 1/4\" Pt 5 Way 3 Position Air Hand Lever Operated Valve

Features:
* Brand new and high quality
* Made of high quality materials,
* The sensitive handle changes direction lightly and pushes and pulls smoothly.
* The valve body is made of high-precision aluminum alloy with high hardness and long service life.
* Each thread is finely processed, burr-free, smooth and easy to install.

Specification:
Model: 4H230C-08
Material: aluminum alloy
Type: 5-way 3-bit. Port sizes: Inlet (P) = PT 1/4, Exhaust (A B) = PT 1/4, Exhaust (R S) = PT 1/8
Swing angle: ±8.5°
Working pressure range: 1.5~8kgf/cm²
Working temperature range: -20~70℃
Working medium: air
Product size: 9.3 * 3.3 * 9.1 cm/3.7 * 1.3 * 3.6 inches
Product weight: 182g / 6.41oz
Package size: 10.0*8.0*4.0cm/3.9*3.1*1.6in
Packaging weight: 200g/7.06oz

Package Included:
1 x pneumatic valve

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
