Features：
1. Adopt imported dual MOS parallel active output, lower internal resistance, larger current, strong power, 15A, 400W at room temperature, which meets the use of most equipment;
2. Wide voltage, perfect support for PWM;
3. Easily realize the control of high-power equipment.
4. The PWM driver module is suitable for use on grounded source (low-side drive), and the driver board is ideal for electronic switching power supplies and motor drives.
5.The MOS modules are not only used in digital signal processing such as microcontrollers and microcontrollers, but also in integrated circuits for analogue signal processing
Specification：
1: Working voltage: DC 5V--36V
2: Trigger signal source: digital high and low level (DC3.3V--20V), can be connected to single-chip IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0--20KHZ support
3: Output capacity: DC 5V--36V, continuous current 15A at room temperature, power 400W! Under the condition of auxiliary heat dissipation, the maximum current can reach 30A
4: Application: The output end can control high-power equipment, motors, light bulbs, LED light strips, DC motors, micro pumps, solenoid valves, etc., and can input PWM to control the motor speed and the brightness of the lights.
5: Service life: unlimited switches
Working temperature: -40~85°C
Size: 3.4*1.7*1.2cm
Packing list：

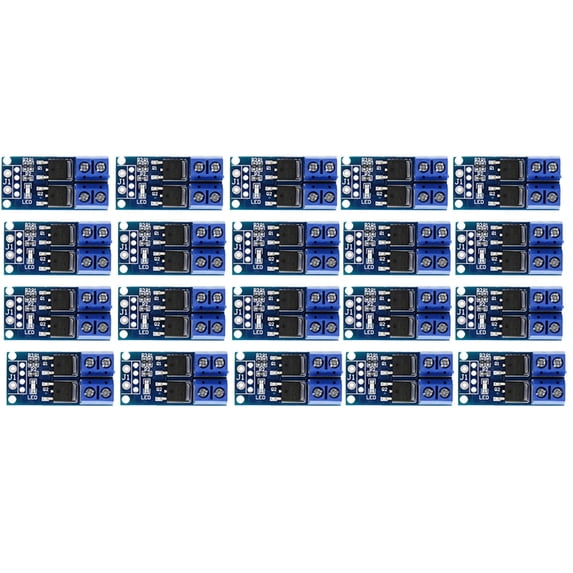

20*trigger switch drive module
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
