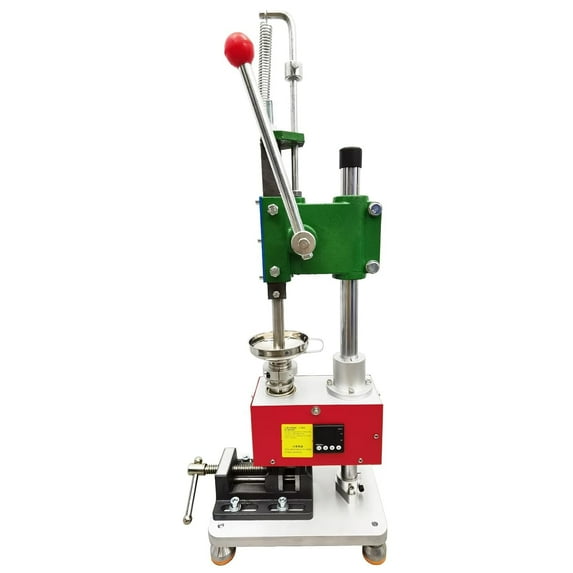

Manual Plastic Injection Molding Machine Desktop Injection Shaping Machine DIY Laboratory Sample Proofing Thermoplastic Forming Machine
Key item features
- Versatile Material: Compatible with PE (HDPE, LDPE) plastic particles, enabling personalized production of plastic products.
- Precise Temperature: Features a control panel for flexible temperature adjustment from 0-350°C, allowing for long-term operation at highest temperatures.
- Ergonomic Operation: Spring-assisted handle automatically returns to position, and an extended press lever with a plastic ball end ensures comfortable use.
- Adaptable Clamping: Equipped with clamping pliers at the bottom to securely hold molds of various sizes and specifications, up to 550mm.
- Simplified Setup: Operates without an air compressor, and the injection pipe and hopper are constructed from durable 201 stainless steel for longevity.
- Compact Parameters: Operates at 110V with 1000W power, offering an injection volume of 0.035-0.7oz (1-20g) and a plunger diameter of 0.79 inches.
Specs
- BrandEQCOTWEA
- FeaturesEasy To Operate
- Volts110 V
- Weight47.18 lbs
- Has written warrantyNo
- Watts1000 Watts
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Product Overview
Manual injection molding machine for plastic. Focused on the DIY, this plastic injection machine is easy to install, operate and maintain. It is a great choice for starting your plastic parts business. An irreplaceable assistant in the workshop. With this machine you can produce parts made of HDPE LDPE, with molds up to 550mm height. The operation of this machine is designed for long-term operation without stopping at high temperatures, up to 350℃. Suitable for injection molding of 0.035-0.7oz products. No air compressor required.
Product Parameters:
1. Voltage: 110V
2. Power: 1000W
3. Driving power: 400W
4. Temperature setting: 0℃-350℃
5. Suitable plastic particles: PE(HDPE LDPE)
6. Injection volume: 0.035-0.7oz(1-20g) (Typical value is less than 3 grams)
7. Injection velocity: 1m/s
8. Injection mode: Manual
9. Plunger diameter: 0.79"(20mm)
10. Inner diameter of nozzle: 0.1"(2.5mm)
11. Package size: 35.04"*14.17"*11.42" (89cm*36cm*29cm)
12. Net weight/Gross weight: 47.18lbs(21.4kg)/51.81lbs(23.5kg)
Note: The heating time should be more than 15 minutes, be sure to reach the heating temperature to start the screw rotation!
Product Features & Advantages:
a. Vise: The bottom of the machine is equipped with well-made clamping pliers, which is easy to grip the molds of various sizes and specifications, and the clamping effect is good and will not be loosened to ensure good injection molding effect.
b. High Quality: The injection pipe and hopper are made of 201 stainless steel material, which is corrosion resistant, beautiful and easy to clean, and is not easy to rust for a long time.
c. Precise Temperature Control: Temperature control panel can be flexibly set 0-350℃ heating temperature, to meet different injection needs, simple and convenient operation. (Please pay attention to the high temperature when heating to avoid scalding!!!)
d. Easy to Operate: After each extrusion, the handle can be loosened to return to its original position automatically with the help of spring tension. Extended press lever with a plastic ball at the end, easy to operate, save time and effort, easy to carry out the next operation.
e. High Elastic Spring: The bottom of the hopper is designed with a high elasticity spring, which will automatically spring back to reset the hopper when the injection is squeezed downward.
f. Rubber Support Legs: Rubber support legs are anti-slip and wear-resistant, stable support, not easy to shake, to ensure good injection molding effect.
g. Injection Nozzle: It is suitable for injection molding of 0.035-0.7oz(1-20g) products.
Item Included: 056965
Manual Plastic Injection Molding Machine Desktop Injection Shaping Machine DIY Laboratory Sample Proofing Thermoplastic Forming Machine
- Suitable plastic particles include PE(HDPE LDPE). Focus on DIY, let you easily achieve the personalized production of plastic products, is your plastic parts business irreplaceable assistant, simple operation, efficient work.
- According to your needs through the up and down arrows of the control panel to flexibly adjust the temperature, the heating temperature is 0-350℃, can be operated at the highest temperature for a long time without stopping, according to your different heating needs for temperature setting, easy to operate.
- Featuring a spring-assisted handle that automatically returns to its original position after each extrusion, this machine streamlines the process and saves time. The extended press lever with a plastic ball end ensures comfortable and ergonomic operation.
- The clamping clamp at the bottom is an excellent production process, which can clamp the molds of various sizes and specifications, and the molds can reach up to 550mm. And the end of the lengthened pressure rod has a plastic ball, the structure is humanized, and the operation is more convenient.
- One of the conveniences of this machine is that it does not require an air compressor, simplifying its setup and usage. The injection pipe and hopper are made from durable 201 stainless steel, ensuring longevity and resistance to high temperatures.
Specifications
Brand
Features
Volts
Weight
Warranty
Warranty information
