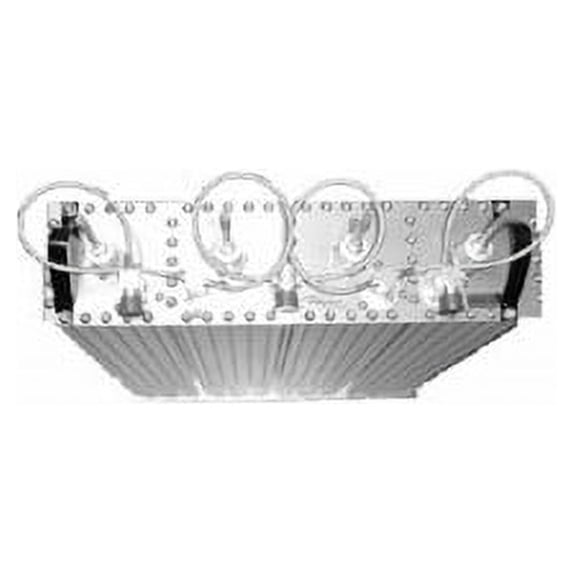

Sinclair - Q2220E - 132-174 MHz Pass Notch Duplexer

SINCLAIR 132-174 MHz Duplexer. Pass- Notch type. 4 cavity. 350W. 0.5 MHz min. sep. 1.5 dB loss. N/female conn. * or field tune Tuning Method < or Field Tune Frequency Range < 132-174 MHz Minimum Separation < 0.5 Number of Cavities < 4 Cavity Size < 4 in Maximum Power Input < 350 W Maximum VSWR < 1.5:1 Insertion Loss (Tx/Ant-dB) < 1.5 Insertion Loss (Rx/Ant-dB) < 1.5 Minimum Isolation < 70 dB Item Width < 19 in Item Length < 4.17 in Item Height < 30.3 in Finish < Alodined Aluminum
