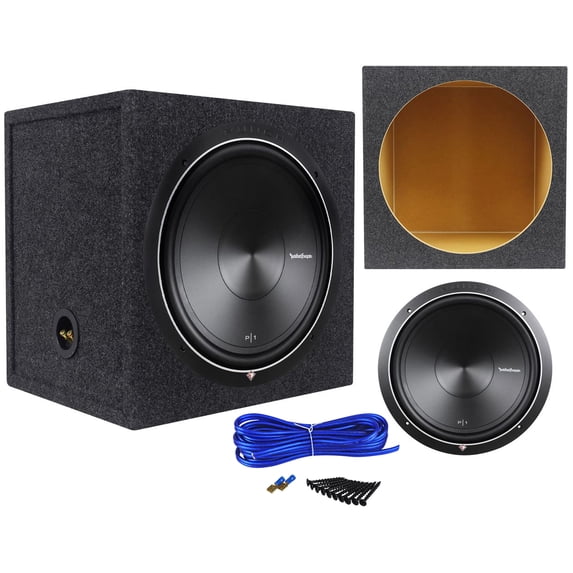

Rockford Fosgate P1S4-15 Punch 15" 500 Watt 4 Ohm Car Subwoofer + Sealed Sub Box
Key item features
Package Includes:
(1) Rockford Fosgate 15" Subwoofer
(1) Rockville RSP115 Sealed Sub Enclosure
10 Drywall Wood Screws (Wood screws are the type of screws; the screws areactually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals
Features for Rockford Fosgate Sub:
Rockford Fosgate P1S4-15 Punch 15" Subwoofer
Size: 15 inches
Peak Power: 500 Watts
RMS Power: 250 Watts
Impedance: 4-Ohm
Custom 10-AWG nickel plated push terminals
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Kevlar fiber reinforced paper cone
Linear spider with embedded 16 AWG tinsel leads
Protective PVC textured magnet cover
Soft touch ABS trim ring with optional grille
StampCast basket with integrated spider venting
Cutout Diameter: 13.85 inches / (351.8 mm)
Mounting Depth: 6.98 inches / (177.2 mm)
Voice Coil Diameter 2.0 inches / (5.16cm)
Magnet Weight: 60 oz / 1.70 kg
Speaker Connector: Dual 10 AWG compression
Woofer Displacement: 0.191 cu.ft / (5.4 Liters)
Shipping Weight: 16.3 Lbs / (7.39 kg)
Fs(Hz): 23
Re(Ohms): 3.60
Le(mH): 3.1
Qms: 3.20
Qes: 0.62
Qts: 0.52
Vas(Liters): 191.5
Sd(cm2): 876
SPL(dB @ 1w/1m): 87.5
Xmax(mm): 9.4
Sealed Enclosure
Vb: 1.58 cu.ft
F3: 42.4 Hz
Qtc: 1.06
Height: 18 inches
Width: 21 inches
Depth: 10 inches
Speaker Cutout:13.85 inches
Speaker Depth: 6.98 inches
Vd: 0.191 cu.ft
Vented Enclosure
Vb: 2.66 cu.ft
Fb: 34.4 Hz
F3: 34.5 Hz
Height: 18 inches
Width: 28 inches
Depth: 12 inches
Np: 1 port
Dp: 4 inches diameter
Lp: 10.8 inches long
Speaker Cutout: 13.85 inches
Speaker Depth: 6.98 inches
Vd: 0.191 cu.ft
Vp: 0.079 cu.ft
Minimum Sealed Box Volume: 0.50 cubic feet
Optimum Sealed Box Volume: 0.75 cubic feet
Maximum Sealed Box Volume: 0.85 cubic feet
Minimum Ported Box Volume: 0.70 cubic feet
Top-Mount Depth: 4.57"
Cutout Diameter: 9.13"
Description Of Rockville Enclosure:
The RSP115 single 15" sealed speaker box is made in the USA with Grade “A” ¾”MDF wood. This enclosure is made with precision cutting machinery by industryexperts that have been making these enclosures in the USA for over 20 years. AllRockville enclosures come with a customized enhanced glue that is unmatched byany other manufacturer. That means that the carpet will stay in place and notrip or tear. The ¾” USA MDF is much stronger then any type of import wood. Thiswill keep your box performing at an optimal level by not flexing and distortingyour woofers. Your woofers will thank you! EVERY Rockville enclosure is not onlyglued at all joints but stapled as well. If that wasn’t enough we add a layer ofsilicon to every seam! This makes your Rockville enclosure rock even more!
Features:
Rockville RSP115 Single 15" Sealed 1.18 Cu. Ft. Subwoofer Enclosure
Proudly Made In The USA, Using Only The Finest Quality Materials - For The BestLevel of Performance From Your Subs!
3/4" USA Heavy Duty MDF Construction
Machine precision cut mounting holes
Top of the line Glue for extra durable adhesion
Designed, tested, and engineered to work with most of today’s popular woofers.These enclosures are built with the quality additives needed to maximize theperformance of any sound system.
Enclosure Measurements:
Type of Enclosure: Sealed
Enclosure Sub Size: Single 15"
Dimensions in Inches: 16.5" Width x 13" Depth x 16.5" Height
Top and Bottom Depth: 13"
Mounting Depth: up to 12.375" (enough depth for any sub on the market)
Specs
How do you want your item?
About this item
Product details
Package Includes:
(1) Rockford Fosgate 15" Subwoofer
(1) Rockville RSP115 Sealed Sub Enclosure
10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals
Features for Rockford Fosgate Sub:
Rockford Fosgate P1S4-15 Punch 15" Subwoofer
Size: 15 inches
Peak Power: 500 Watts
RMS Power: 250 Watts
Impedance: 4-Ohm
Custom 10-AWG nickel plated push terminals
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Kevlar fiber reinforced paper cone
Linear spider with embedded 16 AWG tinsel leads
Protective PVC textured magnet cover
Soft touch ABS trim ring with optional grille
StampCast basket with integrated spider venting
Cutout Diameter: 13.85 inches / (351.8 mm)
Mounting Depth: 6.98 inches / (177.2 mm)
Voice Coil Diameter 2.0 inches / (5.16cm)
Magnet Weight: 60 oz / 1.70 kg
Speaker Connector: Dual 10 AWG compression
Woofer Displacement: 0.191 cu.ft / (5.4 Liters)
Shipping Weight: 16.3 Lbs / (7.39 kg)
Fs(Hz): 23
Re(Ohms): 3.60
Le(mH): 3.1
Qms: 3.20
Qes: 0.62
Qts: 0.52
Vas(Liters): 191.5
Sd(cm2): 876
SPL(dB @ 1w/1m): 87.5
Xmax(mm): 9.4
Sealed Enclosure
Vb: 1.58 cu.ft
F3: 42.4 Hz
Qtc: 1.06
Height: 18 inches
Width: 21 inches
Depth: 10 inches
Speaker Cutout:13.85 inches
Speaker Depth: 6.98 inches
Vd: 0.191 cu.ft
Vented Enclosure
Vb: 2.66 cu.ft
Fb: 34.4 Hz
F3: 34.5 Hz
Height: 18 inches
Width: 28 inches
Depth: 12 inches
Np: 1 port
Dp: 4 inches diameter
Lp: 10.8 inches long
Speaker Cutout: 13.85 inches
Speaker Depth: 6.98 inches
Vd: 0.191 cu.ft
Vp: 0.079 cu.ft
Minimum Sealed Box Volume: 0.50 cubic feet
Optimum Sealed Box Volume: 0.75 cubic feet
Maximum Sealed Box Volume: 0.85 cubic feet
Minimum Ported Box Volume: 0.70 cubic feet
Top-Mount Depth: 4.57"
Cutout Diameter: 9.13"
Description Of Rockville Enclosure:
The RSP115 single 15" sealed speaker box is made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood. This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you! EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!
Features:
Rockville RSP115 Single 15" Sealed 1.18 Cu. Ft. Subwoofer Enclosure
Proudly Made In The USA, Using Only The Finest Quality Materials - For The Best Level of Performance From Your Subs!
3/4" USA Heavy Duty MDF Construction
Machine precision cut mounting holes
Top of the line Glue for extra durable adhesion
Designed, tested, and engineered
Package Includes:
(1) Rockford Fosgate 15" Subwoofer
(1) Rockville RSP115 Sealed Sub Enclosure
10 Drywall Wood Screws (Wood screws are the type of screws; the screws areactually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals
Features for Rockford Fosgate Sub:
Rockford Fosgate P1S4-15 Punch 15" Subwoofer
Size: 15 inches
Peak Power: 500 Watts
RMS Power: 250 Watts
Impedance: 4-Ohm
Custom 10-AWG nickel plated push terminals
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Kevlar fiber reinforced paper cone
Linear spider with embedded 16 AWG tinsel leads
Protective PVC textured magnet cover
Soft touch ABS trim ring with optional grille
StampCast basket with integrated spider venting
Cutout Diameter: 13.85 inches / (351.8 mm)
Mounting Depth: 6.98 inches / (177.2 mm)
Voice Coil Diameter 2.0 inches / (5.16cm)
Magnet Weight: 60 oz / 1.70 kg
Speaker Connector: Dual 10 AWG compression
Woofer Displacement: 0.191 cu.ft / (5.4 Liters)
Shipping Weight: 16.3 Lbs / (7.39 kg)
Fs(Hz): 23
Re(Ohms): 3.60
Le(mH): 3.1
Qms: 3.20
Qes: 0.62
Qts: 0.52
Vas(Liters): 191.5
Sd(cm2): 876
SPL(dB @ 1w/1m): 87.5
Xmax(mm): 9.4
Sealed Enclosure
Vb: 1.58 cu.ft
F3: 42.4 Hz
Qtc: 1.06
Height: 18 inches
Width: 21 inches
Depth: 10 inches
Speaker Cutout:13.85 inches
Speaker Depth: 6.98 inches
Vd: 0.191 cu.ft
Vented Enclosure
Vb: 2.66 cu.ft
Fb: 34.4 Hz
F3: 34.5 Hz
Height: 18 inches
Width: 28 inches
Depth: 12 inches
Np: 1 port
Dp: 4 inches diameter
Lp: 10.8 inches long
Speaker Cutout: 13.85 inches
Speaker Depth: 6.98 inches
Vd: 0.191 cu.ft
Vp: 0.079 cu.ft
Minimum Sealed Box Volume: 0.50 cubic feet
Optimum Sealed Box Volume: 0.75 cubic feet
Maximum Sealed Box Volume: 0.85 cubic feet
Minimum Ported Box Volume: 0.70 cubic feet
Top-Mount Depth: 4.57"
Cutout Diameter: 9.13"
Description Of Rockville Enclosure:
The RSP115 single 15" sealed speaker box is made in the USA with Grade “A” ¾”MDF wood. This enclosure is made with precision cutting machinery by industryexperts that have been making these enclosures in the USA for over 20 years. AllRockville enclosures come with a customized enhanced glue that is unmatched byany other manufacturer. That means that the carpet will stay in place and notrip or tear. The ¾” USA MDF is much stronger then any type of import wood. Thiswill keep your box performing at an optimal level by not flexing and distortingyour woofers. Your woofers will thank you! EVERY Rockville enclosure is not onlyglued at all joints but stapled as well. If that wasn’t enough we add a layer ofsilicon to every seam! This makes your Rockville enclosure rock even more!
Features:
Rockville RSP115 Single 15" Sealed 1.18 Cu. Ft. Subwoofer Enclosure
Proudly Made In The USA, Using Only The Finest Quality Materials - For The BestLevel of Performance From Your Subs!
3/4" USA Heavy Duty MDF Construction
Machine precision cut mounting holes
Top of the line Glue for extra durable adhesion
Designed, tested, and engineered to work with most of today’s popular woofers.These enclosures are built with the quality additives needed to maximize theperformance of any sound system.
Enclosure Measurements:
Type of Enclosure: Sealed
Enclosure Sub Size: Single 15"
Dimensions in Inches: 16.5" Width x 13" Depth x 16.5" Height
Top and Bottom Depth: 13"
Mounting Depth: up to 12.375" (enough depth for any sub on the market)
