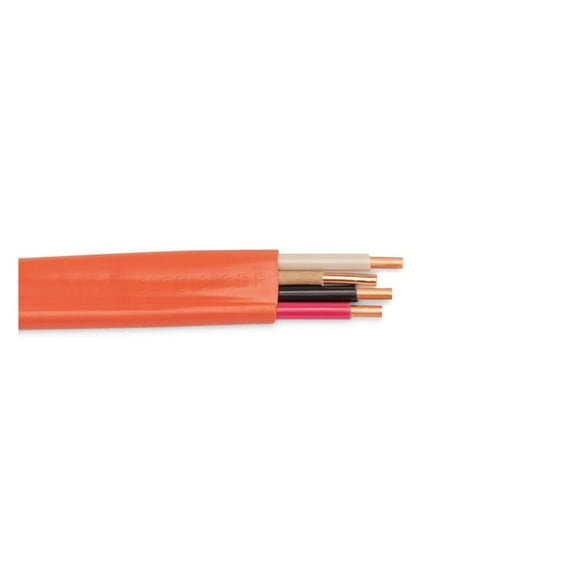

10/3 NM-B, Non-Mettalic, Sheathed Cable, Residential Indoor Wire, Equivalent to Romex (70Ft Cut)

Applications:Non-metallic sheathed NM-B cable is used in normally dry installations in residential wiring, as branch circuits for outlets, lighting and other residential loads. Its applications are outlined in 2008 and 2011 Article 334. NM-B is rated at 600 volts and although it is rated at a conductor temperature of 90°C dry , its ampacity is limited to 60°C according to the 2008 and 2011. It may be fished through masonry or tile walls, where not exposed or subject to excessive moisture or dampness. NM-B cables are LEAD and RoHS compliant. Equivalent to Romex NM-B.Standards:Meets or exceeds all applicable specificationsUL Standard 83: Thermoplastic Insulated Wires and CablesUL Standard 719: Non-Metallic CablesFederal Specification A-A-59544 and requirements of the NECVoltage rating - 600 voltsConstruction:Insulation:Color coded polyvinyl chloride (PVC) compound with a nylon covering meeting the required thickness of Type THHN. Conductor insulation is rated 90℃CSheath:30 mil color coded PVC sheath rated 90℃C is applied over the completed assemblySpecifications:Size:#10 AWGNumber of Conductors:3PVC Insulation Thickness:0.51 mm / 0.020 inchesGround Wire Size:10 AWGNylon Thickness:0.100 mm / 0.004 inchesNominal Cable Dimensions: 10.9 mm x 0.43 inchesWeight per Foot: 0.163 lbsAllowable Ampacity: 30 Amps
