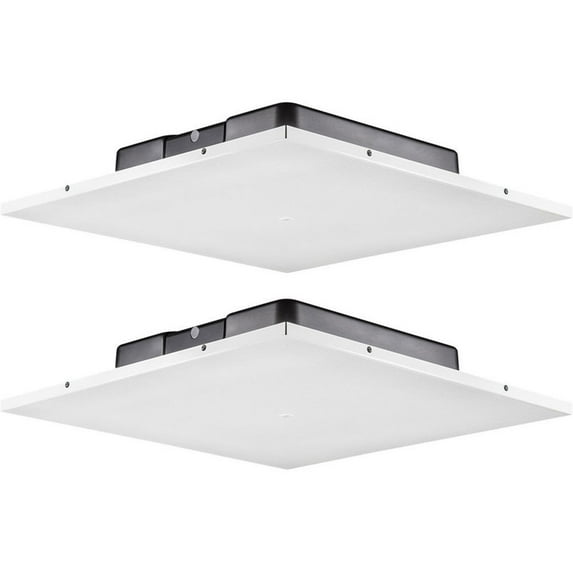

LCT 81C/T Low-Profile Lay-In 2' x 2' Ceiling Tile Loudspeaker with 200 mm (8 in) Driver

(No ratings yet)

Key item features

Effortless Installation: Designed for easy lay-in installation into 2' x 2' US-style suspended grid ceilings, eliminating the need for cutting ceiling tiles.
Compact Design: Features a very low-profile depth of just 103 mm (4.1 in), allowing it to fit into shallow ceilings or spaces with obstructions.
Versatile Power: Offers combined 70V/100V and low impedance direct operation, with a 10 Watt multi-tap transformer and an 8-ohm direct setting.
Optimized Performance: Equipped with a high-efficiency 200 mm (8 in) dual-cone driver, providing 96 dB sensitivity for maximum sound level and high speech intelligibility.
Safety Certified: UL1480A and UL2043 certifications ensure suitability for use in ceiling plenum spaces, meeting safety standards for air handling environments.
Robust Construction: Built with a steel rear enclosure, front baffle, and a white perforated metal grille for durability and a clean aesthetic.

Generated by AI

Specs

Home speaker & subwoofer type
Surround Sound Speakers
Recommended location
Indoor
Brand
JBL
Color
Black
Wireless
N
Woofer size
8 in

Current price is $320.00

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $36.00

4-Year Plan - $49.00

How do you want your item?

Ships to

Arrives by Sat, Jun 27

Order within 5 hr 18 min

Sold and shipped by Electronics Expo (Authorized Dealer)

4.605762473647224 stars out of 5, based on 1423 seller reviews(4.6)

Free 30-day returns

More seller options (1)

Starting from $320.00

About this item

Product details

LCT 81C/T is a full-range ceiling speaker designed to lay into a 2 ft x 2 ft US-style suspended grid ceiling, with no cutting of ceiling tiles required, making for an easy and cost-effective installation with a minimum of mess. The low profile depth of only 100 mm (4 in) allows the speaker to fit in locations where deeper loudspeakers do not. This loudspeaker is designed to provide excellent performance for paging and light-to-medium music in a wide variety of applications, including education classrooms, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, meeting rooms, and more. The very high sensitivity of 96 dB provides maximum sound level, even at low tap settings. LCT 81C/T contains a 200 mm (8 in) dual-cone driver with a very high 96 dB sensitivity. The driver features a 25 mm (1 in) diameter voice coil with a Kapton coil-former and high-temperature wire for better power dissipation and long-term reliability. The speaker's built-in 10 Watt transformer provides versatility by allowing use on 100V or 70V distributed loudspeaker lines, as well as at 8 ohms (low impedance) for driving directly from a low impedance power amplifier. Adjusting is convenient via a rotary switch on the side of the rear enclosure. Two safety seismic attachment tabs are provided for securing to ceiling deck, plus 4 holes are provided -- one in each corner. The color of the perforated grille is white.

JBL LCT 81C/T Low-Profile Lay-In 2' x 2' Ceiling Tile Loudspeaker with 200 mm (8 in) Driver

High efficiency 200 mm (8 in) dual-cone driver.
Easy lay-in installation into 2' x 2' US-style suspended grid ceilings. No cutting of ceiling tiles is necessary.
Perforated metal grille included.
Combined 70V/100V and low impedance direct operation.
20 Watts at 8Ω (low-impedance) direct setting.
10 Watt multi-tap at 70V/100V with taps at 10W, 5W, 2.5W (and 1.3W for 70V only)
Very low-profile at just 103 mm (4.1 in) deep, to fit into ceilings that are shallow or that contain obstructions.
Easy bare-wire connection in protected compartment. Wire entrance from either top or side via knock-out.
Very high 96 dB sensitivity turns power from small amplifiers into maximum sound level for listeners.
Designed for high speech intelligibility.
100° coverage pattern (conical).
UL1480A and UL2043 certifications for use in ceiling plenum spaces.
Transducer: High-efficiency 200 mm (8 inch) dual-cone driver with 25 mm (1 in) diameter voice coil, Kapton coil former, and high-temperature voice coil wire.
Frequency Range(-10 dB): 100 Hz – 16 kHz
Nominal Sensitivity: 96 dB
Nominal Coverage Angle: 100° conical coverage (ave. 1 kHz - 4 kHz)
Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 108 dB peak (at 8Ω setting)
Nominal Impedance: 8 ohms (in Direct/Thru 8Ω setting)
Transformer Taps: 10 W, 5 W, 2.5 W @ 70V or 100V (plus 1.3 W @ 70V only)
Recommended ProtectiveHigh Pass: 90 Hz high-pass (24 dB/oct) for 8Ω direct or any 70V or 100V tap setting
Power Capacity(at low-Z): 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise
Input Connector: Bare wire inside protected in touch-proof wiring compartment.
Tap Selector: Rotary switch accessible from side of backcan
Materials: Steel rear enclosure, front baffle, and perforated grille
Safety Agency: Suitable for use in air handling spaces certified per UL1480A, Speakers for Commercial and Professional Use; UL2043, Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products Installed in Air-Handling Spaces; NFPA90 & NFPA70; S7232/UL Listed, Signaling Speaker.
