Ives 7255-Set Center Hung Base Plate Mounted Brass Pivot Set 500 Pound Maximum Load -

Center Hung Base Plate Mounted Brass Pivot Set 500 Pound Maximum Load

This center hung base plate mounted brass pivot set 500 pound maximum load is for doors with a maximum load of 500 pounds and is non handed. These pivots have precision bearings for smooth operation. Stainless steel machine screws and wood screws are standard with all pivots.

Features:

• Non-Handed
• Maximum Load is 500 Pounds
• Clearance From Bottom Edge of Door to The Floor Mounting Surface is Adjustable From 3/16" to 3/4" By Varying The Depth of The Mortise In The Bottom Rail of The Door Over 3/4" From The Door to Floor Mounting Surface, Consult Factory
• Vertical Adjustment Based On Mortise Preparation In Bottom Rail of The Door
• Meets ANSI/BHMA Grade 1

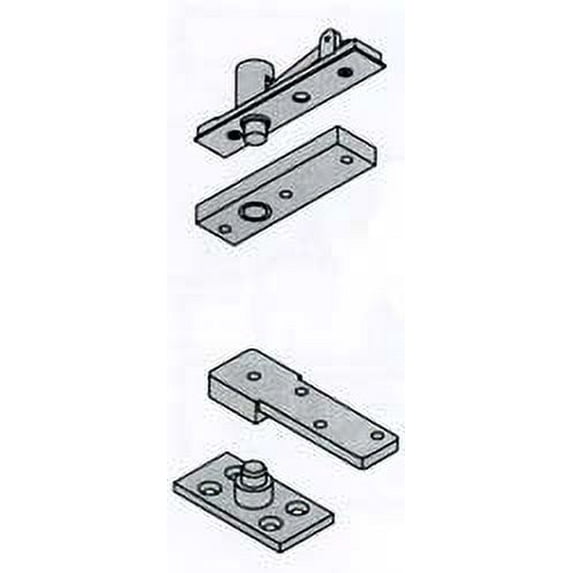

• Center Hung Pivot Set Consisting of Base Plate Mounted 7255J Bottom Pivot and a Head Frame Mounted 7255 Top Pivot
• Door Thickness Minimum of 1 3/4"
• Radius Stop to Clear Heel Edge of Door
• Pivot Distance of 1 3/4" Minimum From Jamb to Centerline of Pivot Pin Radius Heel Edge of Door, 1 5/8" Recommended

IVES has produced a full line of quality building hardware for over 120 years Throughout this time, IVES has adhered to the firm convictions of its founder, Hobart B Ives, that the success of a company is dependent on two major factors — product quality and customer service Today, IVES reputation is known for these core principles Emphasis is also placed on application flexibility and value IVES extensive hardware line includes a variety of pivots, flush bolts, push/pull handles, kick plates, doorstops, hinges and more
