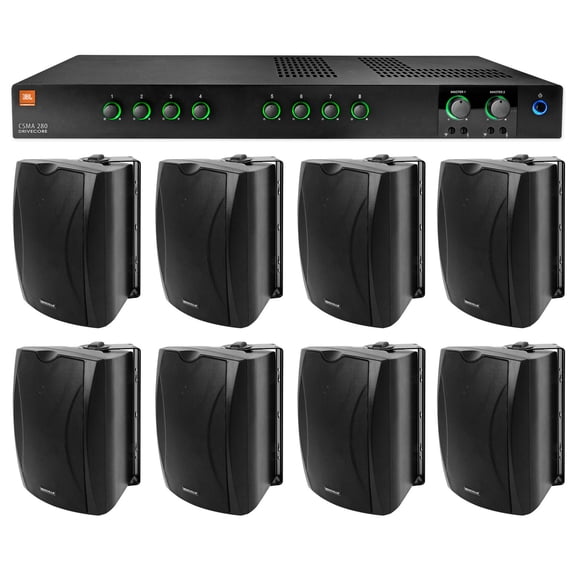

JBL CSMA280 Commercial/Restaurant 70v Amplifier+(8) Black 6.5" Wall Speakers
JBL CSMA280 Commercial/Restaurant 70v Amplifier+(8) Black 6.5" Wall Speakers
Hero image 0 of JBL CSMA280 Commercial/Restaurant 70v Amplifier+(8) Black 6.5" Wall Speakers, 0 of 13

JBL CSMA280 Commercial/Restaurant 70v Amplifier+(8) Black 6.5" Wall Speakers

(No ratings yet)

Key item features

  • Package Includes: (1) JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V, 8 inputs. (8) Rockville WET-6B 70V 6.5" IPX55 Commercial Indoor/Outdoor Wall Speakers - Black. Features: JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V and 8 inputs. For Commercial and Industrial Use. 80W into 8 or 4 Ohm Loads. 10W Per Channel. 8 Input Channels, 2 Output Channel. Usable with 70 & 100V Systems. Euroblock Mic/Line & RCA Inputs. Hi-Z & 27V Phantom Power Switches
  • Sleep Mode & 2 Auxiliary Outputs. Voice Activated Ducking & Priority Mute. Specifications: Maximum Output Power: 800 W per channel into 4 Ohms or 8 Ohms, 1 kHz, ? 0.5% THD. Insertion Loss:1 dB maximum for 70 and 100 V outputs. Continuous Power: 10 W per channel. Line Output Level: 5.0 V RMS into 10 kOhms. Input Sensitivity: To obtain full rated power at 8 Ohms (or 5 VRMS to line output). Mic Input: 3 mV RMS. Line Input: 775 mV RMS. RCA Input: 300 mV RMS
  • Number of Channels: Input: 8, Output: 2.. Frequency Response: Measured at 2.83 V RMS into rated load impedance at any output. 4/8 Ohms Output: 20 Hz - 20 kHz, 2 dB. 70 V/100 V Outputs: 80 Hz - 15 kHz 2 dB. Line Out: 20 Hz - 20 kHz, 1 dB. Total Harmonic Distortion (THD): Measured at 2.83 V RMS into rated load impedance at any output. Power Amplifier Output: <0.5%, 20 Hz to 20 kHz. Line Output: 0.05% typical. Signal to Noise Ratio: > 90 dB
  • Nominal Input Impedance: Mic: 400 Ohms. Line: 20 kOhms (balanced). RCA: 50 kOhms.. Minimum Load Impedance: Low Impedance Output: 4 Ohms. 70 V Output: 120 Ohms. 100 V Output: 240 Ohms.. Crosstalk: -70 dB @ 1 kHz. Controls: Front Panel: 8 x Input level rotary knobs. 2 x Output volume-attenuating knobs. 1 x Power switch. 2 x Bass potentiometers. 2 x Treble potentiometers. Rear Panel: 2 x Input-routing dip switches (including phantom and Hi-Z switches). 8 x Mic/Line selector switch
  • 2 x Vox adjustment switches. Indicators: Front Panel: 8 x Input signal presence ring, green. 2 x Output volume ring, green. 1 x Power switch ring, green/blue. Connectors: Rear Panel: 1 x IEC power input. 2 x Aux out connection points. 6 x 3-pin euroblock connectors. 6 x 3-pin euroblock connectors. 2 x 5-pin euroblock connectors. 6 x Dual RCA input connectors. 2 x RJ45, remote volume. Operating Temperature / Humidity: 32 to 95F / 0 to 35C, 95% RH (non-condensing)
Current price is $1,097.99
Price when purchased online
Out of stock

How do you want your item?

How do you want your item?
Out of stock

About this item

Product details

Specifications

Warranty

Customer ratings & reviews

0 ratings|0 reviews
This item does not have any reviews yet
