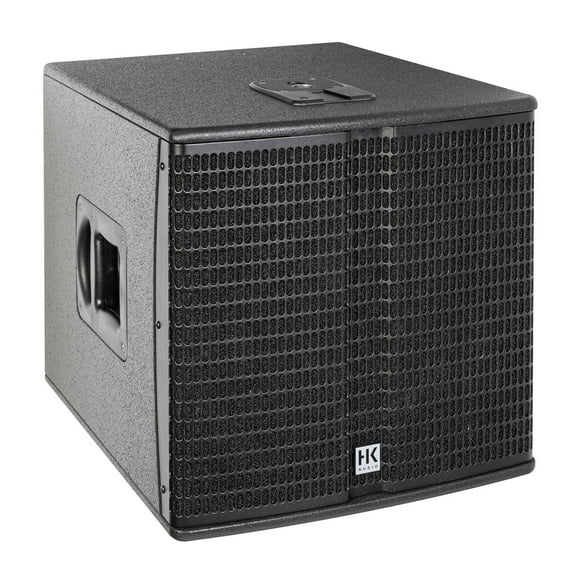

HK Audio ELEMENTS E 115 Sub D 2400 Watt 15" Active Subwoofer

2400W Active Subwoofer

In combination with the 1500-watt power amplifier, the 15" woofer achieves considerably more sound pressure right into the low end. As a system subwoofer, it also offers a 900-watt power amplifier as a powerful drive for up to three E 835 mid/high units. High-performance 15" system subwoofer with 2,400 watts total power (1,500 watts for bass and 900 watts for up to three E 835 mid/high units). Integrated, network controllable DSP with 4 presets and Plug-n-Play Cardioid Out. Full control over all functions, EQ, limiter, delay, presets etc. HK Audio DSP CONTROL software for full compatibility with LINEAR 7, can be operated together with LINEAR 7 speakers in the same network. Subwoofer can be expanded with the LINEAR SUB 1500 A, also as a Cardioid setup. Perfect expansion for existing ELEMENTS users thanks to compatibility with E 835/435 and the EP 1/2 and EF 45 accessories. Extremely simple handling: even a large Cardioid setup with two 15" basses and three E835s can be transported in a station wagon and set up by a single person. 5-year manufacturer after registration.

• Finish: Water-based paint, black
• Watts: 2400W
• 10 % THD Maximum SPL: 125 dB, @ 90 Hz, half space
• 10 % THD Maximum SPL Peak: 128 dB, 40 Hz - x-vver, Half Space
• (+/-3 dB)Frequency Response: 48 Hz x-Over
• 10 dB Frequency Response: 44 Hz - x-over
• Power Amp Output Bass: 1500W
• Power Amp Output Column: 900W
• Amp Type: Class D
• LF Driver Size: 1 x 15"
• Active Crossover Frequency: 160 Hz
• Analog Inputs: 1 x XLR combo balanced
• Analog Thru: 1 x XLR balanced
• Cardioid Out: 1 x XLR Balanced
• Network Port: Ethercon RJ45, 1x In, 1x Thru
• Filter Presets: 1x E 835, 2x E 835, 3x E 835, Remote
• Remote Software: DSP Control (Windows, Mac OS)
• Sample Rate: 96 kHz
• System Latency: Less than 2.6 ms
• Mains Connector: 1 x Power on NAC3 In, 100 240 V
• Speaker Outputs: 1 x E-Connect, 1x Speak on
• Power Consumption: 1 A/100 240 V nominal according to EN 62368-1
• Carrying Handles: 2 x MultiGrip
• Housing: MDF
• Front Grille: 2 mm Metal grille backed with black acoustic foam
• Country of Origin: Germany
• Dimension: 48.5 x 48.5 x 59.5 cm
