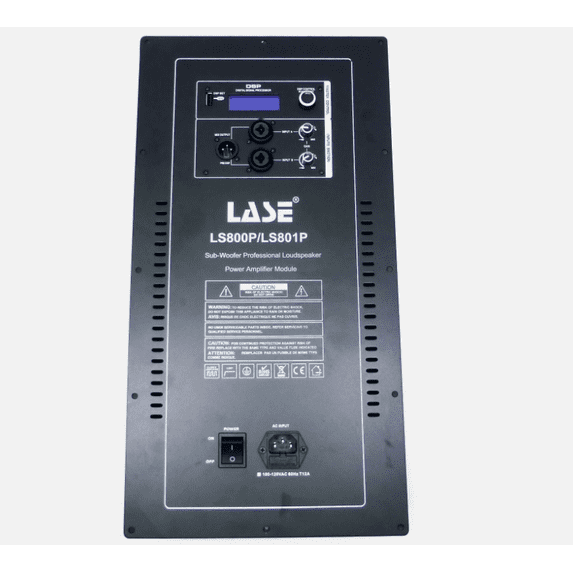

LASE Amplifier Module for YORKVILLE LS801P LS800P SUB Woofer with DSP Class D wiring

LASE Amplifier Module Intended for YORKVILLE LS801P, LS800P SUB Woofer w/DSP

Key item features

Powerful Output: Delivers 1200W output power (5% peak 2000W) at 8 ohms, with a frequency response of 45Hz to 250Hz.
Integrated DSP: Features DSP modes including Music, Live, and DJ, alongside a line volume control for versatile sound customization.
Robust Protection: Incorporates comprehensive protection against DC, short circuit, high temperature, input/output overload, and a soft startup protect.
Efficient Design: Utilizes Class TD wiring amplifier with an efficient cooling system, including a 100% pure copper heat sink and fan.
Convenient Connectivity: Equipped with 3-pin XLR Combo input connectors and 3-pin XLR output connectors, plus an In/Out Phase switch (0 - 180*).
Compact Dimensions: Measures 19" x 10" x 3.75" (outer lip) and 17.5" x 8.5" x 3.5" (chamber), with a net weight of 8.6 lbs (3.90 Kgm).
Easy Installation: Designed as a completely enclosed module for straightforward installation, suitable for Yorkville ELITE LS801P / LS800P subwoofers.

Generated by AI

Specs

Is powered
Y
Rms power rating
1200 W
Subwoofer type
Subwoofer
Impedance
8 ohm
Peak audio power handling
2000 W
Freq range
45Hz.....250Hz

Current price is $349.00

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $36.00

4-Year Plan - $49.00

How do you want your item?

Ships to

Arrives between Jul 8 - Jul 10

Sold and shipped by LASE

4.333333333333333 stars out of 5, based on 6 seller reviews(4.3)

Free 30-day returns

About this item

Product details

New ! Complete LASE ReDesigned SUB Woofer Power Amplifier Module for Yorkville ELITE LS801P / LS800P Features : Completely Enclosed for easy installation. Reliable sound quality. Class D wiring amplifier. Efficient cooling system,100% pure copper heat sink with Fan In/Out Phase switch 0 - 180*. XLR input and link connectors. Low-Pass Crossover 80Hz -250Hz 24db/oct. Comprehensive protection and warning.

Specifications :
- Power Rated @ 8 Ω ONLY.
- Output Power : (LF) 8ohm(THD+N<1%)
- Power Output : 1200W ± 5% Peak 2000W
- DSP Mode : Music/Live/DJ.
- Volume Control : Line Volume.
- Frequency Response: 45Hz.....250Hz 24db/oct.
- THD : <1%
- Residual Noise(Short Circuit input) : <5mV A
- Signal-to-Noise Ratio : >95 dBA
- Sensitivity :Line: - 10dBu ±1dB @100Hz
- Channel separation : (Crosstalk) at 1 kHz >70 dB
- Input Connectors (per channel) : 3-pin XLR Combo, electronically balanced
- Output Connector : 3-pin XLR.
- Protection : DC / Short circuit/High Temp./Input/Output Overload Protect.
- Soft Startup Protect : 1-2 sec.
- Wiring Class : TD
- Operating voltage : AC 115V 50Hz/60Hz.
- Dimensions : (L×W×D) :
19" x 10" x 3.75"(482.6mm x 254mm x 95.25mm)
Outer Lip
17.5" x 8.5" x 3.5" (444.5mm x 215.9mm x 88.9mm)

Chamber
- Packing dimension : 20" x 11" x 5" (508mm x 279.4mm x 127mm)
- Net weight :8.6lbs (3.90Kgm)
- Gross weight :10lbs(4.53Kgm)
- Mounting Hole Size : 5.5" x 11.5" (139.7mm x 292.1mm).
