Springfield Boat Seat Pedestal 1280112-SMAL | Fixed 2 7/8 x 13 Inch

Boat part number 1111647 is a new Track-Lock 2 7/8" seat pedestal from Springfield Marine, part numbers 1280112-SMAL / 3100521-LL1 .

Features:

• High-strength aluminum
• Large 7 1/4" x 13" seat mounting platform
• Travels 5 1/4" forward and backward on self-lubricating pads
• Centrally located locking handle, easy to reach with the left hand
• Rotates 360°

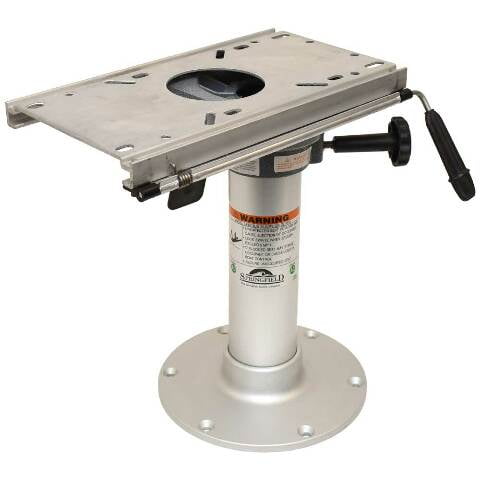

This fixed height seat pedestal is constructed out of aluminum with a matte finish. Features a Trac-Lock swivel slide and mount with left locking handle, and a 2 7/8" Dia. post diameter. There are (6) 3/8" Dia. mounting holes. Manufacturer calls this a 13" pedestal; we measure it to be approximately 14 1/2" in overall height.

Approximate measurements:

• Post Diameter: 2 7/8" Dia.
• Mount Dimensions: 13" L x 7 1/4" W
• Manufacturer Height: 13"
• Overall Height: 14 1/2"
• Base Diameter: 9" Dia.

See photos for measurements.

Specifications:

• Part Manufacturer: Springfield Marine
• Series: Trac-Lock
• Part Number: 1280112-SMAL / 3100521-LL1
• Material: Aluminum
• Color: Silver
• Finish: Matte
• Mounts: (6) 3/8" Dia. mounting holes

Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.

Hardware and instruction / installation manual not included.
