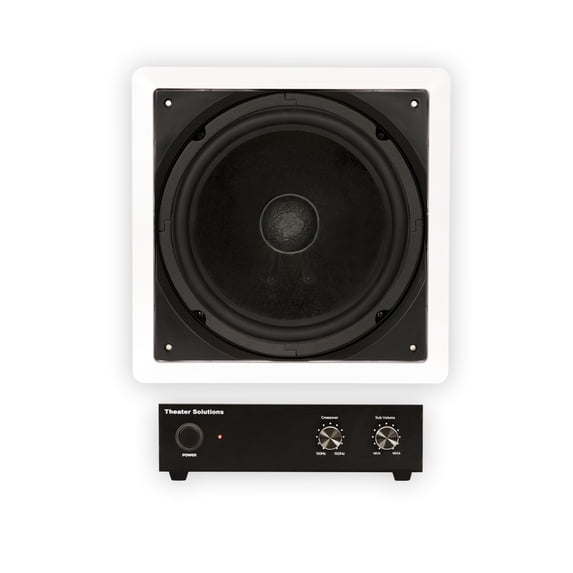

Theater Solutions TS1000 Flush Mount 10" Subwoofer Speaker and Amp Set

Theater Solutions by Goldwood TS1000 Flush Mount Subwoofer Speaker and Amp Set
Streamline in wall passive subwoofer, the perfect alternative to clunky sub boxes
Traditional Passive design, send signal from your home receiver to sub amp and then to speaker
Flush Mount low profile housing installs easy with unique Pressure Lock Mounting System
10" Poly Treated woofer with butyl rubber surround
2nd Order 12dB per Octave Crossover
Frequency response is 22-200Hz with 92dB at 8ohm
Pressure Lock Mounting System clamps tight to drywall with No Hardware Needed
Fits square speaker hole size of 10.625" x 10.625" with a mounting depth of 3.625"
Overall speaker size of 12.0625" x 12.0625" with Spring Loaded raw wire connections
Durable ABS Housing and Removeable Grill can be painted to match your décor

Acoustic Audio by Goldwood WS1005 Passive In Wall Subwoofer Amplifier
This amp is the key to integrating your home receiver and in wall passive subwoofer
Receives LFE or RCA inputs from receiver and raw wire outputs to sub speaker
Total system power of 200 watts
Frequency Response of 50 - 200Hz at 4-8ohm
Volume and Crossover Control knobs
LFE and RCA inputs for use from a home audio receiver and Raw Wire outputs to sub
Power Supply of AC 18V and Fuse of 3A / 250V included
Compact size of (H x W x D): 2.25" x 8.5" x 6"

System Requirements
Any home audio receiver with RCA passive sub output
CL3 Rated in wall certified raw speaker wire to connect your amp to the speaker

Applications
Home Theater Systems
Surround Sound Systems

What's in the box
1 Flush Mount Passive Subwoofer with Removeable Grill and Cut-Out Template
1 Powered Amplifier with power supply
6 Foot RCA Cable and RCA Connector "Y" Adapter
Instruction Manual
