WiFi6 Outdoor Router AX3000 Access Point, Dual Band WiFi Router Mesh Extender with PoE/ Weatherproof

The Professional Outdoor Access Point, Make You Enjoy Super-Speed WiFi6 Anytime & Anywhere
This WN588HX3 WiFi 6 router is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; 6x7dBi high gain antennas provide better wireless performance and super fast transmission rates; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps+5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 256 devices to be connected simultaneously in a wider range.

Features:
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.

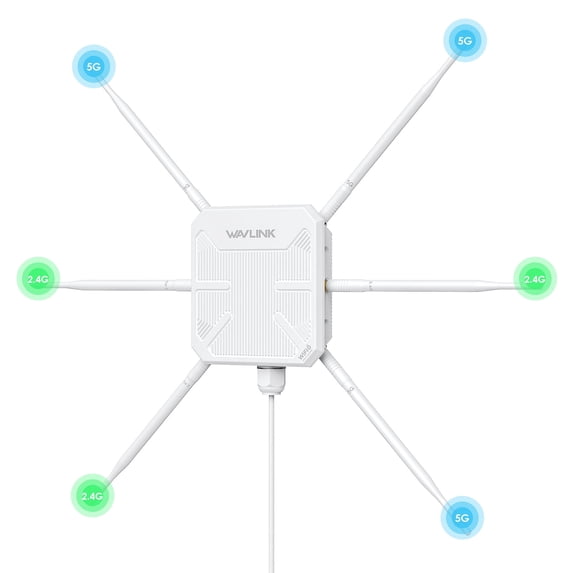

- 3x7dBi 5GHz, 3x7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with our brand AC controller.

Warm Tips:
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④The real performance of the product may vary in accordance with different environmental conditions.

573Mbps on 2.4G & 2402Mbps on 5G
Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

Access More Devices
Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.

Worry-Free WiFi Coverage
Enhanced by built-in high-power amplifiers and 6x7dBi omni-directional antennas to extend outdoor signal coverage up to 300m(984ft).

How to Install the Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.

In the Box:
- 1 x AX3000 WiFi 6 Outdoor Access Point
- 4 x Plastic Cable Ties
- 1 x Main Body Holder
- 6 x 7dBi Antennas
- 1 x Wrench
- 1 x 54V Power Adapter
- 1 x PoE Converter
- 1 x Ethernet Cable
- 1 x PWM M3 x 5 x 6MM Screw
- 6 x KA M3 x 20 x 5.2MM Screws
- 6 x 6.5x25MM Screw Plugs
- 1 x Quick Start Guide
