Descrtion:
The W5500 module is based on the WSi500 W5500 module, the module the entire hardware TCP / protocol stack, without the need to implement the TCP / protocol stack.
transfer rate of 10 / 100MBPS.
Sleep and Wake are supported in the integrated 32K TX / Rxlev cache.
Support 8 ports to the same time, Module 3.3V or 5V , which is convenient for users to use in SCM system. Module and MCU system protocol.
Support frequency up to 80M, provide and 51 SCM client, server, three UDP routine modes.
Specification:
Hardware support TCP / protocols: TCP, UDP, , IGMP, v4, ARP, IGMP, PPPoE and .
eight ports (sockets).
It provides sleep .
WOL provided.
Support high-speed bus ( ).
32K bytes of internal memory / Rxlev buffer.
Embedded 10 / 100Mbps Physical Layer.
It auto-negotiation (10 / 100Base full / half duplex).
fragmentation is not supported.
3.3V operating voltage, I / O port can withstand 5V voltage.
Multle indicator signal output (full / half duplex , network connectivity and network speed).
Package Includes:

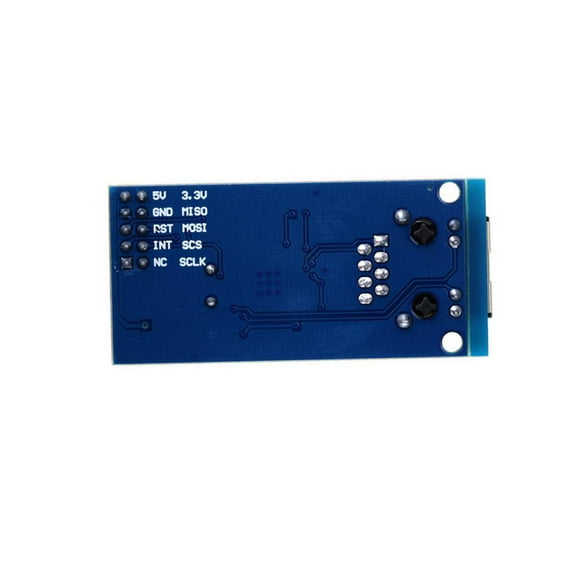

1 Piece W5500 Network Module
