Voilamart 48V 1000W E Bike Conversion Kit Ebike Conversion Kit Mens Bike Electric Bike Kit Ebike Kits Electric Hub Motor 20 inch Front Wheel Hub Motor E Bike Kit Electric Motor Kits for Bikes

Key feature:
* Built to the highest international standards, CE, EN15194
* 48V 1000W and 750W super power brushless gearless hub motor
* Restricted to 750W and 24 mph by default as a road-legal kit
* Nylon tire& alloy rim& galvanized steel spoke
* Rare-earth metal magnet are used in the motor to efficiently produce large power
* Aluminum alloy powerful controller guarantee big current supply
* Twist throttle has battery level display and power-cut off button
* Brake Levers cut off the power supply to the motor safely
* Crank speed sensor for pedal assist
* Aluminum alloy powerful controller

Upgraded Intelligent Motor Controller:
* Allow you to swap two power modes between the full 1000W power or 750W power by a single blue switch wire is embedded in controller.
(Only for Twist Throttle)
* Still remain the full 1000W power with no speed control.(Only for Pedal Assist System,"PAS")

Note:
1.The system requires a 48 Volt electrokinetic cell battery with a nominal capacity not less than 11.6Ah.
2.Battery and charger are not included in package.
3.The US regulations dictate that a kit must not exceed the rated power of 750W to be road-legal!
So please connecting the Road-legal Switch Wire and disconnect the PAS on Road.

Caution: For your Safety, Please turn off the battery before connecting the Controller！

Specifications:
Wheel type: Front Wheel
Motor: Brushless Gearless
Tire: Nylon
Rim: Alloy
Power: 1000W / 48V or 750W / 48V
Torque: 45 N.M
Max speed: 28 mph or 24 mph
Wheel Size: 20"
Max load capacity: 440 LBS
Net weight: 10.5kg
Wheel Axle: 175 x Φ10mm

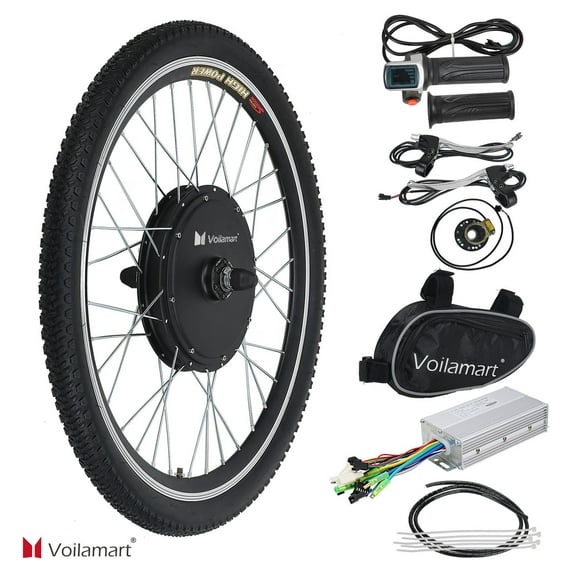

Package Included:
1x Brushless Gearless Motor Front Wheel
1x Intelligent Motor Controller
1x Pedal Assist Crank Sensor
1x Cable Ties & Plastic Coil
1x Pair of Handle Bars (included Twist Throttle)
1x Controller Bag
1x Pair of Brake Handles
1x Manual
