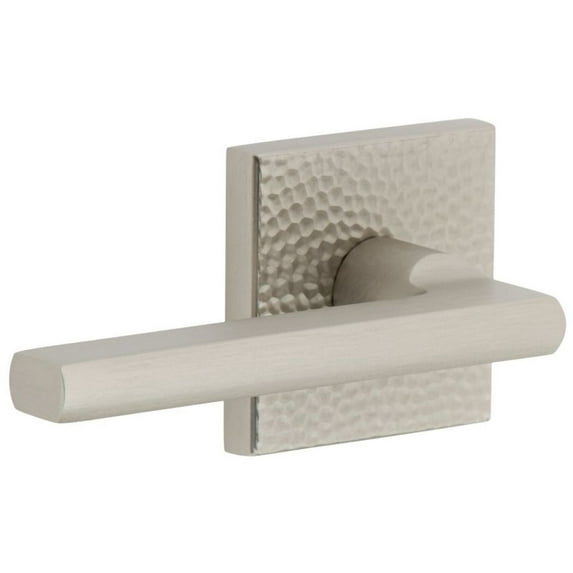

Viaggio Qadmhmmil_Prv_238_Lh Quadrato Hammered Left Handed Solid Brass Privacy Door Lever

The precise lines of the Quadrato Rosette provide a crisp display of modern simplicity. With meticulous corners and mathematical symmetry, the hammered texture adds interest to this square rosette. Captivate attention with the Milano lever’s fusion of subtly sculpted arcs and planar surfaces. All Viaggio products are made with longevity and durability in mind so they can be enjoyed for generations to come.

Privacy: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

• Limited lifetime mechanical warranty
• Made from solid forged brass and precision polished for superior quality
• Concealed screw mechanism (CSM) for clean, uncomplicated style with no visible screws
• Includes a complete set for both sides of one door
• Easy to install and works with modern pre-drilled doors
• All necessary mounting hardware is included

Includes:

• Knob and plate assemblies
• One (1) strike plate with two (2) wood screws
• One (1) square corner latch faceplate
• One (1) latch
• One (1) plastic anti-rotation block
• One (1) CSM sub plate
• One (1) CSM spindle
• One (1) plastic brass bushing
• One (1) bushing tool
• One (1) nylon washer
• One (1) hex wrench
• One (1) privacy pin and extender
• Mounting Hardware

Specifications:

• Backset: 2-3/8"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Left
• Handle Length: 5"
• Handle Projection: 2-1/16"
• Trim Width: 2-1/2"
• Trim Height: 2-1/2"
• Product Weight: 4.3 lb.
• Latch Faceplate: Square Corner
