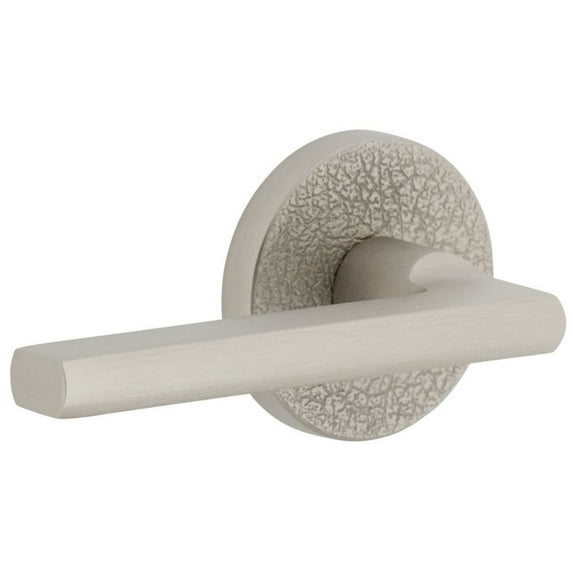

Viaggio Clomltmil_Prv_234_Lh Motivo Left Handed Solid Brass Privacy Door Lever Set -

Viaggio hardware is made in Europe and hand-assembled in the US. Each piece is created from solid-forged brass, and then precision polished for the sleekest looks. All Viaggio Hardware comes standard with luxury concealed screw mechanism for a clean installation, leaving no visible fasteners.

The Circolo Rosette’s soft geometry offers a stunning look with cultured elegance. The bold curves and circular shape combined with the organic leather texture add depth and subtle flair to contemporary settings. Captivate attention with the Milano lever’s fusion of subtly sculpted arcs and planar surfaces. All Viaggio products are made with longevity and durability in mind so they can be enjoyed for generations to come.

Privacy: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

• Made from solid forged brass and precision polished for superior quality
• Features concealed screw mechanism (CSM) for clean, uncomplicated style with no visible screws
• Includes a complete set for both sides of one door
• Easy to install and works with modern pre-drilled doors
• Lifetime mechanical warranty
• Comes with all necessary mounting hardware

Includes:

• Knob and plate assemblies
• One (1) strike plate with two (2) wood screws
• One (1) square corner faceplate
• One (1) latch
• One (1) plastic anti-rotation block
• One (1) CSM sub plate
• One (1) CSM spindle
• One (1) plastic brass bushing
• One (1) bushing tool
• One (1) nylon washer
• One (1) hex wrench
• One (1) privacy release key
• One (1) privacy pin and extender
• Mounting hardware

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-5/8"
• Handing: Left
• Handle Length: 5"
• Handle Projection: 2-1/16"
• Trim Width: 2-1/2"
• Trim Height: 2-1/2"
• Product Weight: 4.25 lbs
• Latch Faceplate: Square Corner
