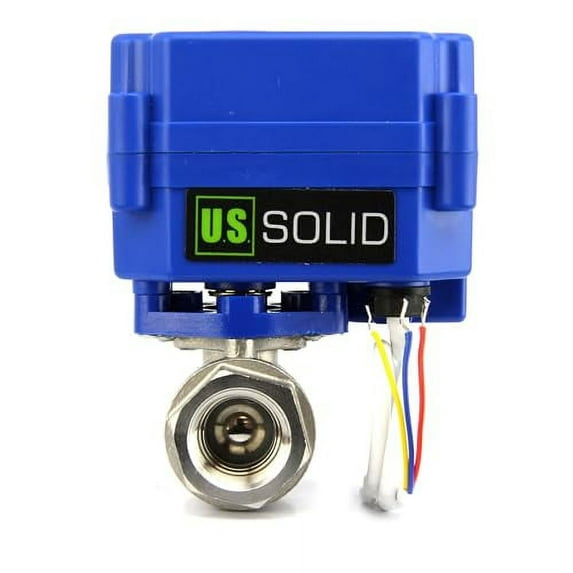

Hero image 0 of U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 3 Wire 1 Way Wiring Blue Casing, 0 of 7
U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 3 Wire 1 Way Wiring Blue Casing
(No ratings yet)
U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 3 Wire 1 Way Wiring Blue CasingU S Solid Motorized Ball Valve 1 2 inch Stainless Steel 9 24V AC DCU S Solid Motorized Ball Valve 3 4 inch Brass 9 24V AC DCU S Solid Motorized Ball Valve 1 2 inch Brass 9 24V AC DCU S Solid Motorized Ball Valve 1 inch Stainless Steel 9 24V AC DCU S Solid Motorized Ball Valve 1 inch Brass 9 24V AC DCU S Solid Motorized Ball Valve 3 4 inch Stainless Steel 9 24V AC DC
Material:Stainless Steel
Size:1/2 in
Key item features
- IP65 Rating: protection from water jets from any direction. If permanently installed outdoors, it is advisable to place it in a shaded area or in a protective enclosure to prevent prolonged exposure to rainwater.
- Full port. The internal diameter of the valve matches that of the connected pipe.
- 3 Wire 1 way wiring. DC: Connect both the red and yellow wires to the positive pole(+), and the blue wire to the negative pole(-) to open the valve. To close the valve, keep only the red wire connected to the positive pole(+), disconnect the yellow wire, and connect the blue wire to the negative pole(-). Disconnecting any wire will maintain the valve's current state. AC: Connect both the red and yellow wires to either pole, and the blue wire to the other pole to open the valve. To close the valve, keep only the red wire connected to either pole, disconnect the yellow wire, and connect the blue wire to the other pole. Disconnecting any wire will maintain the valve's current state.
Specs
- Valve typeBall Valves
- FeaturesEnergy Efficient
- Has written warrantyNo
- ManufacturerU.S. Solid
- ColorBlue
- ModelUSS-MSV00211
Current price is USD$42.39
Price when purchased online
- Free shipping
Free 90-day returns
How do you want your item?
Try 30 days of Free Shipping with Walmart+! Choose plan at checkout.
Columbus, 43215
Arrives by Mon, Feb 16
.Order within 2 hr 17 min
Sold by Joyfay International LLC
Fulfilled by Walmart
4.758064516129032 stars out of 5, based on 187 seller reviews(4.8)187 seller reviews
Free 90-day returns
Similar items you might like
Based on what customers bought
U. S. Solid IP65 Motorized Ball Valve 1 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing $39.99
4 optionsAvailable in additional 4 optionsSponsored$3999current price $39.99Options from $39.99 – $62.89U. S. Solid IP65 Motorized Ball Valve 1 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing
Save with
U. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Standard Port Brass AC 85-265V 2 Wire Auto Return Wiring Normally Closed Blue Casing $54.69
6 optionsAvailable in additional 6 optionsSponsored$5469current price $54.69More options from $49.99U. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Standard Port Brass AC 85-265V 2 Wire Auto Return Wiring Normally Closed Blue Casing
15 out of 5 Stars. 1 reviewsSave withShipping, arrives in 3+ daysU. S. Solid IP65 Motorized Ball Valve 1/4 in NPT Full Port Stainless Steel AC 85-265V 2 Wire Auto Return Wiring Normally Open Blue Casing $46.99
$4699current price $46.99U. S. Solid IP65 Motorized Ball Valve 1/4 in NPT Full Port Stainless Steel AC 85-265V 2 Wire Auto Return Wiring Normally Open Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid Motorized Ball Valve with 3 Signal Lights, 3/4 inch, Brass, Normally Closed, Blue Casing $39.99
3 optionsAvailable in additional 3 options$3999current price $39.99More options from $36.99U. S. Solid Motorized Ball Valve with 3 Signal Lights, 3/4 inch, Brass, Normally Closed, Blue Casing
Shipping, arrives in 3+ daysU. S. Solid Motorized Ball Valve with 3 Signal Lights, 3/4 inch, Brass, Normally Closed, Black Casing $37.99
5 optionsAvailable in additional 5 options$3799current price $37.99More options from $33.99U. S. Solid Motorized Ball Valve with 3 Signal Lights, 3/4 inch, Brass, Normally Closed, Black Casing
Save withShipping, arrives in 3+ daysU.S. Solid 3/4" Ball Valve- 304 Stainless Steel Full Port, 1000 WOG, Heavy Duty, Corrosion-Resistant, Male NPT for Water, Oil, Gas,Industrial & Home Use $17.99
$1799current price $17.99U.S. Solid 3/4" Ball Valve- 304 Stainless Steel Full Port, 1000 WOG, Heavy Duty, Corrosion-Resistant, Male NPT for Water, Oil, Gas,Industrial & Home Use
Shipping, arrives in 3+ daysU.S. Solid 3/4" Ball Valve- Carbon Steel Full Port, 1000 WOG, Heavy Duty, Corrosion-Resistant, Female NPT for Water, Oil, Gas,Industrial & Home Use $18.99
$1899current price $18.99U.S. Solid 3/4" Ball Valve- Carbon Steel Full Port, 1000 WOG, Heavy Duty, Corrosion-Resistant, Female NPT for Water, Oil, Gas,Industrial & Home Use
Shipping, arrives in 3+ daysU. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel DC 9-24V 5 Wire Wiring Normally Closed Blue Casing $37.99
7 optionsAvailable in additional 7 options$3799current price $37.99Options from $37.99 – $61.99U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel DC 9-24V 5 Wire Wiring Normally Closed Blue Casing
Save withShipping, arrives in 3+ daysUsa Industrials Manual 2-Way Ball Valve,Socket,304 SS ZUSA-VLV-2 $42.13
$4213current price $42.13Usa Industrials Manual 2-Way Ball Valve,Socket,304 SS ZUSA-VLV-2
Usa Industrials Manual 2-Way Ball Valve,Socket,304 SS ZUSA-VLV-1 $41.39
$4139current price $41.39Usa Industrials Manual 2-Way Ball Valve,Socket,304 SS ZUSA-VLV-1
Shipping, arrives in 3+ daysU.S. Solid 1/2" Ball Valve- Carbon Steel Full Port, 1000 WOG, Heavy Duty, Corrosion-Resistant, Female NPT for Water, Oil, Gas,Industrial & Home Use $14.99
$1499current price $14.99U.S. Solid 1/2" Ball Valve- Carbon Steel Full Port, 1000 WOG, Heavy Duty, Corrosion-Resistant, Female NPT for Water, Oil, Gas,Industrial & Home Use
Shipping, arrives in 3+ daysU. S. Solid Motorized Ball Valve with 2 Signal Lights, 3/4 inch, Brass, Normally Closed, Blue Casing $38.99
3 optionsAvailable in additional 3 options$3899current price $38.99More options from $34.19U. S. Solid Motorized Ball Valve with 2 Signal Lights, 3/4 inch, Brass, Normally Closed, Blue Casing
Save withShipping, arrives in 3+ daysU.S. Solid 3-Way Manual Ball Valve 304 Stainless Steel 3/4 in Female NPT $27.99
3 optionsAvailable in additional 3 options$2799current price $27.99Options from $27.99 – $43.99U.S. Solid 3-Way Manual Ball Valve 304 Stainless Steel 3/4 in Female NPT
Shipping, arrives in 3+ daysU.S. Solid 1/2" Ball Valve- 304 Stainless Steel Full Port, 1000 WOG, Heavy Duty, Corrosion-Resistant, Male NPT for Water, Oil, Gas,Industrial & Home Use $13.89
$1389current price $13.89U.S. Solid 1/2" Ball Valve- 304 Stainless Steel Full Port, 1000 WOG, Heavy Duty, Corrosion-Resistant, Male NPT for Water, Oil, Gas,Industrial & Home Use
Shipping, arrives in 3+ daysU.S. Solid 2-Way Manual Ball Valve Brass 1/2 in Female NPT $7.99
22 optionsAvailable in additional 22 options$799current price $7.99Options from $7.99 – $51.99U.S. Solid 2-Way Manual Ball Valve Brass 1/2 in Female NPT
Shipping, arrives in 3+ daysU. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port UPVC AC/DC 9-36V 2 Wire Auto Return Wiring Normally Open Blue Casing $38.99
3 optionsAvailable in additional 3 options$3899current price $38.99Options from $38.99 – $48.99U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port UPVC AC/DC 9-36V 2 Wire Auto Return Wiring Normally Open Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve with US Plug 1/2 in NPT Full Port Stainless Steel AC 110V 2 Wire Auto Return Wiring Normally Closed Blue Casing $68.99
12 optionsAvailable in additional 12 options$6899current price $68.99Options from $68.99 – $215.99U. S. Solid IP65 Motorized Ball Valve with US Plug 1/2 in NPT Full Port Stainless Steel AC 110V 2 Wire Auto Return Wiring Normally Closed Blue Casing
Save withShipping, arrives in 3+ daysU. S. Solid 3 Way L Type IP67 Motorized Ball Valve with Hand Wheel 3/8 in NPT Standard Port Brass AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing $75.99
8 optionsAvailable in additional 8 options$7599current price $75.99Options from $75.99 – $129.99U. S. Solid 3 Way L Type IP67 Motorized Ball Valve with Hand Wheel 3/8 in NPT Standard Port Brass AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Standard Port UPVC AC 110V 2 Wire Auto Return Wiring Normally Closed Blue Casing $48.92
5 optionsAvailable in additional 5 options$4892current price $48.92Options from $48.92 – $72.99U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Standard Port UPVC AC 110V 2 Wire Auto Return Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing $47.39
6 optionsAvailable in additional 6 options$4739current price $47.39More options from $39.98U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing
Shipping, arrives in 3+ days
About this item
Product details
Motorized ball valves provide an energy-efficient option compared to solenoid valves, particularly for extended periods of operation. They primarily use power when opening and closing, with minimal consumption once fully open. This enables continuous operation without the concern of overheating or premature failure. We recommend using Teflon tape to ensure the sealing of NPT threads.
Parameters
Brand: U.S. SOLID
Model: USS-MSV00211
Valve Material: Stainless Steel
Is Drinking Water Available?: Yes
Seal: PTFE
Voltage: AC/DC 9-24V
Port Size: 1/2" NPT Full Port
Flow Aperture: 15mm (0.59in)
Maximum Torque: 2 N·m
Maximum Power: 2 W
Open/Close Time: 3-5 Seconds
Life Expectancy: 80,000 to 100,000 Cycles
IP Rating (Casing): IP65
Maximum Pressure: 1.0 MPa (145 psi)
Medium Temperature: 0℃ to 90℃ (32℉ to 194℉)
Ambient Temperature: -10℃ to 40℃ (14℉ to 104℉)
Wiring: 3 Wire 1 Way
Casing Color: Blue
Parameters
Brand: U.S. SOLID
Model: USS-MSV00211
Valve Material: Stainless Steel
Is Drinking Water Available?: Yes
Seal: PTFE
Voltage: AC/DC 9-24V
Port Size: 1/2" NPT Full Port
Flow Aperture: 15mm (0.59in)
Maximum Torque: 2 N·m
Maximum Power: 2 W
Open/Close Time: 3-5 Seconds
Life Expectancy: 80,000 to 100,000 Cycles
IP Rating (Casing): IP65
Maximum Pressure: 1.0 MPa (145 psi)
Medium Temperature: 0℃ to 90℃ (32℉ to 194℉)
Ambient Temperature: -10℃ to 40℃ (14℉ to 104℉)
Wiring: 3 Wire 1 Way
Casing Color: Blue
- IP65 Rating: protection from water jets from any direction. If permanently installed outdoors, it is advisable to place it in a shaded area or in a protective enclosure to prevent prolonged exposure to rainwater.
- Full port. The internal diameter of the valve matches that of the connected pipe.
- 3 Wire 1 way wiring. DC: Connect both the red and yellow wires to the positive pole(+), and the blue wire to the negative pole(-) to open the valve. To close the valve, keep only the red wire connected to the positive pole(+), disconnect the yellow wire, and connect the blue wire to the negative pole(-). Disconnecting any wire will maintain the valve's current state. AC: Connect both the red and yellow wires to either pole, and the blue wire to the other pole to open the valve. To close the valve, keep only the red wire connected to either pole, disconnect the yellow wire, and connect the blue wire to the other pole. Disconnecting any wire will maintain the valve's current state.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Valve type
Ball Valves
Size
1/2 in
Material
Stainless Steel
Brand
U.S. Solid
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
