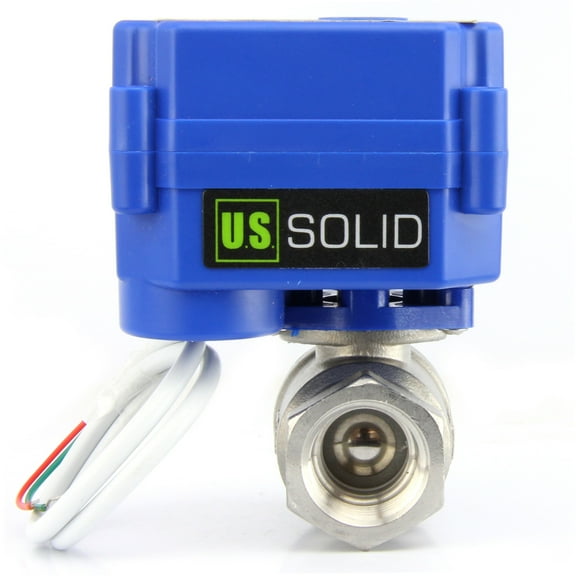

Hero image 0 of U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing, 0 of 6
U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing
(No ratings yet)
U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue CasingU S Solid Motorized Ball Valve 1 2 inch Stainless Steel 9 24V AC DC 2 Wire Auto Return SetupU S Solid Motorized Ball Valve 1 inch Brass AC DC 9 24V 2 Wire Auto Return SetupU S Solid Motorized Ball Valve 3 4 inch Brass AC DC 9 24V 2 Wire Auto Return SetupU S Solid Motorized Ball Valve 3 4 inch Stainless Steel 9 24V AC DC 2 Wire Auto Return SetupU S Solid Motorized Ball Valve 1 4 inch Stainless Steel AC DC 9 24V 2 Wire Auto Return SetupU S Solid Motorized Ball Valve 1 2 inch Brass 9 24V AC DC Normally Open Full Port 2 Wire Auto Return Setup
Material:Stainless Steel
Size:1/2 in
Key item features
- IP65 Rating: protection from water jets from any direction. If permanently installed outdoors, it is advisable to place it in a shaded area or in a protective enclosure to prevent prolonged exposure to rainwater.
- Full port. The internal diameter of the valve matches that of the connected pipe.
- Normally open. It remains open without power and closes when energized, blocking fluid or gas flow.
- 2 Wire auto return wiring. DC: Connect the red wire to the positive pole(+) and the black wire to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. AC: Connect one wire to the positive pole(+) and the other to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. To ensure proper operation of the auto-reset function in case of power failure, it is necessary to power the equipment for approximately one minute for charging the capacitor in 2-wire-auto-return motorized ball valves.
Specs
- Valve typeBall Valves
- Has written warrantyNo
- ManufacturerU.S. Solid
- Assembled product dimensions (l x w x h)4.61 x 4.41 x 4.21 Inches
- ColorBlue
- Weight13.4 oz
Current price is USD$45.39
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives between Feb 6 - Feb 9
|
Sold and shipped by Joyfay International LLC
4.751381215469613 stars out of 5, based on 182 seller reviews(4.8)182 seller reviews
Free 30-day returns
Packaging note:
Ships in the manufacturer's original packaging, which may reveal the contents.
Similar items you might like
Based on what customers bought

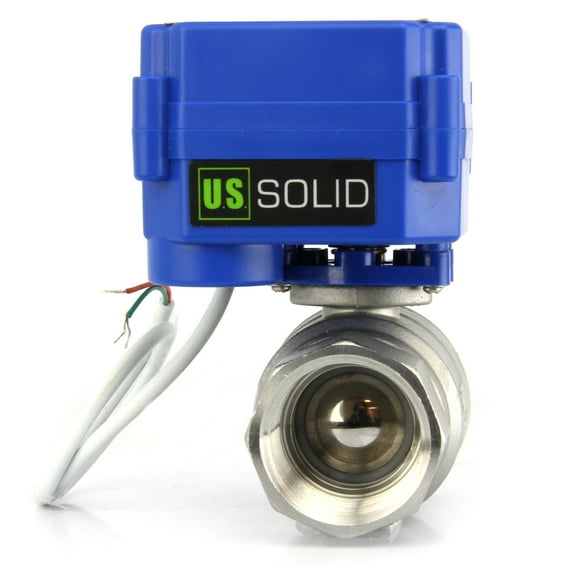

U. S. Solid IP65 Motorized Ball Valve 1 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing $62.89 Was $74.59
4 optionsAvailable in additional 4 optionsSponsoredNow$6289current price Now $62.89, Was $74.59$74.59More options from $39.99U. S. Solid IP65 Motorized Ball Valve 1 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing
Save with
Shipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 1 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing $39.99
4 optionsAvailable in additional 4 options$3999current price $39.99Options from $39.99 – $62.89U. S. Solid IP65 Motorized Ball Valve 1 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Open Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Standard Port Brass AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing $50.99
7 optionsAvailable in additional 7 optionsSponsored$5099current price $50.99More options from $34.69U. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Standard Port Brass AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel DC 9-24V 2 Wire Reverse Polarity Wiring Normally Closed Blue Casing $37.19
6 optionsAvailable in additional 6 options$3719current price $37.19Options from $37.19 – $49.99U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel DC 9-24V 2 Wire Reverse Polarity Wiring Normally Closed Blue Casing
15 out of 5 Stars. 1 reviewsSave withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port UPVC AC/DC 9-36V 2 Wire Auto Return Wiring Normally Open Blue Casing $38.99
3 optionsAvailable in additional 3 options$3899current price $38.99Options from $38.99 – $48.99U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port UPVC AC/DC 9-36V 2 Wire Auto Return Wiring Normally Open Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Full Port Stainless Steel AC 85-265V 2 Wire Auto Return Wiring Normally Closed Blue Casing $48.92
5 optionsAvailable in additional 5 options$4892current price $48.92Options from $48.92 – $72.99U. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Full Port Stainless Steel AC 85-265V 2 Wire Auto Return Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 1 in NPT Standard Port Stainless Steel AC 85-265V 2 Wire Auto Return Wiring Normally Closed Blue Casing $72.99
5 optionsAvailable in additional 5 optionsSponsored$7299current price $72.99More options from $48.92U. S. Solid IP65 Motorized Ball Valve 1 in NPT Standard Port Stainless Steel AC 85-265V 2 Wire Auto Return Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 1 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing $58.49
4 optionsAvailable in additional 4 optionsSponsored$5849current price $58.49More options from $42.69U. S. Solid IP65 Motorized Ball Valve 1 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid Motorized Ball Valve with 3 Signal Lights, 3/4 inch, Brass, Normally Closed, Blue Casing $39.99
3 optionsAvailable in additional 3 options$3999current price $39.99More options from $36.99U. S. Solid Motorized Ball Valve with 3 Signal Lights, 3/4 inch, Brass, Normally Closed, Blue Casing
Shipping, arrives in 3+ daysU. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port UPVC AC 110V 2 Wire Auto Return Wiring Normally Closed Blue Casing $47.09
3 optionsAvailable in additional 3 options$4709current price $47.09Options from $47.09 – $51.23U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port UPVC AC 110V 2 Wire Auto Return Wiring Normally Closed Blue Casing

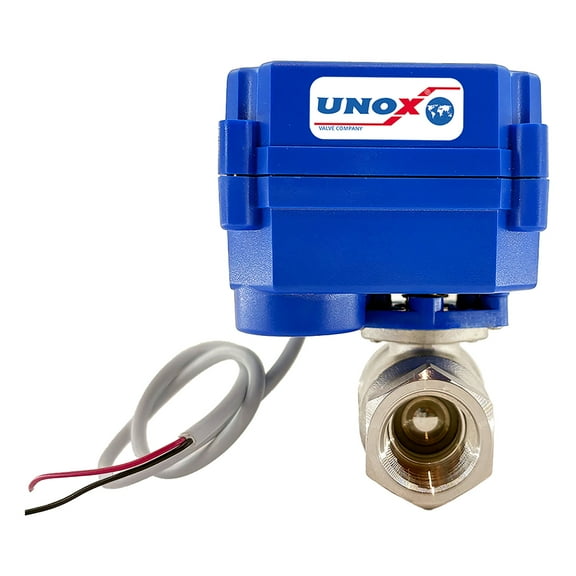

Save withShipping, arrives in 2 daysUNOX 1/2 Motorized Ball Valve Stainless Steel AISI304 - Electric Water Valve 9-24V AC/DC and 2 Wire Auto Return Setup - Automatic Main Water Electric Shut off Valve - Ball Valves $47.99
$4799current price $47.99UNOX 1/2 Motorized Ball Valve Stainless Steel AISI304 - Electric Water Valve 9-24V AC/DC and 2 Wire Auto Return Setup - Automatic Main Water Electric Shut off Valve - Ball Valves

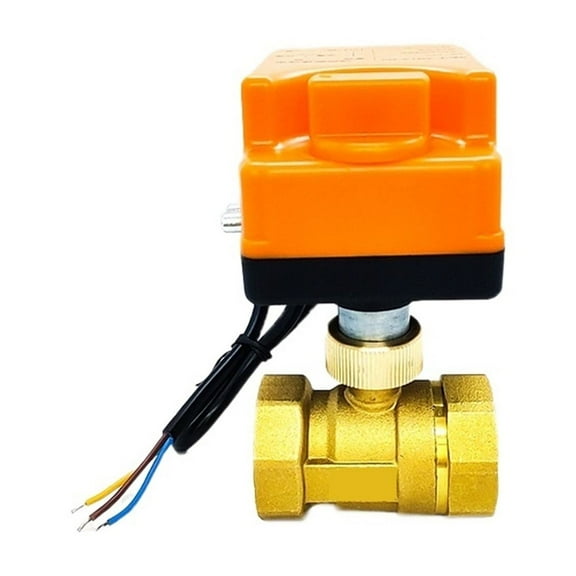

Shipping, arrives in 3+ days1" Motorized Ball Valve 3-Wire 2 Point Control Brass Electric Ball Valve With Manual Switch ,Convenient to Use $47.66
2 optionsAvailable in additional 2 options$4766current price $47.661" Motorized Ball Valve 3-Wire 2 Point Control Brass Electric Ball Valve With Manual Switch ,Convenient to Use
Shipping, arrives in 3+ daysU. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Standard Port Brass AC/DC 9-24V 3 Wire Wiring Normally Closed Blue Casing $38.99
6 optionsAvailable in additional 6 optionsSponsored$3899current price $38.99More options from $35.99U. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Standard Port Brass AC/DC 9-24V 3 Wire Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing $37.99 Was $44.59
7 optionsAvailable in additional 7 optionsSponsoredNow$3799current price Now $37.99, Was $44.59$44.59More options from $34.69U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve with Hand Wheel 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing $51.19
6 optionsAvailable in additional 6 options$5119current price $51.19More options from $42.99U. S. Solid IP65 Motorized Ball Valve with Hand Wheel 1/2 in NPT Full Port Stainless Steel AC/DC 9-24V 2 Wire Auto Return Wiring Normally Closed Blue Casing
15 out of 5 Stars. 1 reviewsSave withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Brass AC/DC 9-24V 3 Wire Wiring Normally Closed Blue Casing $39.99
6 optionsAvailable in additional 6 options$3999current price $39.99More options from $35.99U. S. Solid IP65 Motorized Ball Valve 1/2 in NPT Full Port Brass AC/DC 9-24V 3 Wire Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve with US Plug 1/2 in NPT Full Port Stainless Steel AC 110V 2 Wire Auto Return Wiring Normally Closed Blue Casing $68.99
12 optionsAvailable in additional 12 options$6899current price $68.99Options from $68.99 – $215.99U. S. Solid IP65 Motorized Ball Valve with US Plug 1/2 in NPT Full Port Stainless Steel AC 110V 2 Wire Auto Return Wiring Normally Closed Blue Casing
Save withShipping, arrives in 2 daysU.S. Solid Electric Solenoid Valve IP65 DC 12V Brass 1/4 inch $24.09
5 optionsAvailable in additional 5 options$2409current price $24.09Options from $24.09 – $47.99U.S. Solid Electric Solenoid Valve IP65 DC 12V Brass 1/4 inch
Save withShipping, arrives in 2 daysU. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Full Port Stainless Steel DC 9-24V 5 Wire Wiring Normally Closed Blue Casing $46.09
7 optionsAvailable in additional 7 optionsSponsored$4609current price $46.09More options from $37.99U. S. Solid IP65 Motorized Ball Valve 3/4 in NPT Full Port Stainless Steel DC 9-24V 5 Wire Wiring Normally Closed Blue Casing

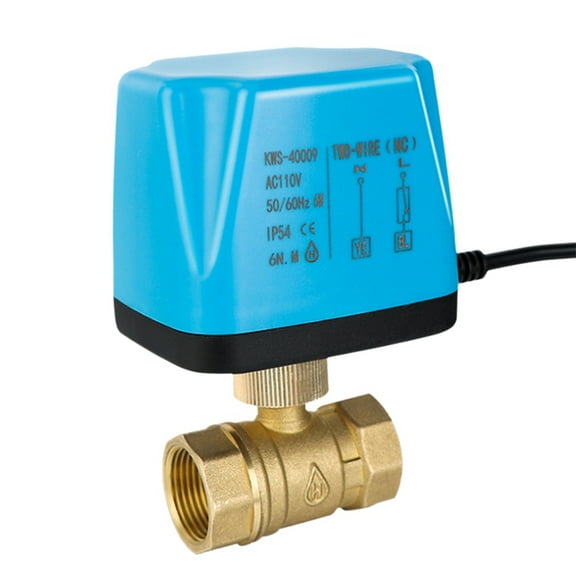

Save withShipping, arrives in 2 daysNormally Closed Motorized Ball Valve AC110V 2-Wire Brass Electric Solenoid Valve D G1296 $28.03
$2803current price $28.03Normally Closed Motorized Ball Valve AC110V 2-Wire Brass Electric Solenoid Valve D G1296
Shipping, arrives in 3+ days
About this item
Product details
Motorized ball valves provide an energy-efficient option compared to solenoid valves, particularly for extended periods of operation. They primarily use power when opening and closing, with minimal consumption once fully open. This enables continuous operation without the concern of overheating or premature failure. We recommend using Teflon tape to ensure the sealing of NPT threads.
Parameters
Brand: U.S. SOLID
Model: USS-MSV00071
Valve Material: Stainless Steel
Is Drinking Water Available?: Yes
Seal: PTFE
Voltage: AC/DC 9-24V
Port Size: 1/2" NPT Full Port
Flow Aperture: 15mm (0.59in)
Normally Closed/Normally Open: NO, Normally Open
Maximum Torque: 2 N·m
Maximum Power: 5 W
Open/Close Time: 3-5 Seconds
Life Expectancy: 80,000 to 100,000 Cycles
IP Rating (Casing): IP65
Maximum Pressure: 1.0 MPa (145 psi)
Medium Temperature: 0℃ to 90℃ (32℉ to 194℉)
Ambient Temperature: -10℃ to 40℃ (14℉ to 104℉)
Wiring: 2 Wire Auto Return
Casing Color: Blue
Parameters
Brand: U.S. SOLID
Model: USS-MSV00071
Valve Material: Stainless Steel
Is Drinking Water Available?: Yes
Seal: PTFE
Voltage: AC/DC 9-24V
Port Size: 1/2" NPT Full Port
Flow Aperture: 15mm (0.59in)
Normally Closed/Normally Open: NO, Normally Open
Maximum Torque: 2 N·m
Maximum Power: 5 W
Open/Close Time: 3-5 Seconds
Life Expectancy: 80,000 to 100,000 Cycles
IP Rating (Casing): IP65
Maximum Pressure: 1.0 MPa (145 psi)
Medium Temperature: 0℃ to 90℃ (32℉ to 194℉)
Ambient Temperature: -10℃ to 40℃ (14℉ to 104℉)
Wiring: 2 Wire Auto Return
Casing Color: Blue
- IP65 Rating: protection from water jets from any direction. If permanently installed outdoors, it is advisable to place it in a shaded area or in a protective enclosure to prevent prolonged exposure to rainwater.
- Full port. The internal diameter of the valve matches that of the connected pipe.
- Normally open. It remains open without power and closes when energized, blocking fluid or gas flow.
- 2 Wire auto return wiring. DC: Connect the red wire to the positive pole(+) and the black wire to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. AC: Connect one wire to the positive pole(+) and the other to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. To ensure proper operation of the auto-reset function in case of power failure, it is necessary to power the equipment for approximately one minute for charging the capacitor in 2-wire-auto-return motorized ball valves.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Valve type
Ball Valves
Size
1/2 in
Material
Stainless Steel
Brand
U.S. Solid
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Popular items in this category
Best selling items that customers love
DANSPEED 1-1/2" 1.5 inch Stainless steel Ball Valve Full Port, NPT Threaded,1000 PSI $9.99
9 optionsAvailable in additional 9 optionsSponsored$999current price $9.99More options from $7.99DANSPEED 1-1/2" 1.5 inch Stainless steel Ball Valve Full Port, NPT Threaded,1000 PSI
45 out of 5 Stars. 4 reviewsSave withShipping, arrives in 2 daysU.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Closed AC 24V Brass 1/2 inch $35.99
5 optionsAvailable in additional 5 optionsSponsored$3599current price $35.99Options from $35.99 – $69.99U.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Closed AC 24V Brass 1/2 inch
15 out of 5 Stars. 1 reviewsSave withShipping, arrives in 2 daysU.S. Solid 2” Motorized Ball Valve - Stainless Steel Electric Ball Valve with Full Port, 9-24V AC/DC, 2-wire Auto Return, Normally Closed $182.49
3 optionsAvailable in additional 3 options$18249current price $182.49More options from $137.99U.S. Solid 2” Motorized Ball Valve - Stainless Steel Electric Ball Valve with Full Port, 9-24V AC/DC, 2-wire Auto Return, Normally Closed
Shipping, arrives in 3+ daysU. S. Solid Motorized Ball Valve with 3 Signal Lights, 1/2 inch, Brass, Normally Open, Black Casing $26.99
5 optionsAvailable in additional 5 options$2699current price $26.99Options from $26.99 – $41.99U. S. Solid Motorized Ball Valve with 3 Signal Lights, 1/2 inch, Brass, Normally Open, Black Casing

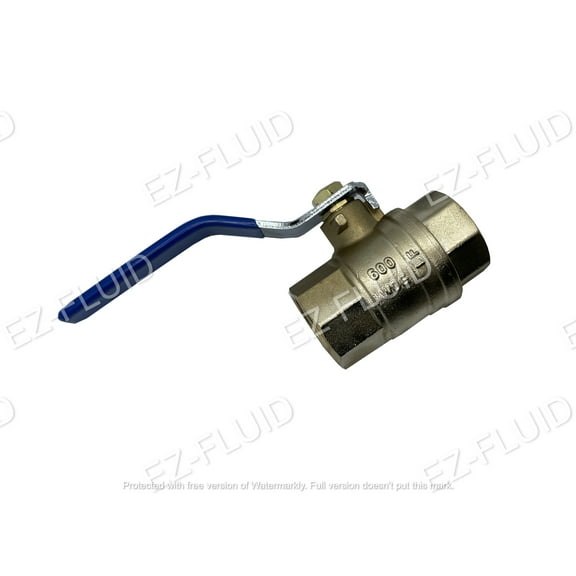

Save withShipping, arrives in 2 daysEZ-FLUID Plumbing 1/2" NPT Female Threaded IPS Ball Valve Full Port Water Stop Shut Off,Heavy Duty Lead Free Brass,Quarter Turn,Blue Handle (1-Pack) $9.99
$999current price $9.99EZ-FLUID Plumbing 1/2" NPT Female Threaded IPS Ball Valve Full Port Water Stop Shut Off,Heavy Duty Lead Free Brass,Quarter Turn,Blue Handle (1-Pack)
Shipping, arrives in 3+ daysU.S. Solid Electric Solenoid Valve Direct Acting VITON Seal Normally Closed DC 12V Brass 1/4 inch $34.99
3 optionsAvailable in additional 3 options$3499current price $34.99More options from $19.99U.S. Solid Electric Solenoid Valve Direct Acting VITON Seal Normally Closed DC 12V Brass 1/4 inch

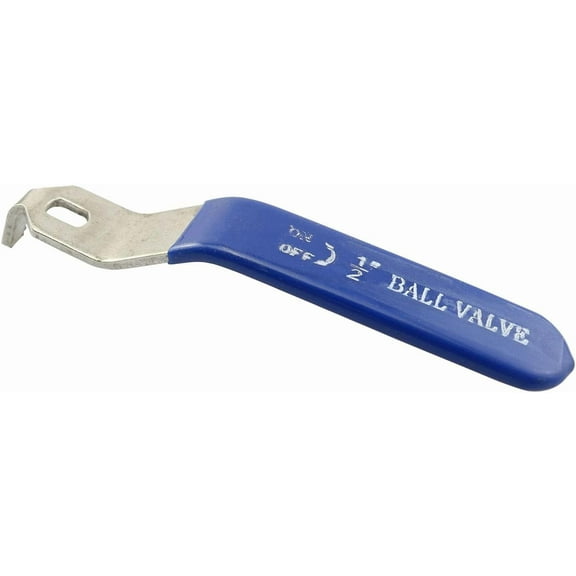

15 out of 5 Stars. 1 reviewsSave withStainless Steel Lever Handle Iron Chrome Plated Replacement Quarter Turn with Plastic Grip Blue for DN15 Ball Valve $8.79
$879current price $8.79Stainless Steel Lever Handle Iron Chrome Plated Replacement Quarter Turn with Plastic Grip Blue for DN15 Ball Valve
Save withShipping, arrives in 2 daysU.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Closed DC 12V Brass 1 inch $39.69
13 optionsAvailable in additional 13 options$3969current price $39.69More options from $31.99U.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Closed DC 12V Brass 1 inch
Save withShipping, arrives in 2 daysHandle, Praher, 2" Ball Valve, Blue $17.20
$1720current price $17.20Handle, Praher, 2" Ball Valve, Blue
15 out of 5 Stars. 1 reviewsShipping, arrives in 3+ daysU.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Closed DC 24V Brass 1/2 inch $32.29
5 optionsAvailable in additional 5 options$3229current price $32.29Options from $32.29 – $52.99U.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Closed DC 24V Brass 1/2 inch
Shipping, arrives in 3+ daysU.S. Solid Electric Solenoid Valve Direct Acting VITON Seal Normally Closed DC 24V Brass 1/4 inch $19.99
3 optionsAvailable in additional 3 options$1999current price $19.99Options from $19.99 – $35.99U.S. Solid Electric Solenoid Valve Direct Acting VITON Seal Normally Closed DC 24V Brass 1/4 inch
13 out of 5 Stars. 1 reviewsShipping, arrives in 3+ daysBall Valve 1/2 inch 304 Stainless Steel Mini Ball Valve Female and Male NPT Great for Shower Flow Control Valve $10.99
$1099current price $10.99Ball Valve 1/2 inch 304 Stainless Steel Mini Ball Valve Female and Male NPT Great for Shower Flow Control Valve
Shipping, arrives in 3+ daysU.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Closed AC 110V Stainless Steel 3/8 inch $43.99
13 optionsAvailable in additional 13 options$4399current price $43.99More options from $33.79U.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Closed AC 110V Stainless Steel 3/8 inch
11 out of 5 Stars. 1 reviewsSave withShipping, arrives in 2 days12 Pack 3/4inch Garden Hose Shut Off Valve- Standard Water Shutoff Valve Shut-Off Ball y13190 $9.24
$924current price $9.2412 Pack 3/4inch Garden Hose Shut Off Valve- Standard Water Shutoff Valve Shut-Off Ball y13190
Shipping, arrives in 3+ days3/4" Plumbing PEX Manifolds w/ 1/2" Pex Ball Valves - Radiant Heat Manifold - PEX Tubing Floor Heating Manifolds - Blue Handles (4 Loop Blue) $63.20
$6320current price $63.203/4" Plumbing PEX Manifolds w/ 1/2" Pex Ball Valves - Radiant Heat Manifold - PEX Tubing Floor Heating Manifolds - Blue Handles (4 Loop Blue)
Shipping, arrives in 3+ daysU.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Open AC 110V Stainless Steel 1/2 inch $47.99
5 optionsAvailable in additional 5 options$4799current price $47.99Options from $47.99 – $72.59U.S. Solid Electric Solenoid Valve Semi-direct Lift VITON Seal Normally Open AC 110V Stainless Steel 1/2 inch

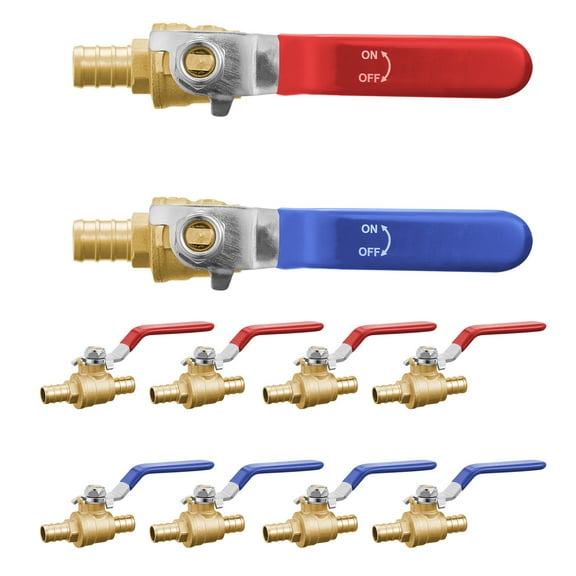

Save withShipping, arrives in 2 daysKFFKFF PEX Ball Valve Collection, Includes 10 Pieces, 1/2 inch PEX Brass Ball Valve, PEX Full Port Brass Ball Valves, Quarter Turn Hot (Red) Cold (Blue) PEX Full Port Ball Valve $26.00 Was $29.98
