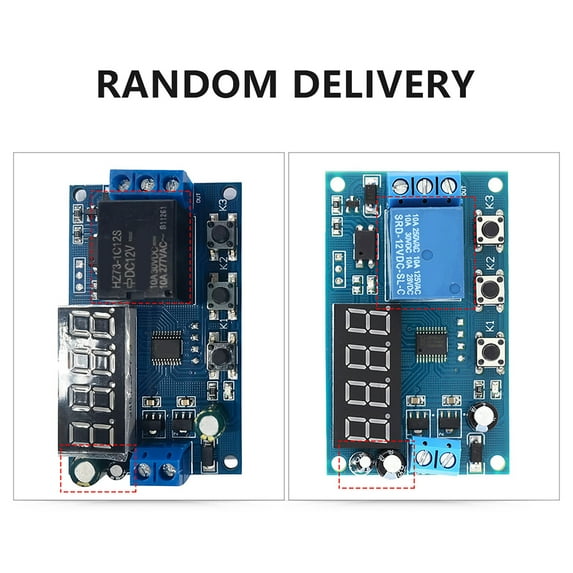

Timer Multifunction Delay Time Module Switch Control Relay Cycle Timer DC 12V

Timer Multifunction Delay Time Module Control Relay Cycle Timer DC 12V
Specification:
This is a delay timer module with high performance, which is convenient and practical for users.

Features:
New upgrades to simplify, meeting the users' needs.
Increase the power supply anti-reverse function.
LED digits display, intelligent control, time relay/delay function.
The use of opto isolated input and output, enhanced anti-jamming capability and consumption.
The last setting parameters can be memorized after power off.
Power saving function, one-key , can turn off the display.
To ensure stability, industrial grade PCB board.

Working modes selection: after power on, press K1 for 2s, later into the selection of modes: P1~3.
P-1: Monostable delay, a to relay, time is up, the relay disconnect;
P-2: A and countdown begins, T1 seconds after, the relay open T2 seconds, then close;
P-3: Open T1 seconds, disconnect T2 seconds, infinite . Users can set the relay time T1 and T2;

Specifications:
Display: LED Digital Display
Voltage: DC 12V
Timing RangeSettable: 0~.9 seconds; 0~9999 seconds; 0~9999 minutes
Relay Specification: DC 5~30V 10A or AC 220V 10A
Static Current: 20mA
Working Current: 50mA
Working Temperature: -40-85°C
PCB Size: 65 x 38 x 18mm / 2.56 x 1.5 x 0.7in L x W x H
PCB Weight: 26g / 0.93oz
Package Size: 11.5 x 7.5 x 2cm / 4.53 x 2.95 x 0.8in L x W x H

Package List:
1 x Delay Timer Module

Package List:
1 x Delay Timer Module
