Stenner Proportional Injection System

Stenner proprtional injection system provides reliable dosing for applications unable to connect directly to a well power supply.

Product Features

Proportional Injection

Provides injection based on water flow for applications unable to wire directly to the well pump.

Complete system

Flushable Prefilter
Water Meter
Pump Control Module
Fixed Output Pump
15 gallon solution tank

Pre-assembled Panel

Simplifies installation to inlet and outlet connections and provides a clean look.

Multiple Uses

Capable of injecting a wide range of solutions and can be used for numerous different applications - pH correction, bacteria treatment, and iron/manganese/hydrogen sulfide (rotten egg odor) oxidation.

Self-Prime

Self-priming up to 25 feet and will not vapor lock or lose prime

Multiple configurations

Available with different flow rates, operating ranges, and pulse rates to fit every situation.

110V

Comes with 110V power supply.

Product Description

Proportional Injection - Injection pumps are widely used for chlorine or soda ash injection and ideal for just about any chemical injection application. While stand alone pumps require direct wiring into the well switch, the proportional injection system can be used anywhere, expanding the treatment possibilities.

Self-priming up to 25 ft. - Stenner pumps utilize a 3-point roller assembly to "squeeze" the chemical through the pump tube. At any given time 2 points of the roller are in contact with the tube, creating a 2 point seal. This 3-point roller design allows the Stenner pumps to prime themselves up to 25 ft. In addition, the seal created prevents back flow and siphoning that are a common problem with diaphragm pumps. Say goodbye to vapor lock and the hassle of manual priming with a Stenner injection pump!

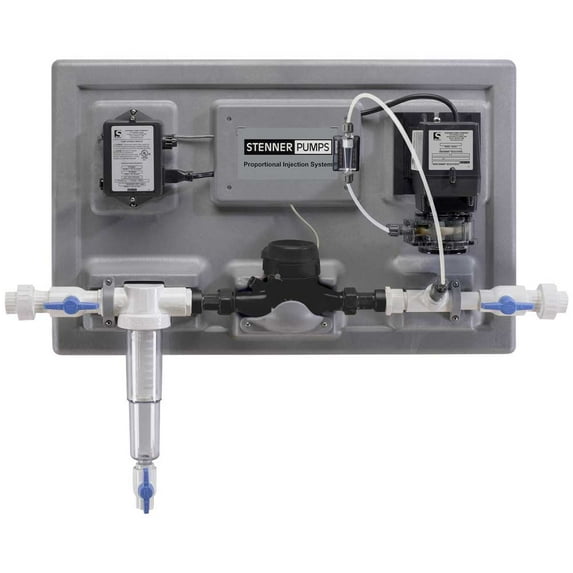

Pre-assembled panel - The proportional injection system has all major components pre-assembled and connected to a durable polyethylene panel for convenient wall mounting. The panel includes a section that contains the cords and wires, keeping everything neat and organized. NOTE: The included 15 gallon solution tank is not mounted.

Versatile Pump Tube Design - Stenner pumps use an FDA approved pump tube made of Santoprene to deliver the chemicals. This allows for use with a variety of chemicals and separates the rest of the pump components from the often damaging effects of the chemicals, extending pump life. In addition, the tube design makes changing easy and interchangeable tube sizes allow for easy modification of pump output capabilities.
