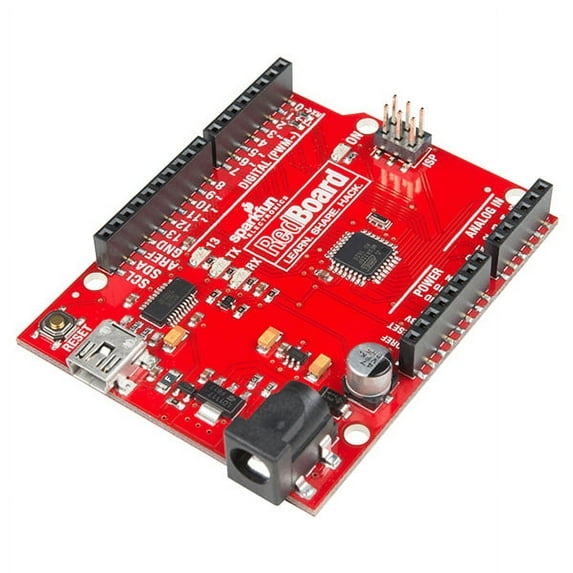

SparkFun RedBoard - Programmed with Arduino

(No ratings yet)

Key item features

ATmega328 microcontroller with Optiboot (UNO) Bootloader
Programmable over a USB Mini-B cable using the Arduino IDE
On-board power regulator handles 7 to 15VDC
Power the RedBoard over USB or through the barrel jack

Specs

Compatible models
Arduino UNO
Compatibility
Arduino
Model name
RedBoard
Brand
SparkFun
Color
Red
Has written warranty
No

Current price is $27.69

Price when purchased online

Out of stock

How do you want your item?

Out of stock

About this item

Product details

At SparkFun we use many Arduinos and we're always looking for the simplest, most stable one. Each board is a bit different and no one board has everything we want, so we decided to make our own version that combines all our favorite features. The SparkFun RedBoard combines the simplicity of the UNO's Optiboot bootloader (which is used in the Pro series), the stability of the FTDI (which we all missed after the Duemilanove was discontinued) and the R3 shield compatibility of the latest Arduino UNO R3.

The RedBoard can be programmed over a USB Mini-B cable using the Arduino IDE: Just plug in the board, select "Arduino UNO" from the board menu and you're ready to upload code. RedBoard has all of the hardware peripherals you know and love: 14 Digital I/O pins with 6 PWM pins, 6 Analog Inputs, UART, SPI and external interrupts. We've also broken out the SDA, SCL and IOREF pins that showed up on the UNO R3, so the RedBoard will be compatible with future shields. This version adds an SMD ISP header for use with shields.

You can power the RedBoard over USB or through the barrel jack. The on-board power regulator can handle anything from 7 to 15VDC. Check out the related items below for a compatible wall-wart power supply.

Get Started With the SparkFun RedBoard Guide (https://learn.sparkfun.com/tutorials/redboard-hookup-guide)

ATmega328 microcontroller with Optiboot (UNO) Bootloader
Programmable over a USB Mini-B cable using the Arduino IDE
On-board power regulator handles 7 to 15VDC
Power the RedBoard over USB or through the barrel jack
