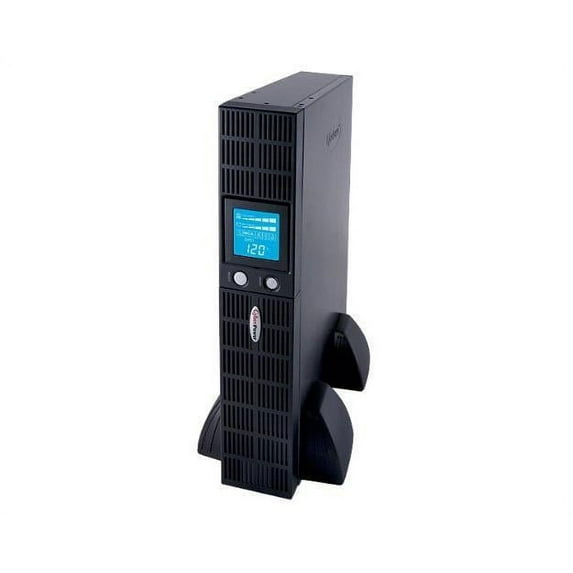

Hero image 0 of CyberPower Smart App Intelligent LCD OR2200LCDRTXL2U - UPS - 1650 Watt - 2190 VA, 0 of 3

CyberPower Smart App Intelligent LCD OR2200LCDRTXL2U - UPS - 1650 Watt - 2190 VA

(No ratings yet)

Key item features

Power On
Wiring Fault
Smart App LCD OR2200LCDRTXL2U 2190 VA Tower/Rack-mountable UPS
User's manual
Rackmount brackets
Stands, Telephone cable
Emergency Power Off cable
USB A+B type cable
UL1778
CSA C22.2 No 107.3
FCC/DoC Class B
Energy Saving : GreenPower UPS™ Bypass Technology
UPS Topology : Line Interactive
Battery Quantity : 4
Battery Size : 12 V / 9 Ah
Battery Type : Sealed Lead-Acid Battery
Extended Battery Module : BP48VP2U02
Hot Swappable : Yes
Replacement Battery Cartridge : RB1290X4B
Replacement Battery Cartridge Quantity : 1
Runtime at Full Load : 6 min
Runtime at Half Load : 15 min
Typical Recharge Time : 8 Hours
User Replaceable Battery : Yes
Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 47.75 (cm)
Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 18.8 (in)
Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 478 (mm)
Weight (kg) : 40.82
Weight (lb) : 90
Shipping Dimensions - (WxHxD) (cm) : 55.25 x 26.67 x 60.96 (cm)
Shipping - Dimensions (WxHxD, in) : 21.75 x 10.5 x 24.0 (in)
Shipping - Dimensions (WxHxD, mm) : 552.45 x 266.7 x 609.6 (mm)
Shipping - Weight (kg) : 40.82
Shipping - Weight (lb) : 90
Circuit Breaker : 20 A
Cord Length : 10 ft (3.0 m)
Input Frequency Range : 47 Hz - 63 Hz
Input Plug Type : NEMA 5-20P
Nominal Input Voltage : 120 VAC
Plug Style : Straight
Automatic Voltage Regulation : Single Boost
On AC WaveForm : Sine Wave
On Battery Frequency : 60 Hz ± 1%
On Battery Voltage : 120 VAC ± 5%
On Battery Waveform : Simulated Sine Wave
Outlets - Battery & Surge Protected : 8
Outlets - Total : 8
Outlet Type COMPUTED : 8 - NEMA 5-20R
Output Power Factor : 0.8
Overload Protection : Internal Circuitry Limiting
Typical Transfer Time : 4 ms
USB Charge Port : No
VA : 2100 VA
Watts : 1650 W
Coax Protection RG6 COMPUTED : 1 in
EMI/RFI Filtration COMPUTED : Yes
Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
Surge Suppression (Joules) : 2060 J
Audible Alarms : Battery Mode
HID Compliant USB Port : Yes
LCD : Multifunction LCD
LED Indicators : Power On
Management Cable : USB Cable
Serial Port : 1 Serial
SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
Software (Free Download) : PowerPanel® Business
Color : Black
Form Factor : Rack / Tower
Material of Construction : Metal
Rack Height : 2U
Operating Relative Humidity : 0 - 90 % (non-condensing)
Operating Temperature : 32 - 104 °F (0 - 40 °C)
Storage Temperature : 5 - 113 °F (-15 - 45 °C)
Environmental : RoHS Compliant
Safety : UL1778
CEG Amount : $300000
Connected Equipment Guarantee : Lifetime
Extended Warranty Option : WEXT5YR-U4B
Product Warranty : 3 Year Limited Warranty

Specs

Power rating
2190 VA
Run time
6 Minutes
Outlets
8
Brand
CyberPower
Battery capacity
9000 mAh
Watts
1650 W

Current price is $905.95

Price when purchased online

Free 30-day returns

Walmart Accident Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $59.00

4-Year Plan - $77.00

How do you want your item?

Columbus, 43215

Arrives by Tue, Feb 10

Shipping fee $37.25

Sold and shipped by Adorama

4.3416909620991255 stars out of 5, based on 1715 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

More seller options (5)

Starting from $944.05

About this item

Product details

General Information

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart LCD OR2200LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR2200LCDRTXL2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

More from the Manufacturer

Technical Information

AVR:	Yes
Plug/Connector Type:	NEMA 5-20P
Receptacle Type:	NEMA 5-20R
Receptacle Detail:	8 x NEMA 5-20R
Number of Battery & Surge Outlets:	8
Transfer Time:	4 ms
Dataline Protection:	RJ-11
Dataline Protection:	RG-6
Overload Protection:	Yes
Energy Saving:	GreenPower UPS™ Bypass Technology
Application/Usage:	Workstation
Application/Usage:	Server
Application/Usage:	Network Device
Application/Usage:	Telecommunication

Power Description

Load Capacity (VA):	2190 VA
Input Voltage:	120 V AC
Output Voltage:	120 V AC
Input Frequency:	63 Hz
Output Frequency:	60 Hz
Waveform Type:	Simulated Sine Wave

Management

Network Management:	SNMP Manageable
Alarm:	Battery Mode
Alarm:	Low Battery
Alarm:	Overload

Controls/Indicators

Status Indicators:

Power On
Wiring Fault

Interfaces/Ports

Serial Port:	Yes
USB (HID Compliant) Port:	Yes
EPO Port:	Yes

Battery Information

Number of Batteries:	4
Battery Characteristics:	Maintenance-free
Battery Chemistry:	Lead Acid
Battery Size:	12V
Battery Capacity:	9000 mAh
Backup/Run Time (Full Load):	6 Minute
Backup/Run Time (Half Load):	15 Minute
Typical Battery Recharge Time:	8 Hour
Replaceable Battery:	Yes

Environmental Conditions

Maximum Operating Temperature:

104°F (40°C)

Physical Characteristics

Color Family:	Black
Product Color:	Black
Form Factor:	Rack/Tower
Rack Height:	2U
Height:	3.5"
Width:	17"
Depth:	18.8"
Weight (Approximate):	90 lb

Miscellaneous

Package Contents:	Smart App LCD OR2200LCDRTXL2U 2190 VA Tower/Rack-mountable UPS User's manual Rackmount brackets Stands, Telephone cable Emergency Power Off cable USB A+B type cable
Certifications & Standards:	UL1778 CSA C22.2 No 107.3 FCC/DoC Class B
Additional Information:	Energy Saving : GreenPower UPS™ Bypass Technology UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U02 Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4B Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 6 min Runtime at Half Load : 15 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 47.75 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 18.8 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 478 (mm) Weight (kg) : 40.82 Weight (lb) : 90 Shipping Dimensions - (WxHxD) (cm) : 55.25 x 26.67 x 60.96 (cm) Shipping - Dimensions (WxHxD, in) : 21.75 x 10.5 x 24.0 (in) Shipping - Dimensions (WxHxD, mm) : 552.45 x 266.7 x 609.6 (mm) Shipping - Weight (kg) : 40.82 Shipping - Weight (lb) : 90 Circuit Breaker : 20 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA 5-20P Nominal Input Voltage : 120 VAC Plug Style : Straight Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-20R Output Power Factor : 0.8 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 2100 VA Watts : 1650 W Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 2060 J Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 2060 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty
Software Included:	PowerPanel Business Edition Software
Energy Star:	No
Country of Origin:	Philippines
Environmentally Friendly:	Yes
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:	3 Year
Directly Connected Equipment Guarantee:	$300000 Lifetime

Power On
Wiring Fault
Smart App LCD OR2200LCDRTXL2U 2190 VA Tower/Rack-mountable UPS
User's manual
Rackmount brackets
Stands, Telephone cable
Emergency Power Off cable
USB A+B type cable
UL1778
CSA C22.2 No 107.3
FCC/DoC Class B
Energy Saving : GreenPower UPS™ Bypass Technology
UPS Topology : Line Interactive
Battery Quantity : 4
Battery Size : 12 V / 9 Ah
Battery Type : Sealed Lead-Acid Battery
Extended Battery Module : BP48VP2U02
Hot Swappable : Yes
Replacement Battery Cartridge : RB1290X4B
Replacement Battery Cartridge Quantity : 1
Runtime at Full Load : 6 min
Runtime at Half Load : 15 min
Typical Recharge Time : 8 Hours
User Replaceable Battery : Yes
Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 47.75 (cm)
Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 18.8 (in)
Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 478 (mm)
Weight (kg) : 40.82
Weight (lb) : 90
Shipping Dimensions - (WxHxD) (cm) : 55.25 x 26.67 x 60.96 (cm)
Shipping - Dimensions (WxHxD, in) : 21.75 x 10.5 x 24.0 (in)
Shipping - Dimensions (WxHxD, mm) : 552.45 x 266.7 x 609.6 (mm)
Shipping - Weight (kg) : 40.82
Shipping - Weight (lb) : 90
Circuit Breaker : 20 A
Cord Length : 10 ft (3.0 m)
Input Frequency Range : 47 Hz - 63 Hz
Input Plug Type : NEMA 5-20P
Nominal Input Voltage : 120 VAC
Plug Style : Straight
Automatic Voltage Regulation : Single Boost
On AC WaveForm : Sine Wave
On Battery Frequency : 60 Hz ± 1%
On Battery Voltage : 120 VAC ± 5%
On Battery Waveform : Simulated Sine Wave
Outlets - Battery & Surge Protected : 8
Outlets - Total : 8
Outlet Type COMPUTED : 8 - NEMA 5-20R
Output Power Factor : 0.8
Overload Protection : Internal Circuitry Limiting
Typical Transfer Time : 4 ms
USB Charge Port : No
VA : 2100 VA
Watts : 1650 W
Coax Protection RG6 COMPUTED : 1 in
EMI/RFI Filtration COMPUTED : Yes
Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
Surge Suppression (Joules) : 2060 J
Audible Alarms : Battery Mode
HID Compliant USB Port : Yes
LCD : Multifunction LCD
LED Indicators : Power On
Management Cable : USB Cable
Serial Port : 1 Serial
SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
Software (Free Download) : PowerPanel® Business
Color : Black
Form Factor : Rack / Tower
Material of Construction : Metal
Rack Height : 2U
Operating Relative Humidity : 0 - 90 % (non-condensing)
Operating Temperature : 32 - 104 °F (0 - 40 °C)
Storage Temperature : 5 - 113 °F (-15 - 45 °C)
Environmental : RoHS Compliant
Safety : UL1778
CEG Amount : $300000
Connected Equipment Guarantee : Lifetime
Extended Warranty Option : WEXT5YR-U4B
Product Warranty : 3 Year Limited Warranty
