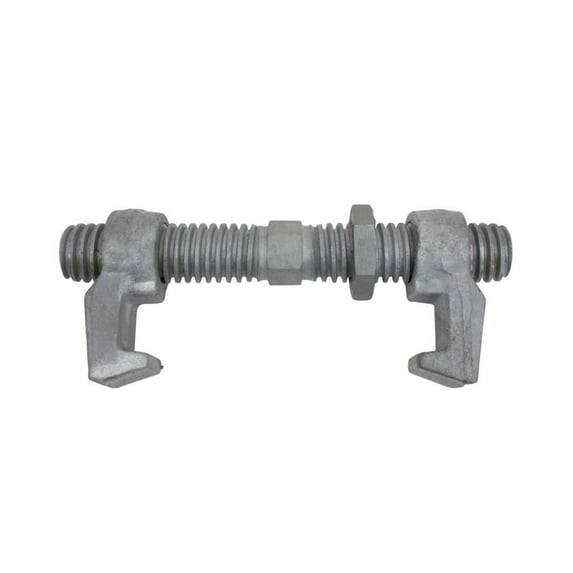

Shipping Container Bridge Fitting

Shipping container bridge clamps are used to connect shipping containers together horizontally. They are primarily used in the shipping industry to ensure safe transport of shipping containers on ship but are widely used when two shipping containers need to be securely connected together horizontally.

Specifications:

• Materials: High Quality Casting Steel
• Surface Treatment: Hot Dip Galvanized
• Length: 260 mm
• Weight: 6.6 Lbs
• Breaking Capacity : 100 KN (22,480 Lbs)
• Length: 10.24 inch

Max Separation:

• Container Top Use: 5 inch
• Side Bottom Hole Use: 4 inch
• Side Top Hole Use: 4.75 inch

• CONNECT SHIPPING CONTAINERS SIDE BY SIDE. When transporting shipping containers, especially on a barge, it’s easier to keep them from tipping or falling if they’re lashed together. Fortunately, steel bridge fittings can do the job. These heavy-duty fittings keep shipping containers together, combining their weight so they’re harder to move, spill, or tip in transit.

• STACK MULTIPLE CONTAINERS. Shipping containers can be stacked vertically, but require a bridge to do so safely. Maximize your space when you haul shipping containers by using a steel bridge to stack them vertically.

• HIGH-QUALITY CASTING STEEL. Bridge fittings are molded from molten steel in high-heat castings to create a single, strong, viable object. There are no points of connection or fusion within a steel bridge fitting.

• CORROSION RESISTANT. The heavy-duty casting steel bridge is galvanized in a coating of zinc with a hot dip. The zinc coating resists rust and other sources of chemically-based corrosion damage.

• WORKING LOAD LIMIT OVER 3.7 TONS! Work with the heaviest shipping containers in confidence: this bridge fitting can handle 7,493 lbs with ease. It’s got a breaking strength of 22,480 lbs! A shipping container that’s too heavy for this bridge would be rare indeed.

• EASILY CONNECT AND DISCONNECT CONTAINERS. The bridge fittings’ unique twist-lock design makes it easy to connect and disconnect containers when the time is right.
