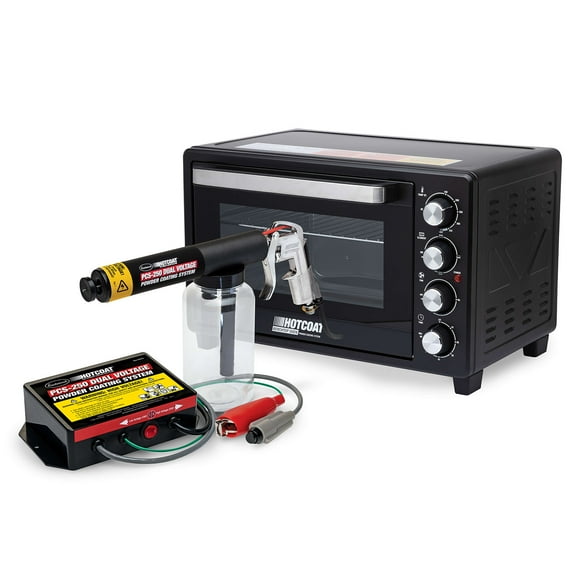

Eastwood HotCoat® PCS-250 Powder Coating System and Benchtop Oven Kit

PCS-250 Powder Coating Gun

The Eastwood PCS-250 Dual-Voltage HotCoat™ Powder Coating Gun gives you complete coverage from tight areas to large surfaces while operating on standard 120v household current. This innovative system will allow you to achieve the benefits of powder coating small parts instead of coating them with paint. This new and improved dual-voltage system gives you the capability to coat small areas using the low 15kv setting or coat large areas using the high-voltage setting 25kv. All you need is a compressed air source (5-10 PSI from a portable tank with a regulator or a compressor) to power your gun, an electric oven or toaster oven to cure the finish and a well-ventilated workspace in which to do your coating. This new and improved gun features color-coded cabling, larger ground clamp, increased trigger room and a clear bottle so you can see the powder color and fluidizing action.

Hotcoat Benchtop Powder Coating Oven

The Eastwood Hotcoat Benchtop Powder Coating Oven combines generous internal volume in a convenient, compact package with big oven features.

This oven has selectable upper and lower Heating Elements, and air Circulation Fan allow optimum control of heat distribution inside the Oven. The Oven Door window presents a convenient view of parts during the critical “flow-out” stage, enabling proper setting of the built-in Timer for the desired cure time. Couple this oven with any of Eastwood’s HotCoat Powder Coating Guns and start coating brackets, housings, and other small to medium-sized parts right in your home shop or garage.

PCS-250 Specifications

15KV/25KV dual voltage output
New and improved ground clamp provides a better ground
Color coordinated cabling for easier setup
New clear bottle makes it easy to see powder level and fluidizing action
Additional 1/2" of trigger room makes it easier and more comfortable to use

Powder Coating Oven Specifications

Electrical Rating: 120V / 50/60Hz / 1 Ph
Heating Power: 1600W
Heating Elements: Top: 2x 400W / Bottom: 2x 400W
Minimum Ambient Temperature: 50°F
Oven Chamber Temperature Range: 150 - 400°F
Timer Range: 0-60 Minutes
Circulation Fan: Yes
Rack Levels: (Top / Middle / Bottom)
Internal Volume (W x D x H): 15.12" x 12.83" x 10.71" (384 x 326 x 272mm) 1.2 ft3 (34L)
Power Cord Length: 31.5" (0.80m)
Overall Dimensions: 20.55" x 15.47" x 13.19" (522 x 393 x 335mm)
Weight: 14.6 lbs (6.62kg)
Certification: ELT
Product Weight: 8.2 lbs.
