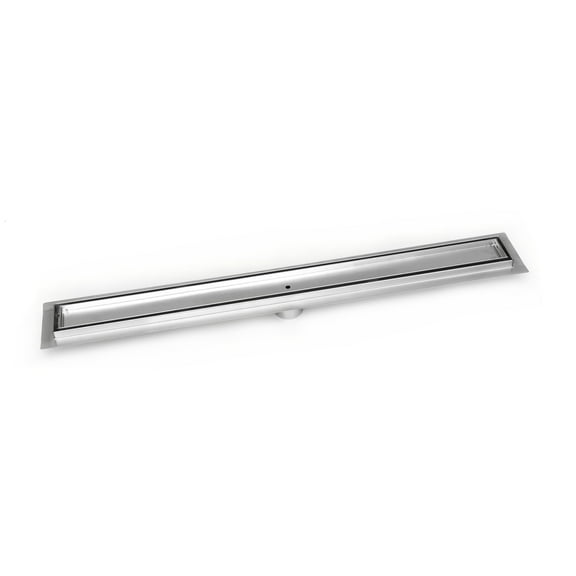

SereneDrains 304 Stainless Steel 24 Inch Brushed Nickel Linear Shower Drain Kit Linear Shower Drains for Tile Floor Long Hair Catcher Strainer Grate Cover Bathroom

SereneDrains Linear Shower Drains - Brushed Stainless Steel.

Complete Set: Drain Channel Body and Grate, Stainless Steel Hair Trap, Rubber Fitting, Lifting Hook, Waterproofing Membrane Sheet to place around the drain flange (not required but included).

Available Sizes (Approximate Dimensions)

Length 16" (400mm), Intake 8.11 sq. in.
Length 24" (600mm), Intake 12.59 sq. in.
Length 30" (762mm), Intake 16.86 sq. in.
Length 35.43" (900mm), Intake 20.02 sq. in.
Length 39.37" (1000mm), Intake 22.35 sq. in.
Length 47.25" (1200mm), Intake 26.68 sq. in.
Length 59.05" (1500mm), Intake 34.26 sq. in.

Features

- High Quality Materials: The Linear Shower Drain is made of 16 Gauge SS304 Stainless Steel Flange and Channel.Brushed Steel Finish protects the Linear Shower Drain from corrosion & rust.
- Durable, Solid and Smooth: The frame is rounded (folded, not welded). This creates a frame twice as strong and gives the Linear Shower Drain a smooth touch to the feet. No plastic parts.
- Water and Leak Proof: The Flange of the Shower Floor Drain is designed for use with all waterproofing materials such as: "Hot-Mop", Liquid membranes, Sheet Membranes, Vinyl waterproofing etc.. Bodies are fully welded and leak tested prior to dispatch.
- Easy Installation: The Shower Drain doesn’t have leveling feet. This is much more stable and makes installation easy by simply allowing you to rest the Flange on the floor edge.
- Wheelchair access (ADA Compliant) & Barrier-free showers.

Technical

- Channel width: 2 3/4" (70 mm).
- Flow rate: at entrance to shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
- Compatible with tiles up to 10mm depth (14mm lip).
