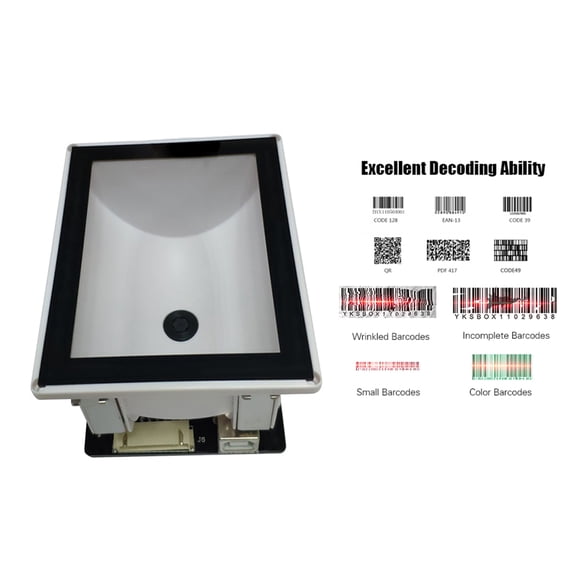

Scanner 2D/QR/1D Embedded Scanner Module Bar Code Scanner Scan Engine 960 X 680 COMS With USB Interface

Scanner 2D/QR/1D Embedded Scanner Module Bar Scanner Scan Engine 960 x 680 COMS with USB Interface
Specification:
This Embedded Scanner Module supports reading1D/2D barcodes on paper/ film/ screen quickly and accurately. And with pecialized decoding software algorithm, it supports secondary development.

Features:
Professional barcode scanner module, supports 1D/2D barcodes on paper/ film/ screen.
960 x 680 coms sensor & prominent decoding capability, scan all kinds of barcodes quickly and accurately.
decoding software algorithm, supports secondary development.
Atomizing light distribution device, provides soft lighting and eye care.
Plug and use, no driver required.
Dust-proof and shockproof, service life.
Wide-range in application: access control machine, self-service vending machine, industrial production lines, intelligent express cabinet, self-service store, check-in machine, bank counter machine, etc.

Specifications:
Color: White
Material: Plastic
Interface Type: USB, RS232 Optional
Picture Sensor: 960 x 680 COMS
Scanning Speed: 1300 times/S
Scanning Angle: Horizontal:72°, Vertical:82°, Rotated: 360°
Decode Accuracy: 39 6.6mil
Decoding Capacity: EAN-8, EAN-13, UPC-A, UPC-E, 39, 93, 128, EAN128, Codebar, industrial 2 of 5, Interleave 2 of 5, 2 of 5, MSL, PDF417, MicroQR, Datamxtrix, QR, GS1, Aztec, etc.
Available: 1D,2D on paper/ film/ cellphone screen
Symbol Contrast: 20%
Secondary Development: support, through the serial port instruction implementation
Indicator Light: Blue & Red Led
Buzzer: Start tips, decoding success tips
Prompt Way:buzzer and Red& Blue LED
Drop: Design to withstand 1.5m drops to concrete 5 times
Environmental Sealing: IP54
Working Temperature: -20°C-55°C
Working Humidity:5% to 95% Non-condensed
Compatible System: , , IOS,
Item Size: 7.5 x 6.5 x 6.5cm/ 2.9 x 2.5 x 2.5in
Item Weight: 97g/ 3.4oz

Package List:
1 x Scanner
1 x USB Cable

Package List:
1 x Scanner
1 x USB Cable
