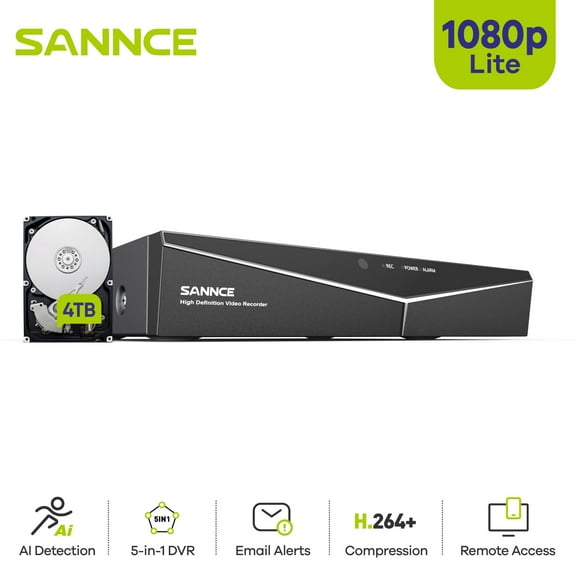

SANNCE 16 Channel CCTV DVR With 4TB HDD, 1080P Hybrid 5-in-1 Security Camera Recorder, Supports 2MP TVI AHD CVI CVBS Analog IP Surveillance Cameras, Remote Access, Motion Alert

Product Details：

". Support 16CH 1080N definition encoding

. Support AHD, TVI,CVI, CVBS, IP video input

. HDMI/VGA simultaneous video output

. 1 SATA (Up to 8TB)

. 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port

. Automatic networking support, a key to add equipment

. Support alarm information push to phone

. Support remote access, support ARSP

. Mobile phone remote monitoring (iOS, Android)

. Support Multi browser access，VMS PC client"

Specifications:

DVR:

Codec: H.264+

Video input: 16*BNC

HDMI output: 1*HDMI (MAX:1080P)

VGA output: 1*VGA (MAX:1080P)

Audio I/O: 2/1

Encode: 16*1080N@15fps

Decode: 16*1080N@15fps

Multi-mode: Analog: 16*1080N@15fps;

Hybird: 16*1080N@15fps(analog)+4*1080P

IP: 16*1080P；8*5MP

Playback:16CH (Analog mode)

Compression: G.711a

Intercom: Support

Hard Drive:

HDD: 1*SATA interface

HDD Capacity: Up to 8TB Capacity

Management:

Record mode: Manual>Motion detection>Schedule

Inquire mode: Inquire by Time/Calendar/Event/Channel

Storage mode: Sata HDD

Backup: Network, USB storage

External Interface:

Ethernet port: 1*10/100Mbps Ethernet port, RJ45 port

Alarm I/O: 0/0

PTZ control: 1*RS485, Support for multiple PTZ protocol

USB Port: 2*USB2.0 ports

General:

Power supply: 12V/2A

Consumption: <10W(Without HDD）

Temperature: 0 ℃ - + 55 ℃

Humidity: 10% -90% RH

Dimension: 255(L)* 236mm(W)* 44mm(H)

Weight: Around 1KG

Packaging Contents:

DVR: 1

USB Mouse: 1

Power Adapter: 1

Mounting Screws Bag: 1

User's Manual For DVR: 1

Features: 2MP

Brand: SANNCE

Manufacturer Part Number: SU-DT61BR000

Assembled Product Weight: 25 lb
