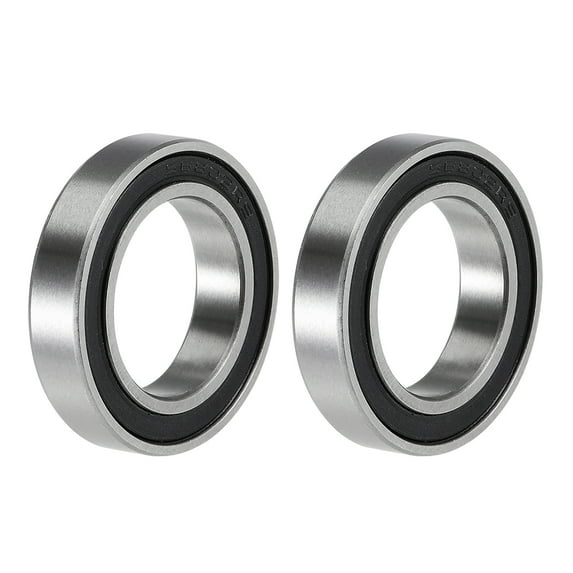

S6802-2RS Deep Groove Ball Bearings 15mm x 24mm x 5mm Double Sealed Stainless Steel 440C 2pcs

NOTE：

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.


Selecting Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:
Model: S6802-2RS
Seal Type: Double Sealed
Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)
Cage Material: 304 Stainless Steel (0Cr18Ni9)
Inner Diameter (d): 15mm
Outer Diameter (D): 24mm
Thickness (B): 5mm
Dynamic Load Rating (Cr): 1860N
Static Load Rating (Cor): 1130N
Limiting Speed (Oil): 27900rpm
Accuracy Class: P0 (ABEC1)
Noise Level: Z2
Number of Pack: 2pcs
